7

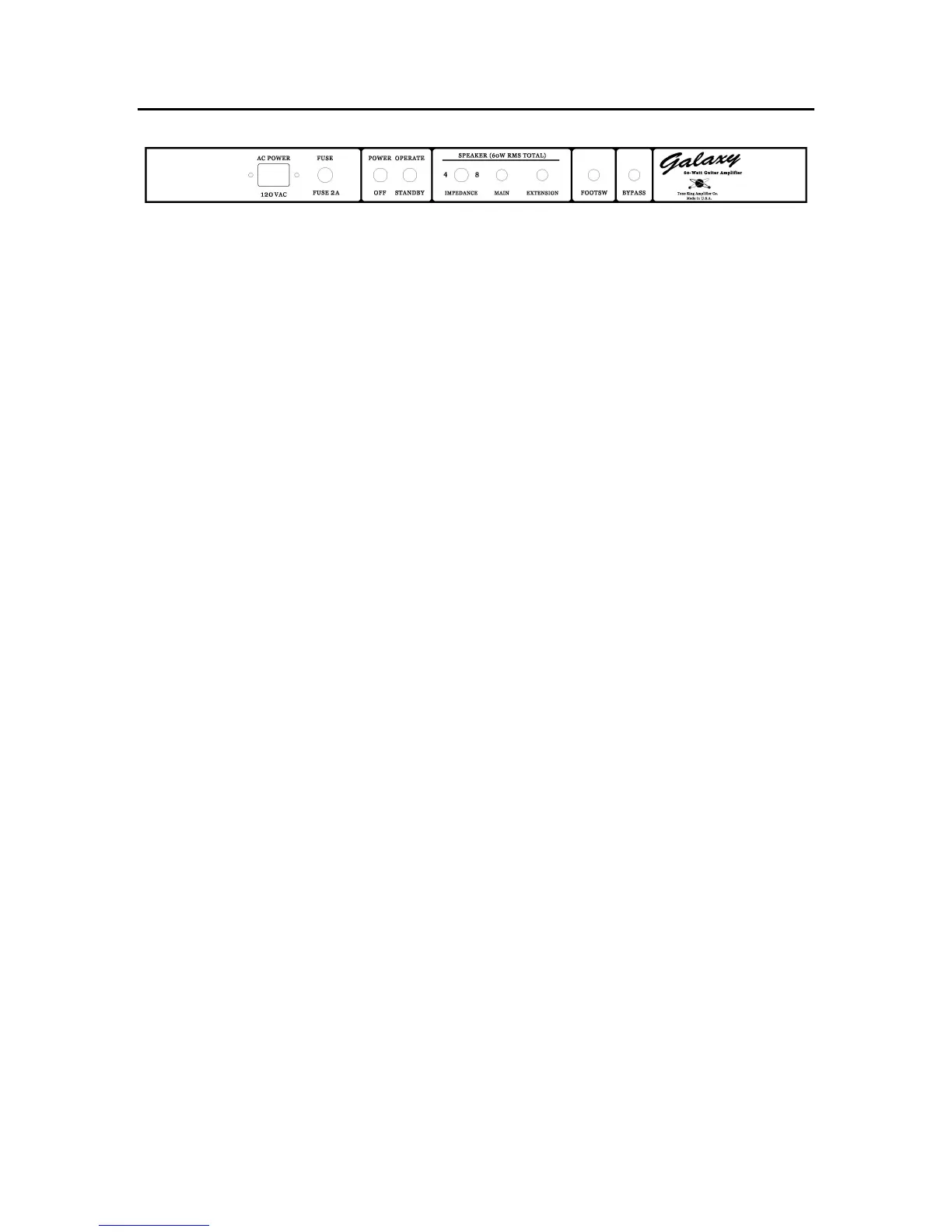

2. Back Panel Controls
2. Back Panel Controls2. Back Panel Controls
2. Back Panel Controls
AC Power
AC PowerAC Power
AC Power
Always use a grounded AC cord, and make sure that a proper ground connection is
supplied to the amp. Never attempt to lift or defeat the ground connection to the amp.
Fuse
FuseFuse
Fuse
Although the markings on the back panel indicate a 2A fuse, you should use a
standard 3A slo-blo fuse (style 3AG).
Power Switch, Standby Switch
Power Switch, Standby SwitchPower Switch, Standby Switch
Power Switch, Standby Switch
When powering up the amp, you should start with both the Power and Standby
switches in the "off" position.
First, turn on the Power switch. This will apply power only to the tube filaments and
the low-voltage circuitry.
After turning on the Power switch, allow the tubes to warm up for about 1 minute, then
turn on the Standby switch.
The power-down sequence is not as important as the power-up sequence. When
turning the amp off, you may turn Power off before Standby, or turn Standby off before
Power, or turn them both off at the same time.
Footswitch
FootswitchFootswitch
Footswitch
Connect the footswitch to the amp with the supplied cable, or with any standard ¼”
TRS (Stereo) -to- ¼” TRS (Stereo) cable.
The footwitch allows you to control both the preamp channel selection and the tremolo
on/off. LEDs indicate the current switching status, as follows:
Channel switch: LED on = Lead channel
Tremolo switch: LED on = Tremolo on
When using the footswitch, make sure to set the front panel Channel switch to the
Rhythm position.
