TOORX BRX EASY - Page 10

11

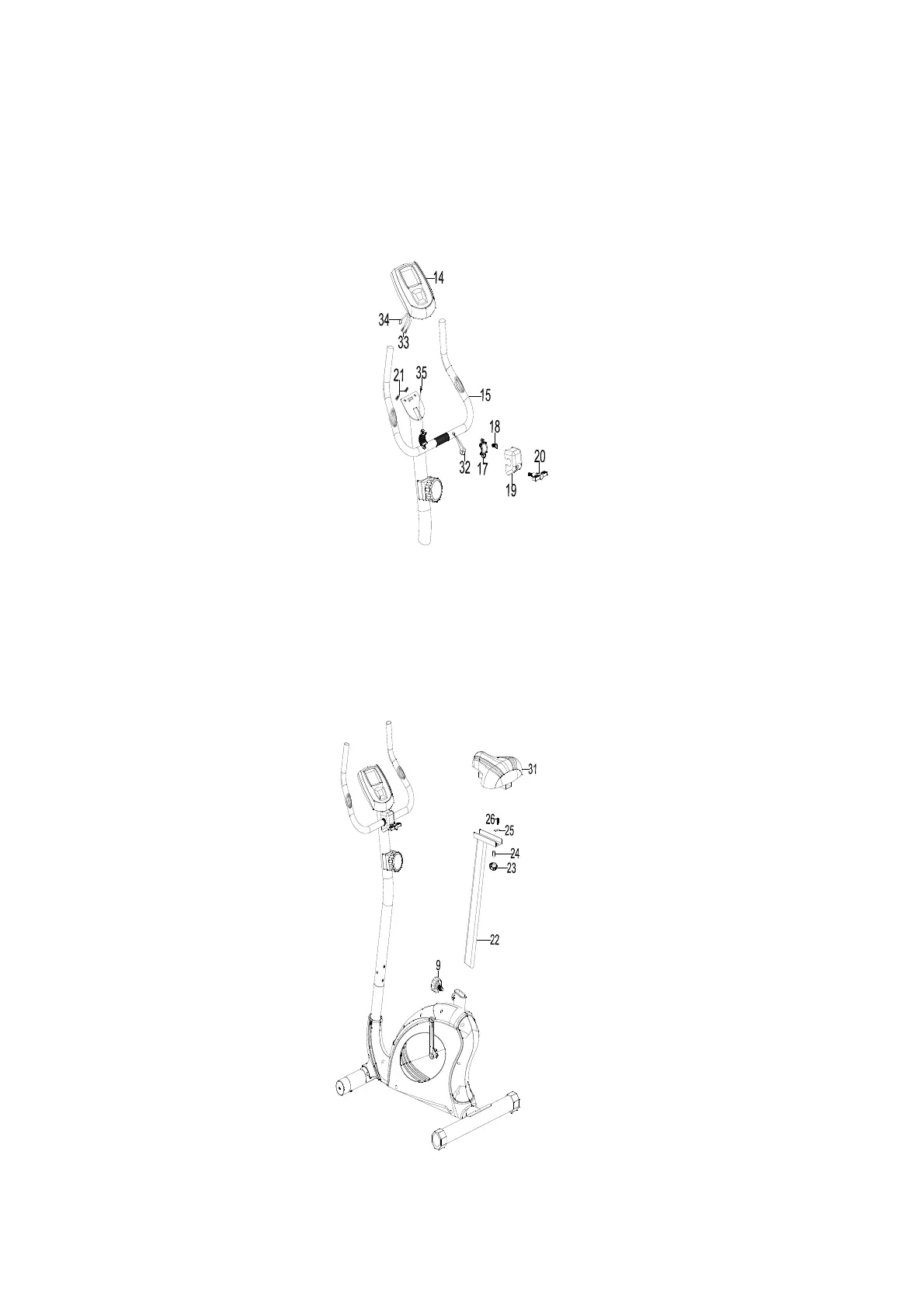

STEP 3
 Attach handlebar (15) to front post (10), tighten with a clamp (17) and allen bolt (18), plastic
cover (19) and T type knob (20).
 Connect upper computer wire (34) with middle computer wire (35) ,and connect lower pulse
wire (32) with upper pulse wire (33) from the back of the computer (14).
 Attach computer (14) to bracket on front post (10), tighten with screws (21).
STEP 4
 Attach seat (31) to seat post (22), tighten with knob (23), sleeve (24), square washer
(25) and carriage bolt (26).
 Insert seat post (22) into main frame (1), tighten with quick release knob (9).
