ASSEMBLY INSTRUCTION

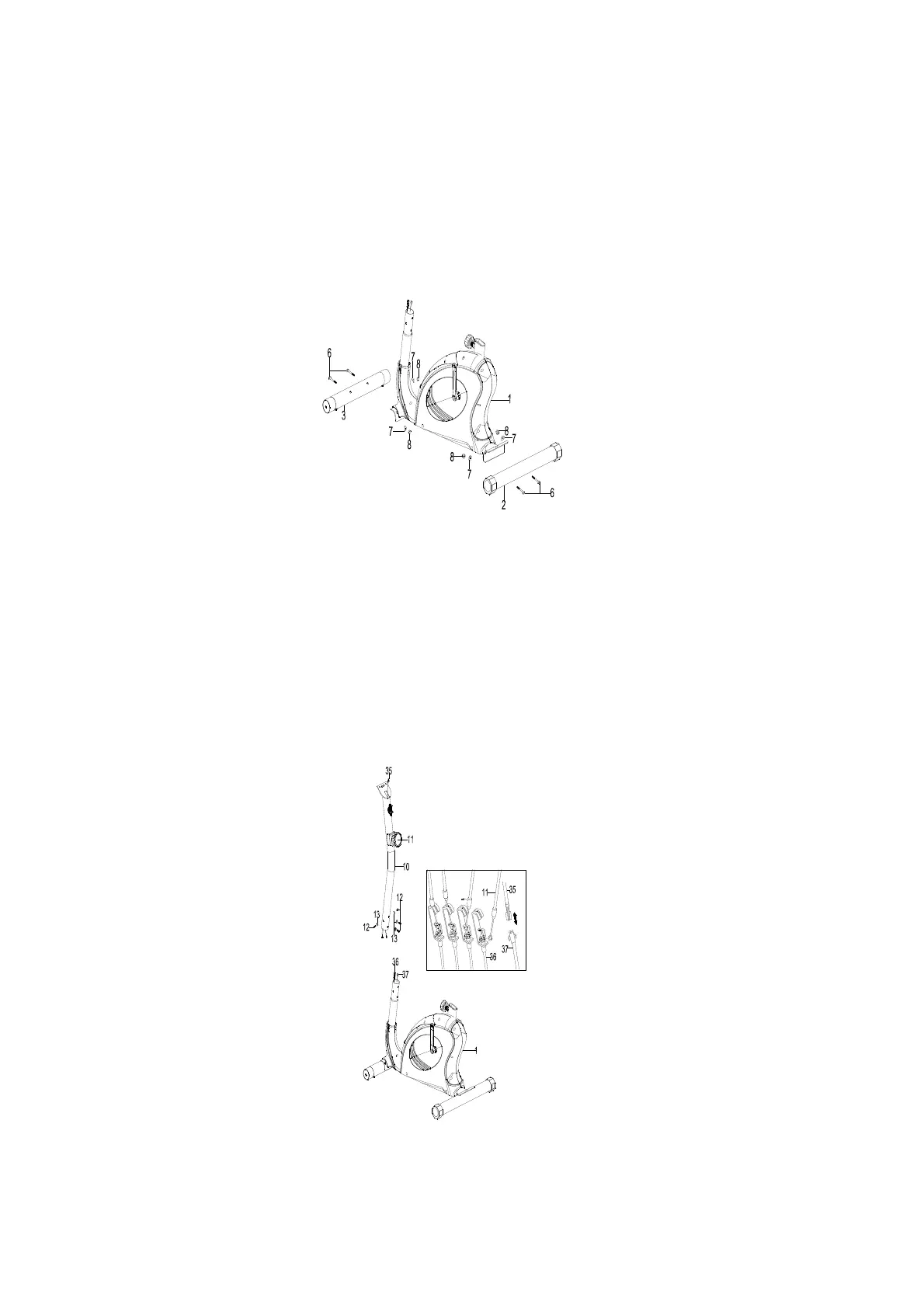

STEP 1
Attach front stabilizer (3) to main frame (1), tighten with carriage bolt (6), curve washer (7) and
domed nut (8).Then attach rear stabilizer (2) to main frame (1), tighten with carriage bolt (6), curve
washer (7) and domed nut (8).
STEP 2
Take front post (10) and connect middle computer wire (35) with lower computer
wire(37)
Adjust the tension control knob(11) to level 8, then connect it with the lower tension
cable (36). Insert front post (10) into main frame (1) and tighten with 4 sets of allen bolt
(12) and curve washer (13).
