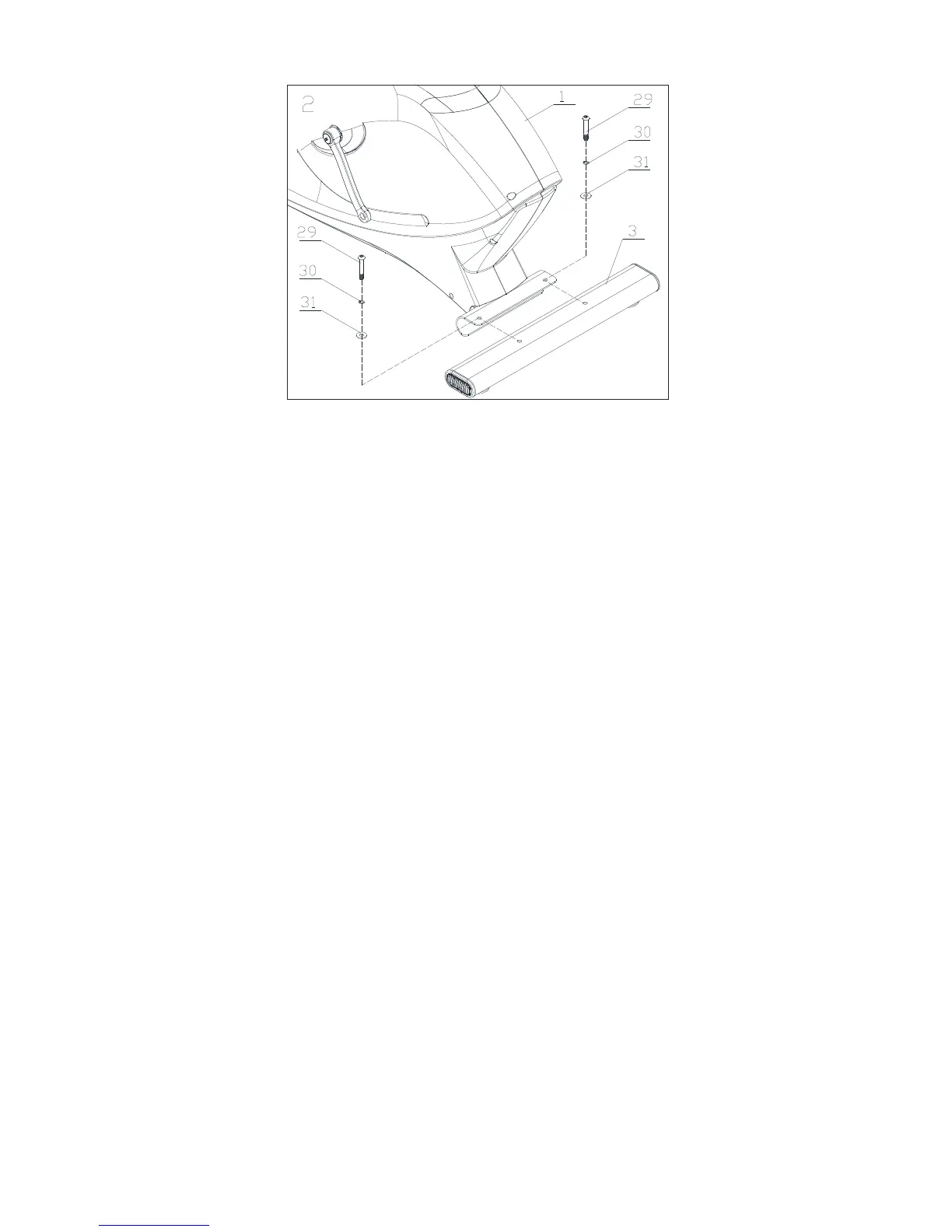

Step 3:
1.Attach the
Upright post decoration strip
(46) to the upper upright post(4),take upright
post cover(19) off from the main frame(1) and cover it on the upper upright post.(4)
2.Connect Motor communication wire (12) and Console communication wire (13).
3. Attach upper upright post(4) to the main frame(1) with Curved washer( 33), spring
washer(30), Allen C.K.S. half thread screw(34) and flat washer(31), spring washer(30),
Allen C.K.S. full thread screw(32) and flat washer(31),Allen C.K.S. half thread screw(34),
Hex self-locking nut(35).
4.Attach upright post cover(19) and
Upright post decoration strip
(46) to the main
frame(1).
5.Attach bottle holder(20) to upper upright post(4) with Philips pan head full thread
screw(36).
Tip: Put the communication wires and resistance adjust knob wire into the upright
post,and make sure all screws are in the hexagonal hole before tighten all the bolts.
