105 Fixing plate Q235A 30*27*4T 1
106 Screw Q235A M5*0.8*35L 1
107 Hex nut Q235A M5*0.8*5T 1
108 Fixing plate for computer Q235A 220*120*3T 1
Part NO. Description Material Specification QTY
109 Spring washer 70# D15.4*D8.2*2T 2
110 Bolt Q235A M5x0.8x12L 1
111 Buffer strip EVA 219*15*2T 2
\ Allen spanner 35# M6,8.8 1
\ Spanner Q235A D6*151.3 1
\ Allen spanner Q235A M10 1

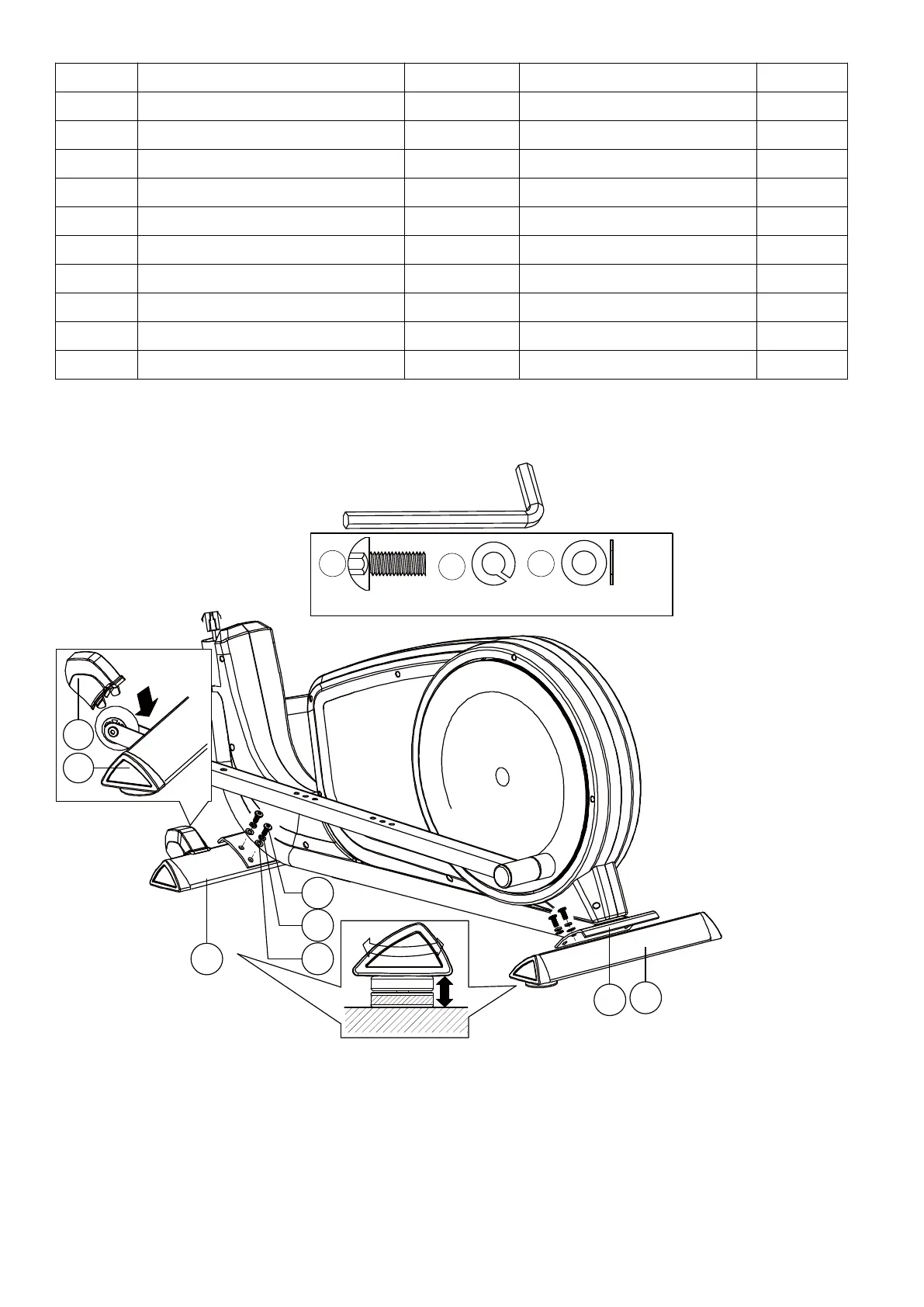

1) Assemble the front stabilizer (2) and rear stabilizer (19) to the main frame (1) by
using the flat washer (3), spring washer (7), and Allen bolt (9).
2) Assemble the cover for movable wheel (88) to the wheel (5).
3) Adjust the proper height by turning Adjustable round wheel of rear foot cap (78).
