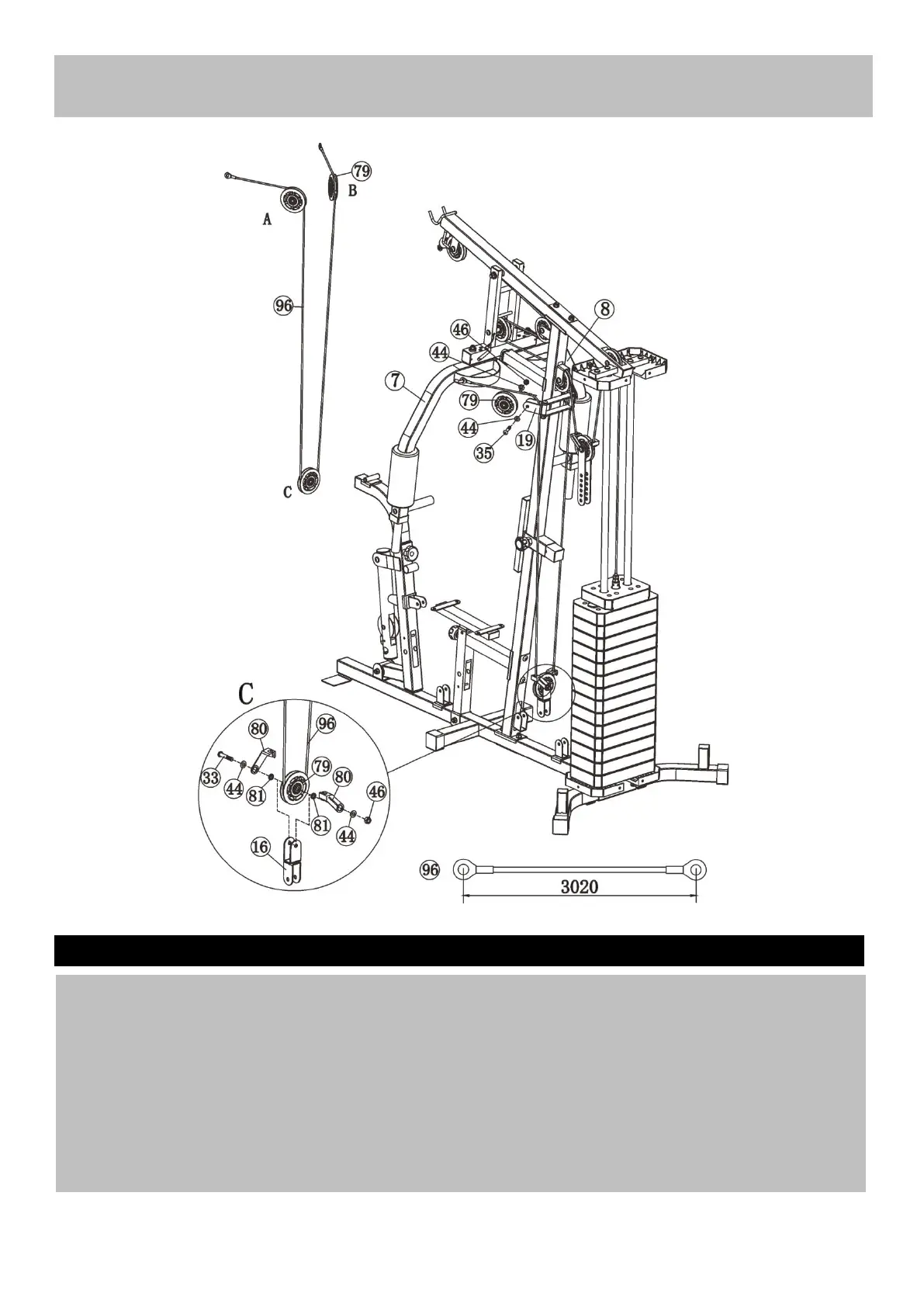

A. Attach the end of the 3020 MM butterfly cable(96#) to the hook and place 1X pulley below the cable ,
Secure the pulley to the swivel pulley bracket(19#) with 1X M10X45 Allen bolt (35#),2X φ10 washer
(44#) and 1pcM10 Aircraft nut (46#).
B Draw the cable around the pulley and downwards ,Place 1X pulley onto the cable , Secure the pulley
with cross double floating pulley bracket(16#) together with the 1pc M10*50 Allen Bolt(33#),2pcs φ10
washers(44#),bushing(81#), 2 pcs retainer(80#),and 1 pc M10 Aircraft nut(46#).
C Draw the cable around the pulley and upwards, Install another pulley with the same way in above A
and B.
