Attach the foot plate(11#) to the leg press adjustment frame (105#) and secure them with 1pc M10*90
Allen bolt (29#), 2pcs φ10 washers(44#)and M10 aircraft nut(46#).

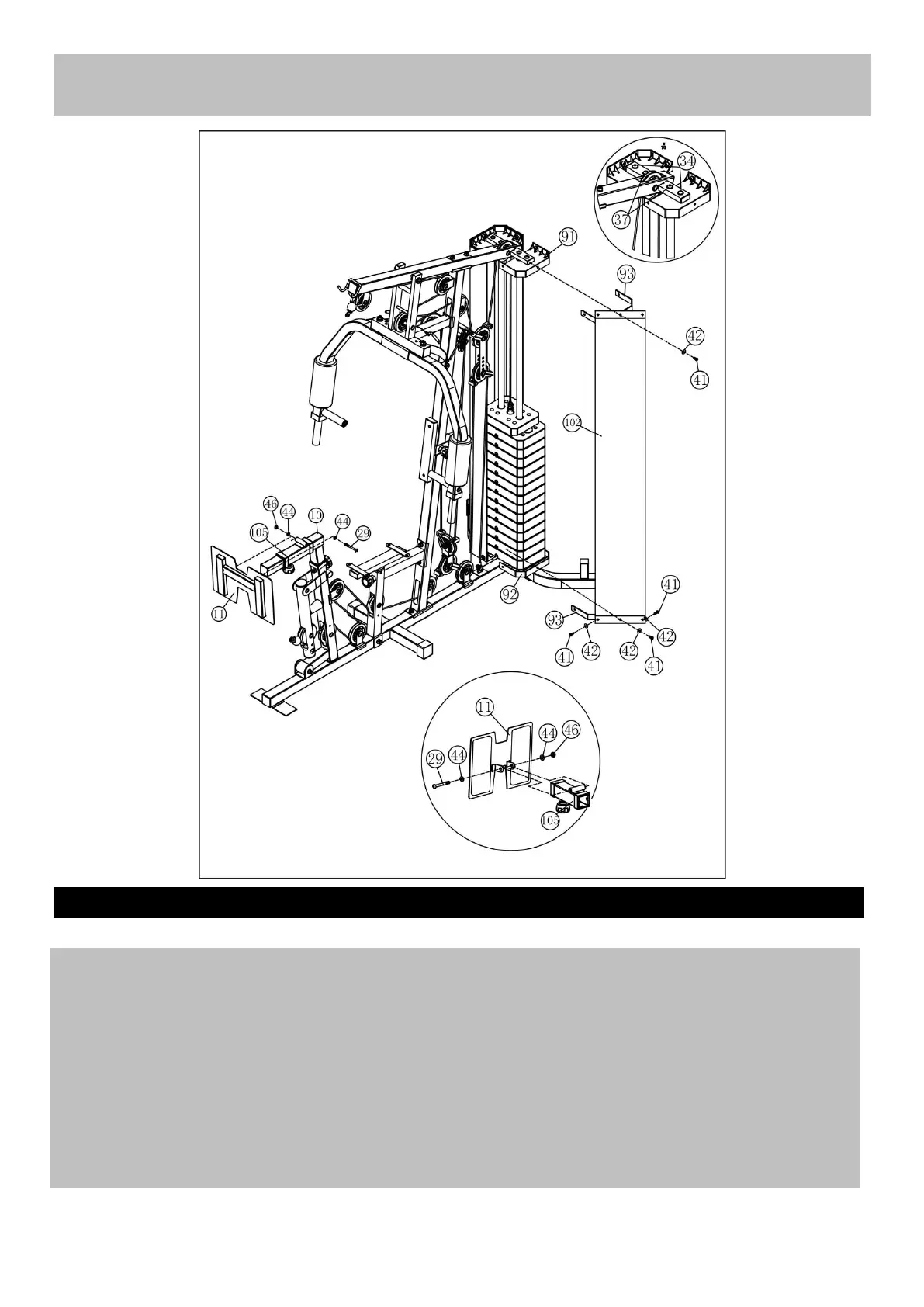

Attach the plastic bracket(93#) into the upper and bottom hole of the weight stack cover(102#) as the
diagram show . attach weight stack cover(102#) to the
upper weight stack cover bracket(91#) and
bottom weight stack cover bracket (92#) with 6pcs ST
6×20 philips screw(41#) and 6pcs φ6 washers
(42#).
Repeat the same way to another weight stack weight
cover.
Tighten the 2pcs M10*50 Allen bolt (34#) to adjust the weight stack cover if you feel it loose.
To Next Page
