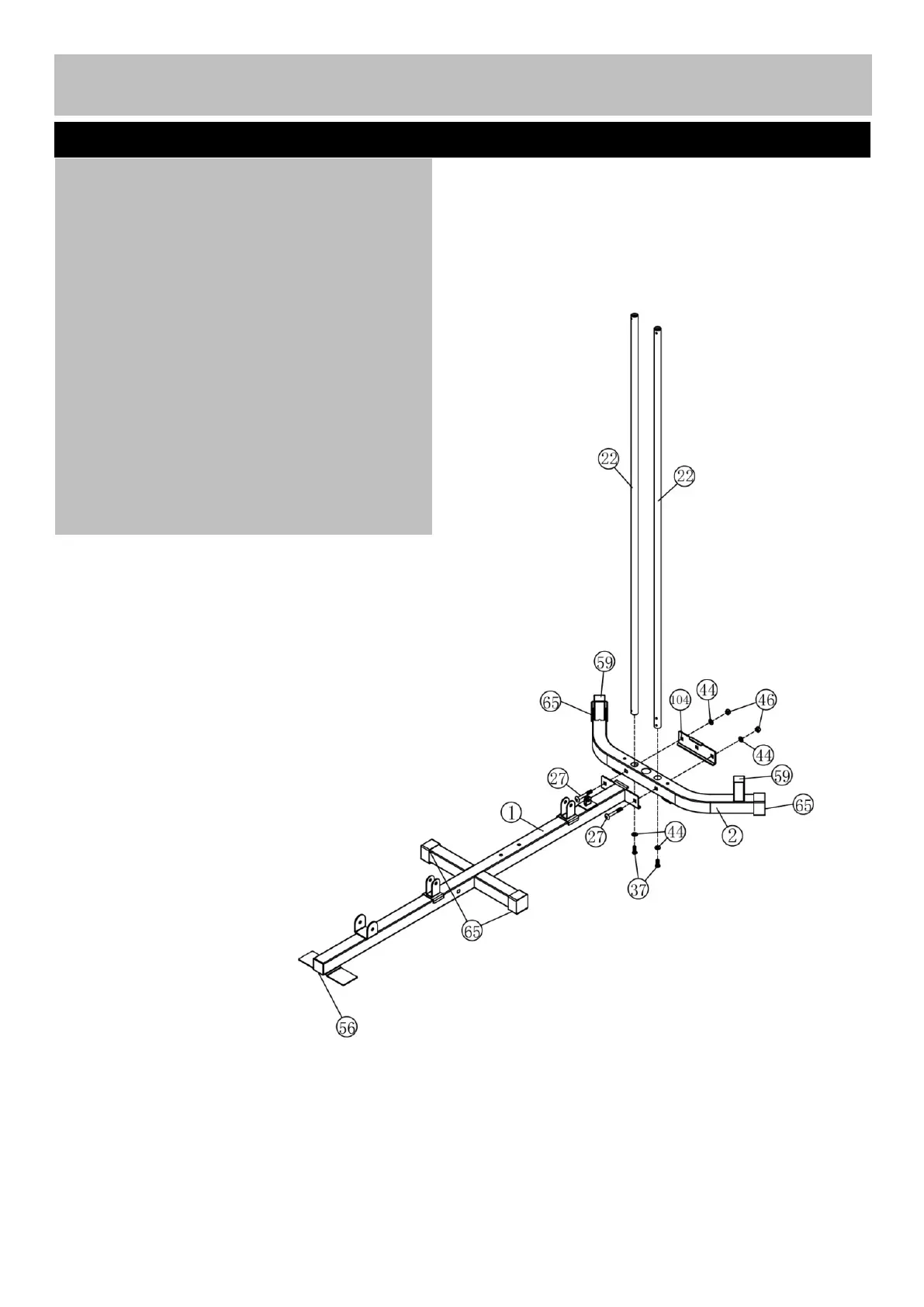

a. Insert the Guide rods (22#) into the holes of
the Rear stabilizer (2#). Fix them using 2 p
cs
M10 x 25mm Allen bolts (37) and 2 pcs
Ø10mm Washers (44#).
b. Attach the Base frame (1#) to the Rear
stabilizer (2#). Secure them with 2 pcs M10
x
70mm Carriage bolts (27#), the U-shape
bracket (104#), 2 pcs Ø10mm Washers (44#)
and 2 pcs M10 Aircraft nuts (46#).
Note：□50X1.5 End cap(56#), □38X1.5 End
cap(59#)，□50 End cap(65#) were fixed in
the factory already.
