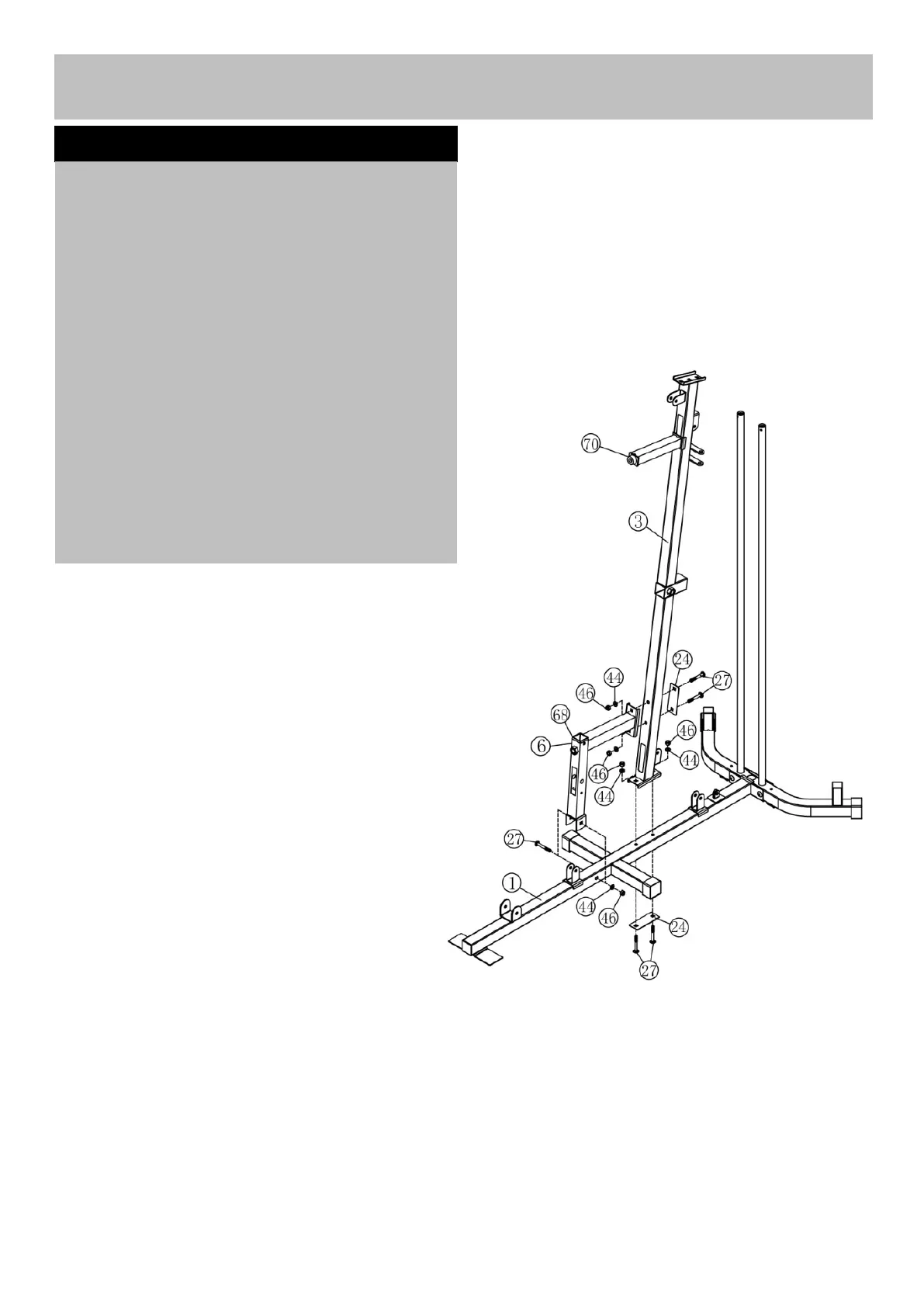

Attach the front vertical frame(3#) onto the
base frame(1#). Carefully align the holes and
secure them with 2 pc M10*70 carriage
bolt(27#), 1 pc bracket(24#),2pcs φ10
washers(44#) and 2pcs M10 Aircraft nuts(46#) .
Attach one end of the seat pad support(6#) to
the front vertical frame(3#) and secure them
with 2pcs M10*70 Carriage bolt(27#),1pc
bracket(24#),2pcs φ10 washers(44#),2pcs
M10 Aircraft nuts(46#) .
Attach another end of the seat pad support(6#)
to the base frame(1#), Secure them with 1 pc
M10*70 Carriage bolt(27#),1pc φ10
washers(44#),1pc M10 Aircraft nuts(46#) .
note：□45X□
38 Sleeve(68#), Rubber bumper(70#)
were fixed in the factory already.
