STEP 3
Step-3
8
9
9
13
8
M5*10L
97
( x1)
13
12

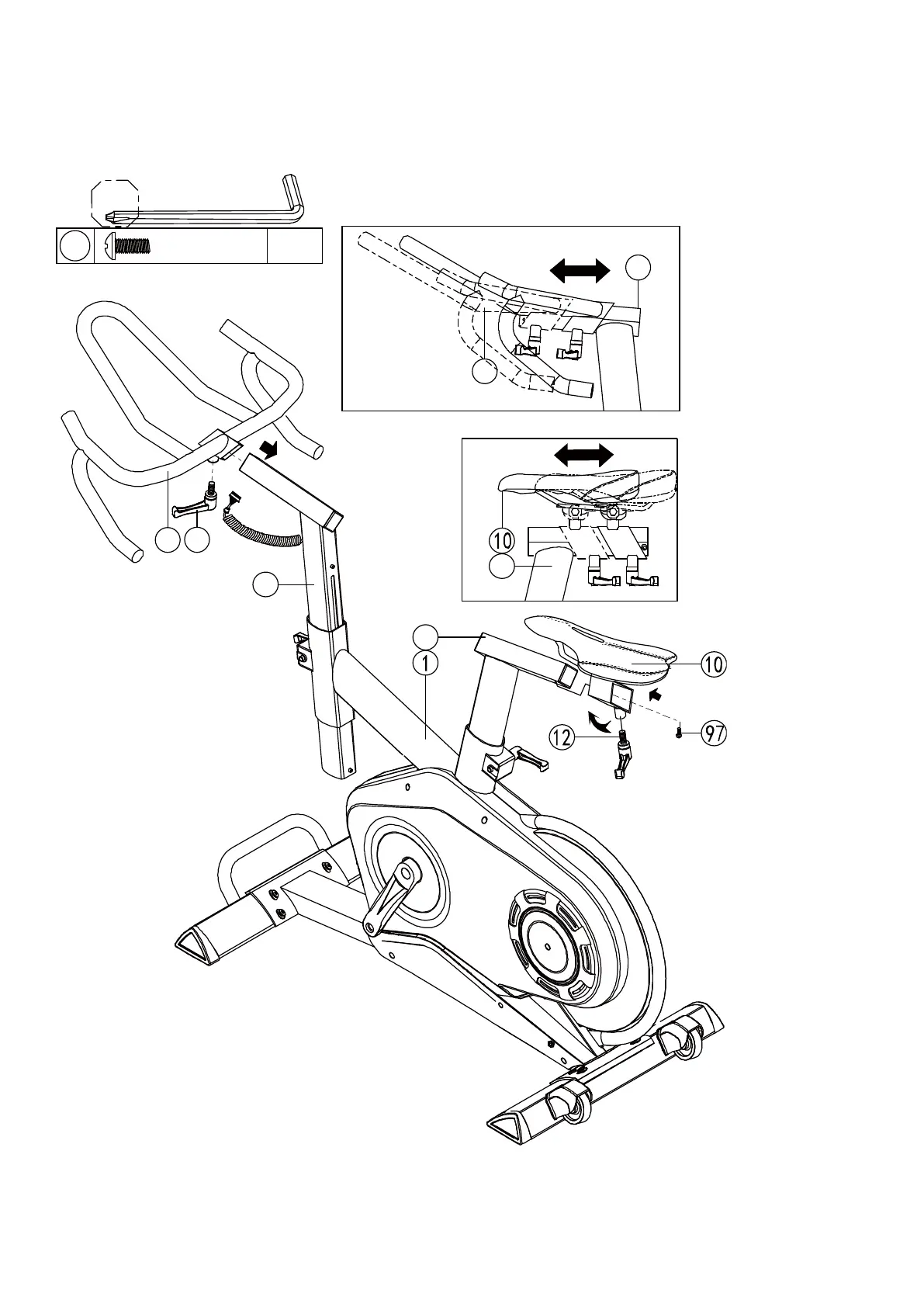

1) Fix the handlebar (13) onto the front post by L knob (12).
2) Assemble the saddle (10) onto the seat post (9) by L knob (12) and screw (97).
13
