Topcon 3D-MC2 - Introduction; D-MC Components on a Dozer

P/N 7010-0924
1-1
Introduction
3D-MC² is an addition to the GPS+ system that allows a dozer to run
and operate at high speed while maintaining smooth grade, using an
MC² sensor in place of the standard slope sensor.

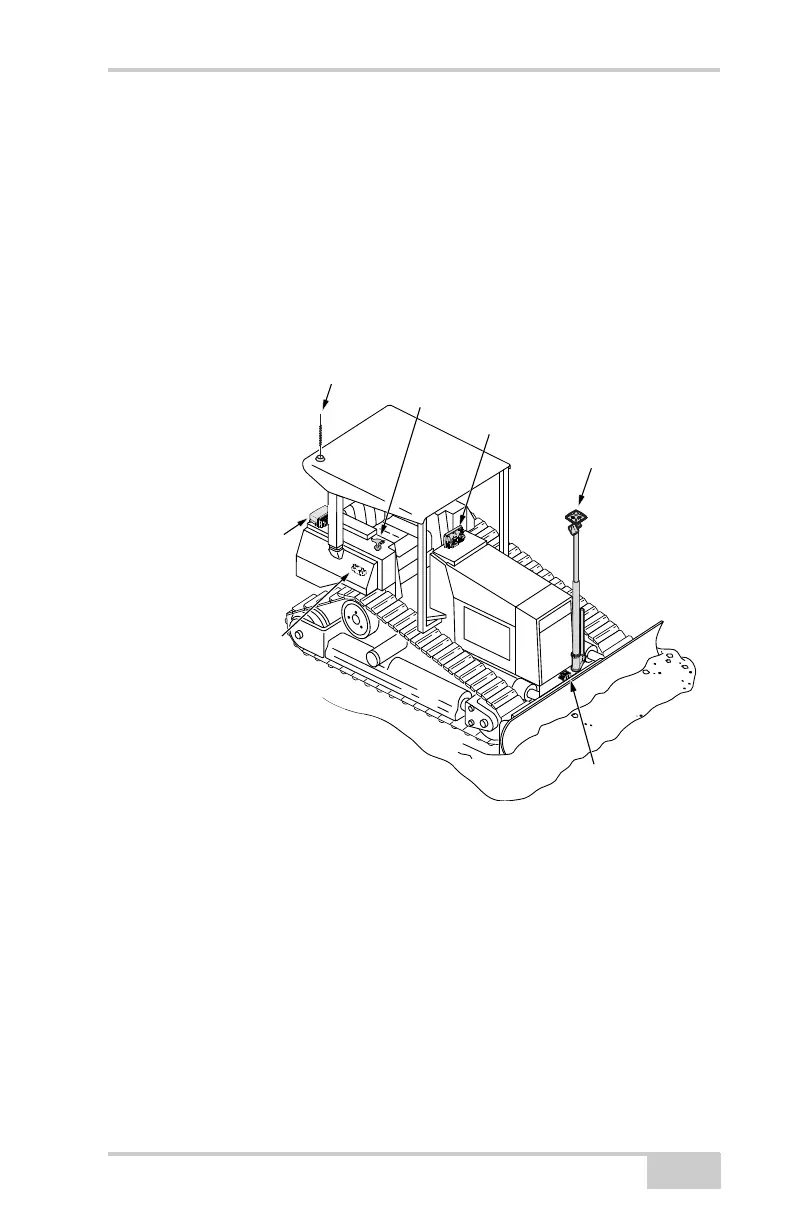

Figure 1-1. 3D-MC² Components on a Dozer
3
Radio Antenna
Auto/Manual Knob
GX-60 Display
Single GPS
Antenna
MC² Sensor
Hydraulic Valves
MC-R3
Controller/Receiver
