Topcon 3D-MC2 - Dozer Top View; MC Sensor Installation; MC2 Location on Blade; Preferred Method

P/N 7010-0924
2-1
MC² Sensor Installation
Preferred Method
Use Mounting Bracket Kit P/N 9625-1004 to install the MC² Sensor
onto the dozer’s blade.
1. Weld the bracket onto the blade near the center of rotation. See
Figure 2-1.

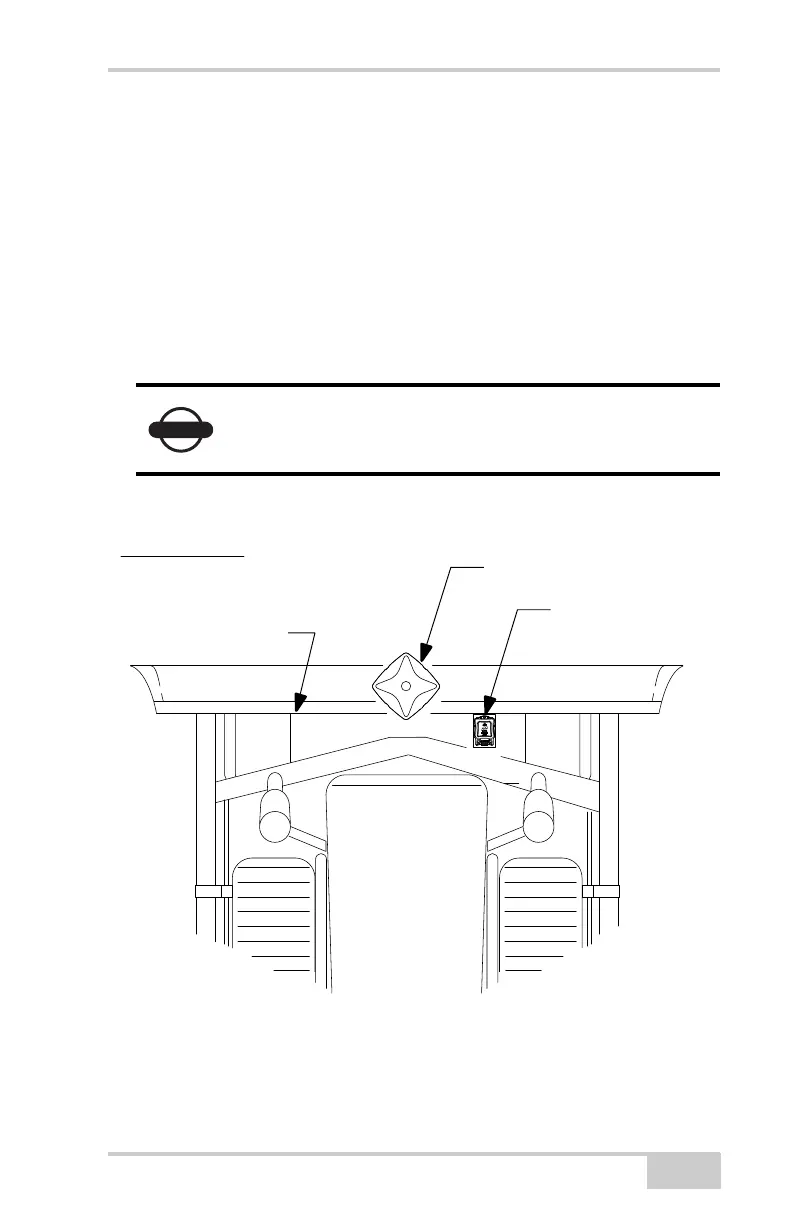

Figure 2-1. MC² Location on Blade
NOTICE
Install the MC² sensor near the center of the blade
and not toward the right or left sides.
Back Side of Blade
Single GPS Antenna
MC² Sensor
- Mount Near
Center of Rotation
Dozer Top View
