1.0 NOMENCLATURE
1.1 Signature Series Model OC-2200 Main Components

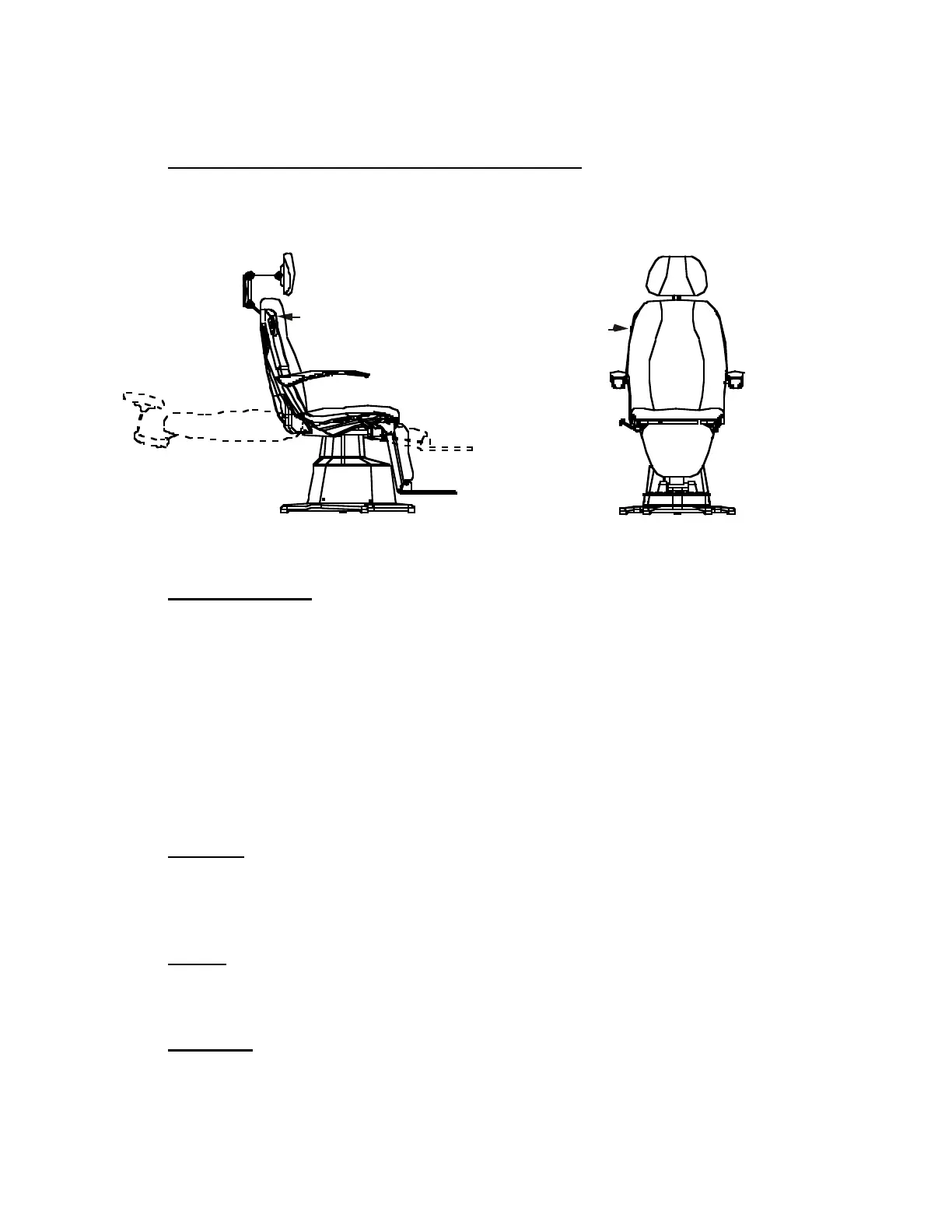

Figure 1 shows the primary features and key components of the OC-2200 Ophthalmic Chair.
Use the figure as a reference.
2.0 PERFORMANCE & SPECIFICATIONS
Chair Dimensions
• Overall: 55” (1397mm)/ 53” (1346mm)* (High) x 28 ” (711mm)
Wide x 40” (1016mm) Deep
• Seat Height (retracted): 22.5” (571mm)/ 20.0” (508mm)*
• Seat Height (full stroke): 35.0” (889mm)/ 29.0” (737mm)*
• Footrest Height: 3.5” (89mm)/ 1.5” (38mm)*
• Full Recline Length: 75” (1905mm)
• Mode of Operation: Continuous Use
• Type of Protection: Class 1 protection (Against Electrical Shock)
• Ingress of Water Protection: Ordinary Protection (IPX0)
• AP or APG: Not AP or APG equipment
Electrical
• Voltage, Current, Frequency:
US Versions: 120VAC (±10%), 5 A, 60 Hz
Non-US Versions: 240VAC (±10%), 3 A, 50Hz
Weight
• Chair Net Wt.: 281 lbs. (127 kg)
• Chair Capacity: 500 lbs. (227 kg)
Movement
• Elevation Stroke: 12.5” (318mm)/ 9” (229mm) *
• Range of Rotation: 355 degrees
• Recline Angle: 70 degrees
