Topcon OPUS A3 STANDARD Full User Manual

Industriestraße 7  65366 Geisenheim  Germany
www.topcon-electronics.de  dl-opus-info@topcon.com

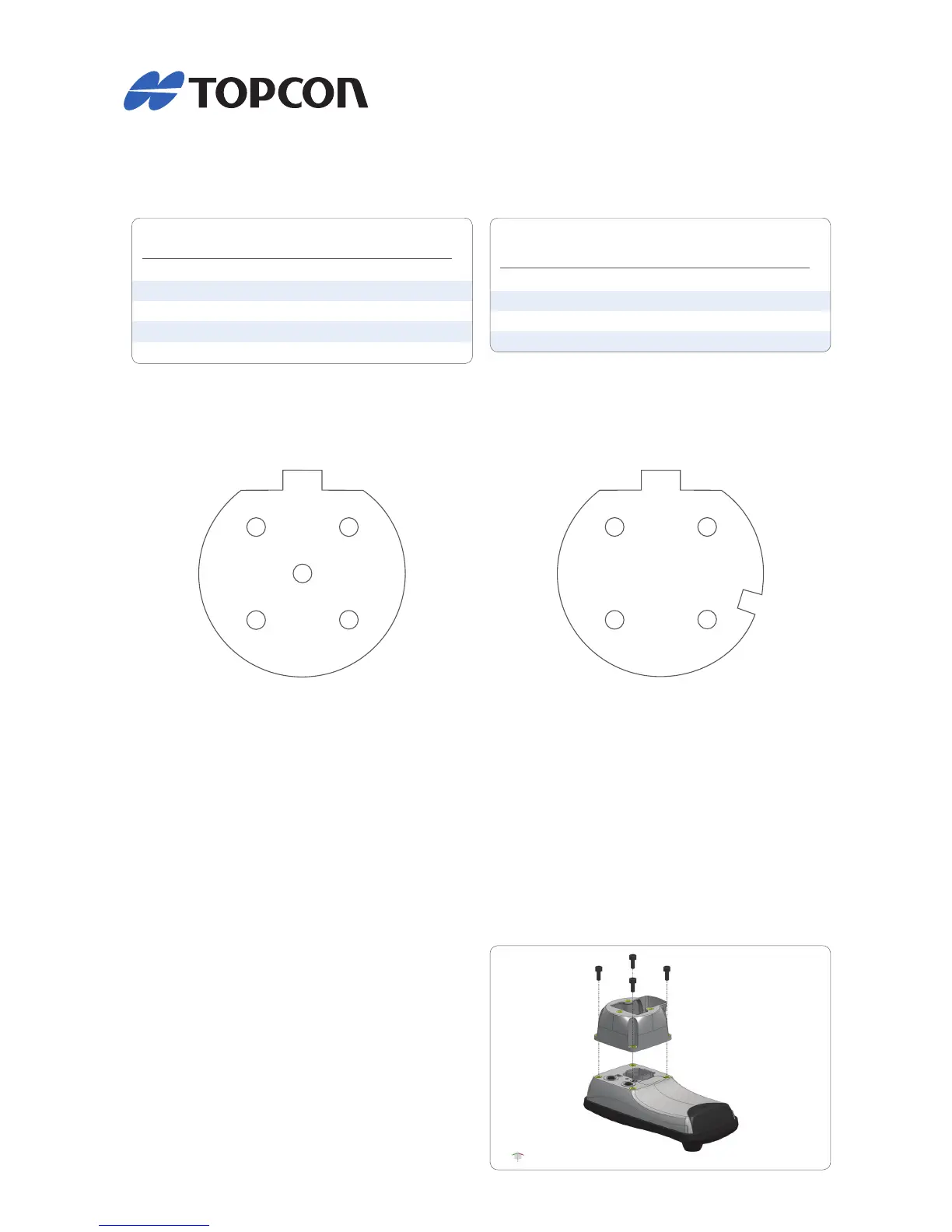

Video connector pinout Ethernet connector pinout
Video connector, M12, female, 5 pins, b-coded,
view on rear side of the A3
Ethernet connector, M12, female, 4 pins, d-coded,
view on rear side of the A3
Recommended mating connector type according
to IEC 61076-2-10:
MM 005-Gx1-B
x) A, C, I, P, R or S-type
Recommended mating connector type according
to IEC 61076-2-10:
MM 004-Gx1-D
x) A, C, I, P, R or S-type
1 2
34
5
1 2
34
1
2
3
4
5
Round Connector, 5 pins, M12
VidSig+
Mirror
Camera+
Camera -
VidSig GND
1
2
3
4
Round Connector, 4 pins, M12,
acc. To IEC 61076-2-101
TD+
RD+
TD-
RD-
11 Mounting accessories (not included)
Standalone mounting adaptor for RAM® mounting
system (OPUSA3ZBAH001)
Material PC+ABS
Dimensions 74x84x42 mm (WxHxD)
OperatingTemperature -30…+75°C
StorageTemperature -40…+85°C
Max mounting torque 2.5 ± 0.2 Nm
