The TOPENS TC186 is a WiFi surveillance camera with a built-in relay switch, designed to provide remote monitoring and control capabilities for various applications, including gate/garage door openers and automatic industrial equipment. This device integrates video surveillance with smart control, allowing users to manage and monitor their systems from a smartphone.

Function Description

The primary function of the TC186 camera is to offer real-time video surveillance, enabling users to view live footage of their property. Beyond simple monitoring, its key feature is the integrated relay switch, which allows for remote activation and control of connected devices. This relay switch can operate in two modes: "Toggle" or "Self-hold." In "Toggle" mode, a brief activation signal is sent, similar to a momentary push button. In "Self-hold" mode, the relay maintains its activated or deactivated state until manually changed, providing continuous control over power supply or device status.

The camera supports both WiFi and Ethernet cable connections, offering flexibility in network setup. It is equipped with a CMOS sensor and a 6mm lens, providing clear video capture. For low-light conditions, the camera features an ICR infrared filter for night vision, extending visibility up to 15 meters.

Usage Features

The TC186 camera is designed for ease of use, primarily through its dedicated "LinkCraft" mobile application, available for both Android and iOS devices.

Remote Monitoring:

Users can access live video feeds from the camera at any time through the "LinkCraft" app. The app displays the camera's status, indicating whether it is "online" or "connected," ensuring users are aware of its operational state. Once connected, users can enter the monitor display and control interface to view the live stream.

Remote Control:

The integrated relay switch allows for remote activation of connected devices. For gate/garage door openers, users can press a virtual push button within the app to activate the opener. When connected to automatic industrial equipment, the camera can directly control the power supply. In this scenario, the "Self-hold" mode is particularly useful, allowing the user to maintain a continuous ON or OFF state for the equipment.

Timer Functionality:

A significant feature for controlling industrial equipment is the timer setting. Users can program the camera to automatically power on or off connected devices based on a 7-day, 24-hour schedule. This allows for automated operation, enhancing efficiency and convenience for industrial applications. The timer settings can be easily configured within the app, with options to enable/disable the timer directly and save changes.

Micro SD Card Recording:

The camera supports an optional Micro SD card (up to 128GB) for local video recording. This feature allows users to store monitoring videos directly on the camera, providing a record of activity even if network connectivity is temporarily lost. The installation of the Micro SD card is straightforward, requiring the user to loosen four screws on the bottom cover to access the card slot.

Multi-User Sharing:

The TC186 camera can be shared with other users, allowing multiple individuals to monitor and control the device. To share, the recipient must also install the "LinkCraft" app and register an account. The primary user can then add friends' accounts within the app's "My Circles" settings and enable sharing for specific users. This is particularly useful for families or small businesses where multiple people need access to the camera's functions.

Additional App Functions:

The "LinkCraft" app includes several other useful features:

Screen Capture: Users can capture still images from the live monitor screen, which are stored on their phone.
Video Recording: Short monitor videos can be recorded and saved to the user's phone.
Screen Rotation: The monitor screen can be rotated 180 degrees for optimal viewing.
Full Screen Mode: The monitor screen can be maximized to full screen for a more immersive viewing experience.
Video Playback: If a Micro SD card is installed, users can play back recorded videos directly from the camera.
Local Device Media: Users can view photos and videos taken with the app's capture functions, stored on their mobile device.

Connectivity and Setup:

The camera's setup process involves connecting it to a WiFi network. The app guides users through the configuration, which includes powering on the camera, observing the indicator light (flashing RED and GREEN alternately), and pressing the SET button to enter a quick flashing mode for configuration. The app automatically detects the camera, allowing users to rename it, input WiFi credentials, and bind the device. For iOS users, the process involves jumping to WiFi settings to connect to the camera's temporary WLAN network before returning to the app to complete the binding.

Wiring Connections:

The TC186 offers versatile wiring options for its relay switch:

Gate/Garage Door Opener: The BLUE and YELLOW&GREEN wires of the relay output are connected to the exit or push button terminals of the opener's control board.
Automatic Industrial Equipment (Direct Power Control): The YELLOW&GREEN wire (COM) is connected to the LIVE LINE (or positive electrode of power input), and the BLUE wire (NO) is connected to the LIVE (or positive) power supply terminal of the equipment. The Neutral power supply terminal of the equipment can be connected directly to the Neutral Line.
Automatic Industrial Equipment (Remote Control Terminals): The BLUE and YELLOW&GREEN wires are connected to the wired remote control terminals of the equipment, allowing activation via the camera's relay.

Maintenance Features

Signal Strength Check:

Before installation, the app provides a Wi-Fi signal strength check to ensure optimal performance. If the signal is weak, the app suggests solutions such as moving the router closer, minimizing interference, using a Wi-Fi range extender, or connecting the camera via an Ethernet cable for programming. This proactive approach helps users ensure a stable connection for reliable operation.

Troubleshooting:

The manual provides clear instructions for initial setup and common issues, such as the camera quitting configuration if not completed within 5 minutes. The indicator light status (slow vs. quick flashing) helps users identify the camera's current mode during setup.

Firmware Updates:

While not explicitly detailed as a user-controlled feature, smart devices typically receive firmware updates to improve performance, add new features, and address security vulnerabilities, ensuring the camera remains up-to-date and functional over time.

Account Management:

The "LinkCraft" app includes user account registration and management, allowing users to secure their access with mobile phone numbers or email addresses and custom passwords. Verification codes are used during registration to enhance security.

In summary, the TOPENS TC186 is a comprehensive surveillance and control solution that combines video monitoring with smart relay switching, offering remote access, automation, and sharing capabilities for a wide range of applications.

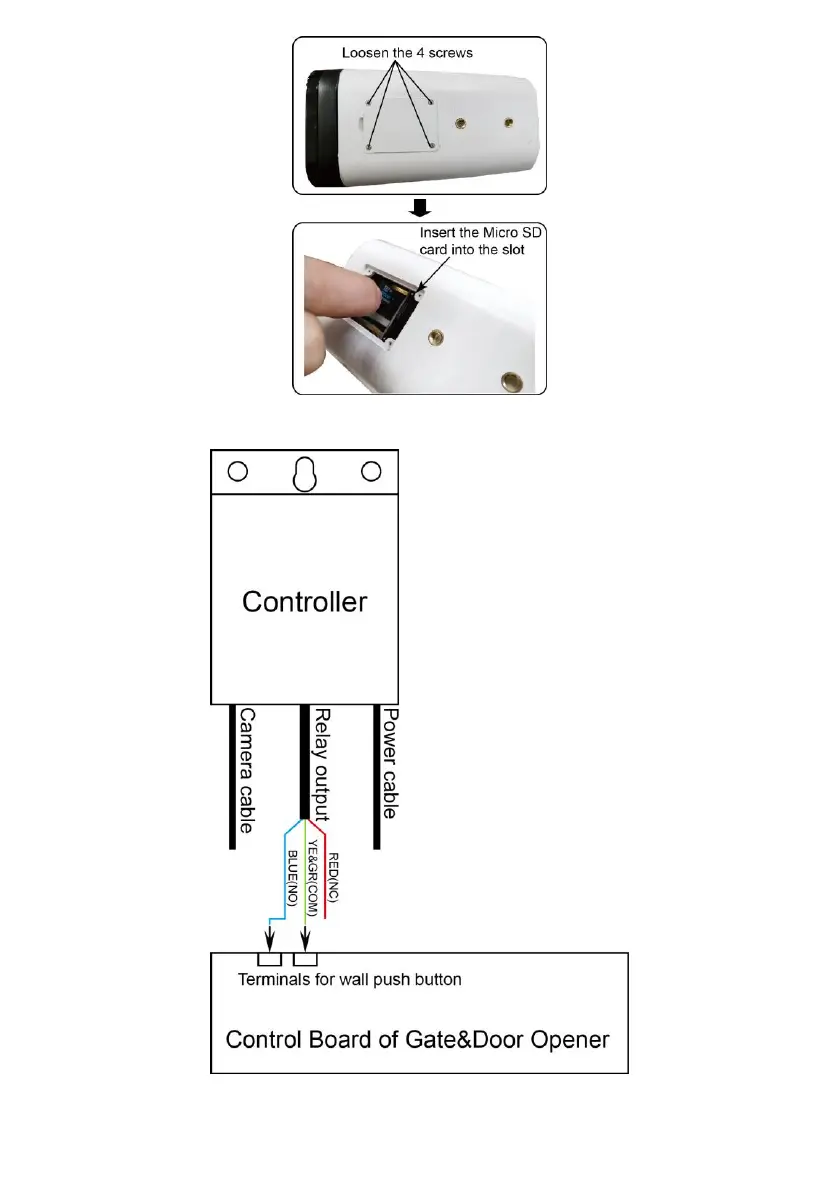

Topens TC186 - Wire connection with the Gate;Garage Door Opener
