TopflyTech TLW1-4A - 1 Quick Reference of Connection Diagram

Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved 5

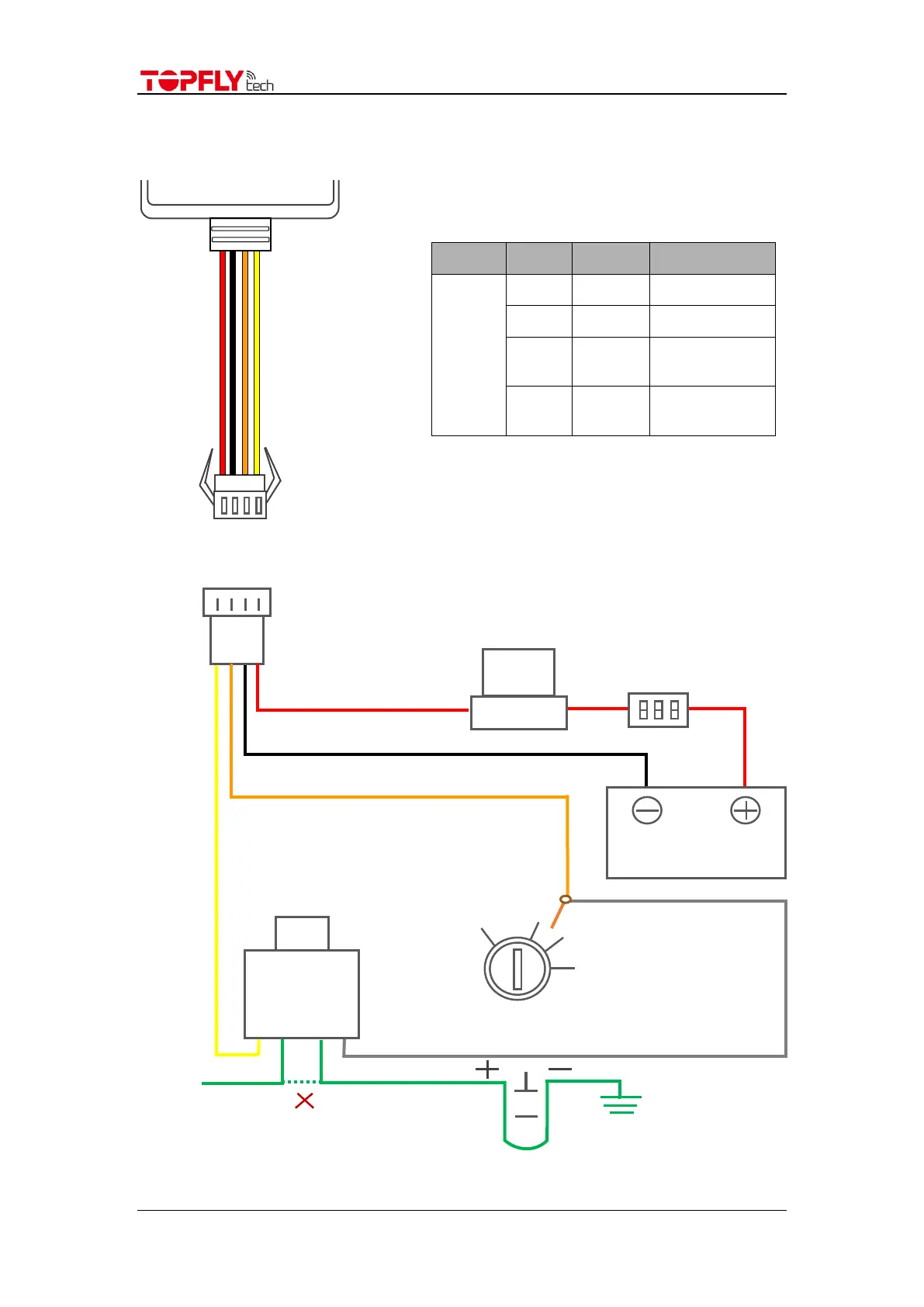

1. Quick Reference of Connection Diagram
Cut off
Fuel Pump
White
Yellow
ACC
ON
START
OFF
Key
Position
Relay
12V or 24V
Orange
Black
Red
Storage Battery
12V or 24V
2A Fuse
Fuse Box
Fuse
T8808
Connector
PIN No.
Color
Function
1
1
Red
Power+
2
Black
Power-
3
Orange
Ignition Detection
(Digital input1)
4
Yellow
Relay Control
(Digital output1)
