• Turn the Load ON/OFF and switch between Automatic and Manual modes by pressing the
“M/R” (mode) button.
• The large and easy-to-read LCD screen displays the current day of week, time, Auto/
Manual mode, whether the Load is ON or OFF, and the program settings.
• The Timer can be programmed up to 18 ON and 18 OFF settings.
• Random feature (RND) turns ON/OFF the Load at a random time, 30 minutes within the
programmed time.
• DST: Daylight Savings Time.
FEATURES
INSTALLATION INSTRUCTIONS
Model: TGT07
DIGITAL 7-DAY TIMER
DUAL OUTLET HEAVY DUTY PLUG-IN
R
PRG
DAY
HOUR
HOUR
MIN
DST
RND
MAN
A
OFF
MO TU WE TH FR SA SU
PROG
M/R
MAIN SCREEN BUTTONS AND INDICATORS
CLOCK SCREEN BUTTONS AND INDICATORS
HOUR
DST
M/R
MIN
RND
PRG
R
PRG
PRG
HOUR
DST
MIN
RND
DAY
1. Indicates the day of the week.
2. DAYLIGHT SAVINGS TIME indicator.
• DST displayed = ON
• DST not displayed = OFF
3. Indicates the status of connect light(s) or load(s): ON/ OFF.
4. DAY button. This button has no function on main screen.
5. HOUR button. Used to turn Daylight Savings ON/ OFF. Hold down for 6
seconds to turn Daylight Savings ON or OFF.
6. AUTO/ MANUAL indicator. Indicates Manual operation mode and Automatic timer
controllet mode
7. Random Mode Button. Used to turn Random Mode ON/ OFF. Hold down
for 6 seconds to turn Random Mode ON or OFF.
8. RESET button: Push to reset all settings to Factory Default. Press and
immediately release.
9. PROGRAMMING button. Press once to Program the Clock. Press two
times to Program the ON and OFF times.
10. MANUAL ON/OFF button. It’s used to manually turn the light(s)/ load(s) ON/ OFF.
11. MODE button. Press the button to switch between Manual operation mode
and Automatic timer controlled mode.
• Automatic Mode: In this mode, the timer will run the programs that you
have scheduled. It will automatically turn the lights ON or OFF based
on all your programs.
• Manual: In this mode, the timer WILL NOT run the programs that you have
scheduled. You will only be able to operate the lights using the MAN button.
12. AM/ PM indicator
13. CLOCK
14. RANDOM mode indicator.
• RND displayed = ON
• RND not displayed = OFF

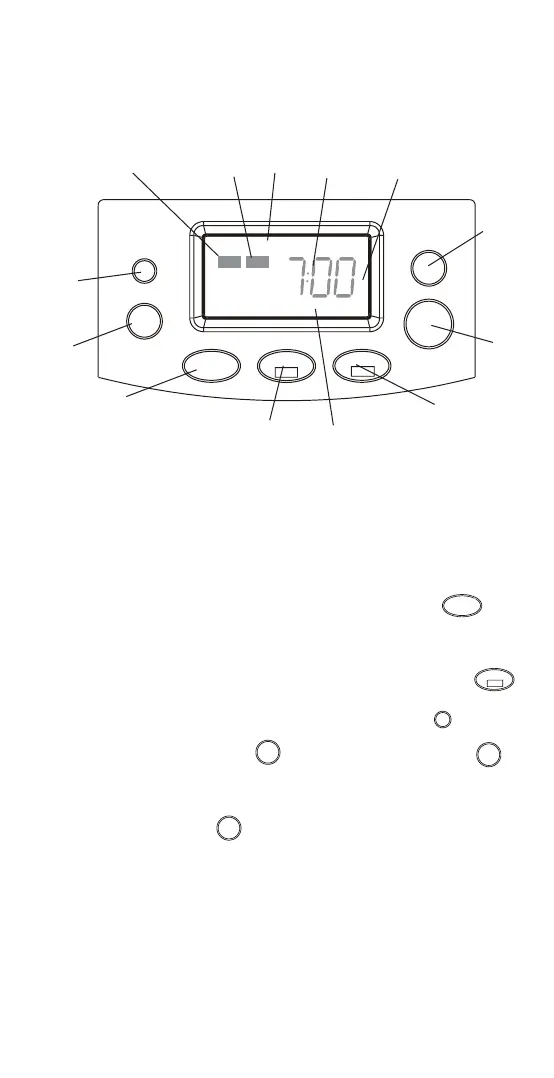

1. Indicates the day of the week.
Options are:
MO = MONDAY FR = FRIDAY
TU = TUESDAY SA = SATURDAY
WE = WEDNESDAY SU = SUNDAY
TH = THURSDAY
2. DAY button. Press to scroll through the days.
3. HOUR button. Press to change the hours. The clock is in 12 hour format.
4. MINUTES button. Press to change the minutes.
5. RESET button: Push to reset all settings to Factory Default.
6. PROGRAMMING button. When you are in the clock screen, pressing the
once will enter the Programming for the ON and OFF times.
7. MANUAL button. Press to exit programming and return to main screen.
8. MODE/ RECALL button. This button has no function on the clock screen.
9. AM/ PM indicator.
10. CLOCK.
This device is warranted to be free of material and workmanship defects for 1 year from the date of purchase. Original receipt or proof of purchase from an authorized retailer must be presented upon warranty claim.
ALL claims must be verified and approved by Top Greener, Inc. Warranties from other Top Greener products may vary. This warranty is nontransferable and does not cover normal wear and tear or any malfunction,
failure, or defect resulting from misuse, abuse, neglect, alteration, modification, or improper installation. To the fullest extent permitted by the applicable state law, Top Greener shall not be liable to the purchaser or
end user customer of Top Greener products for direct, indirect, incidental, or consequential damages even if Top Greener has been advised of the possibility of such damages. Top Greener’ total liability under this
or any other warranty, express or implied, is limited to repair, replacement or refund. Repair, replacement or refund are the sole and exclusive remedies for breach of warranty or any other legal theory.
