Bottom Cable
Cradle cable(CAB-MB-FULL) cradle extension cable (CAB-EX-FULL) camera hub cable(CAB-EX-HUB)
Bottom cradle cable can offer below function in full features cradle
- Vehicle Input: DC 9V to 36V, ignition control with optional switch in the cradle
- Serial port: RS485 x 1, RS232 x 2
- Support one channel video input (Support AHD 720P, 1080P and Analog camera)
- Support four channels video input, connect to Camera Hub by extension cable (Refer to the Camera Hub
manual), with 4 trigger input
- I/O: Analog input ADC x 1, Digital input x 2, Digital output x 1

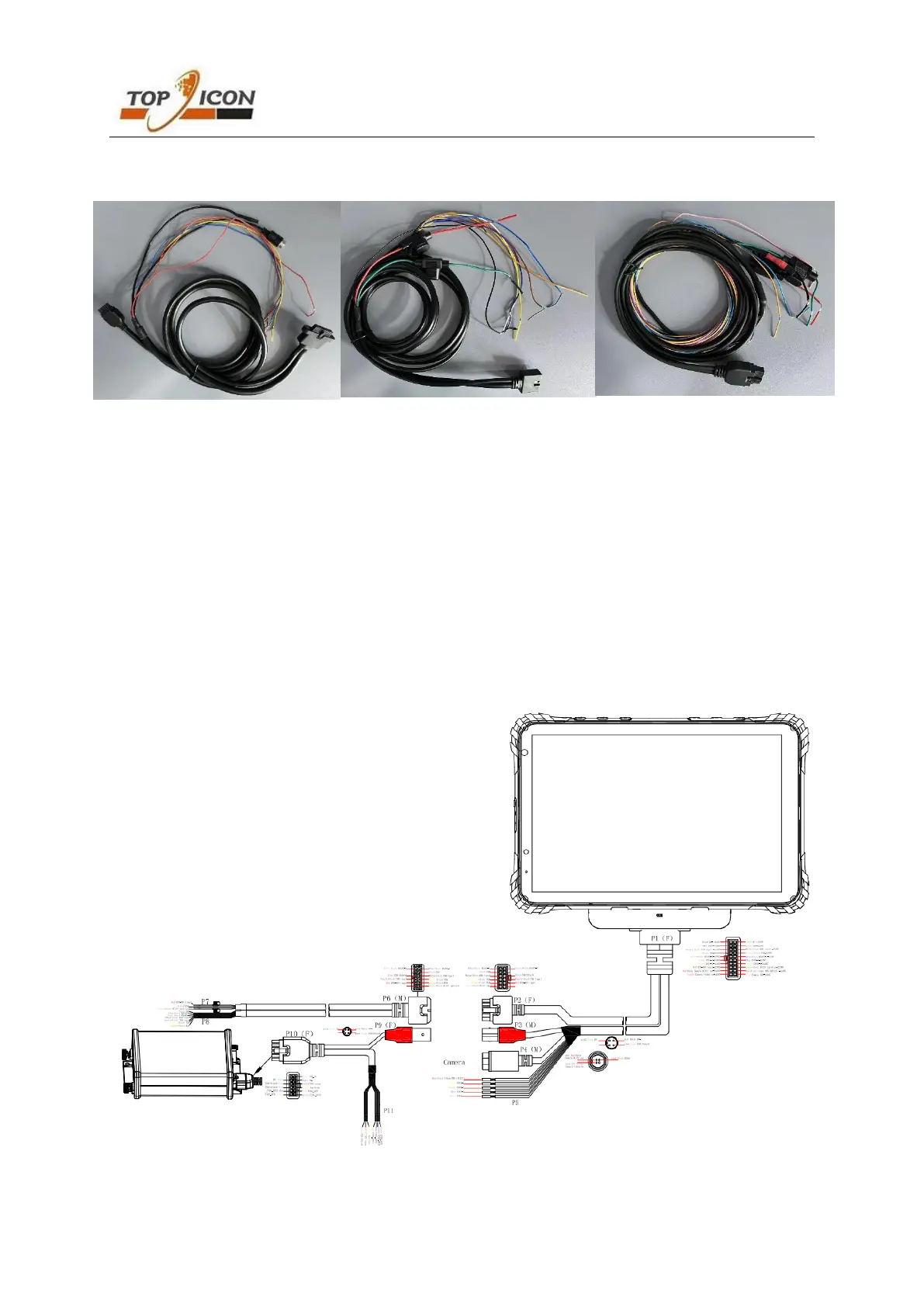

Cable pin assignment overview
