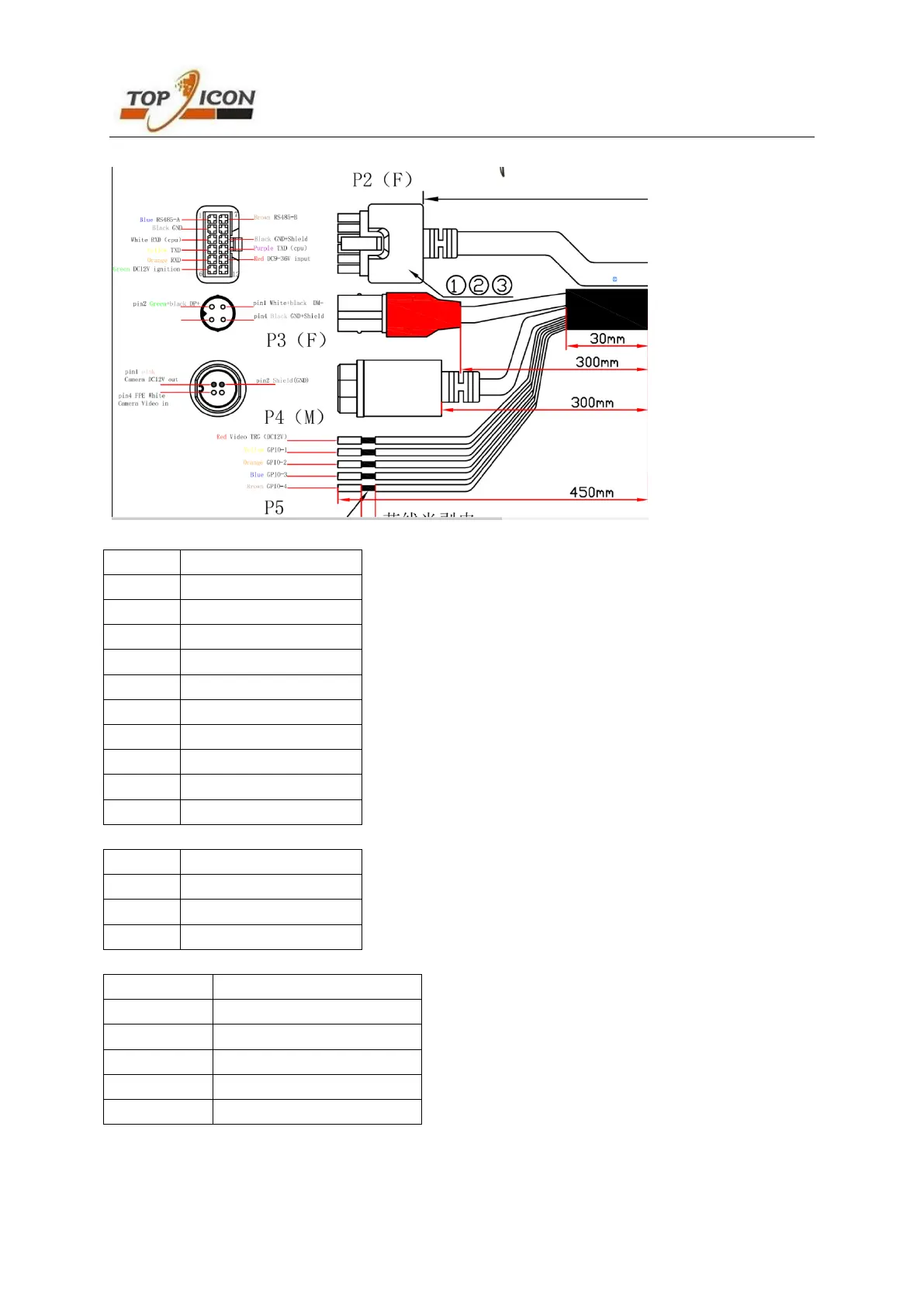

Cable specification below
P2 Power and serial port connector
Pin
Definition
1
RS485-A
2
GND
3
RXD (CPU)
4
TXD (USB)
5
RXD (USB)
6
DC 12V Ignition
7
RS485-B
9
GND
10
TXD (CPU)
11
DC 9-36V input
P3 Camera Hub connector
Pin
Definition
1
DM-
2
DP+
4
GND
P5 GPIO Wires
Wires color
Definition
Red
Video input trriger DC12V
Yellow
GPIO-1 (Input 1)
Orange
GPIO-2 (Input 2)
Bule
GPIO-3 (output)
Brown
GPIO-4 (ADC)
