Topmodel PILATUS B4 - Page 6

Notice Ecotop - Page 6 - Pilatus B4 (2 mètres)
A RAJOUTER POUR ASSEMBLER CE KIT
TO BE ADDED TO BUILD THIS KIT
● Ensemble radio
- 1 émetteur avec au minimum 6 voies. (Recommandé :
JETI DC-16 # 007TDC16NRM1 ou # 007TDC16NRM2)
- 1 récepteur (Recommandé : Jeti Duplex R6 # 007R6)
- 3 servos TOPMODEL 1816 (# 0201816)
- 1 servo TOPMODEL 1516 (# 0201516)
- 1 rallonge de servo de 50 cm ( 0434054-50P)
- 2 rallonges de servo de 10 cm (0434054-10Y & 0434054-10P)
- 2 rallonges de servo de 70 cm (0434054-70Y & 0434054-70P)
● Motorisation
- 1 moteur XPower XC2813/18 LS (# 099C281318LS)
- 1 contrôleur brushless XPower XReg 30 (# 099REG30)
- 1 Pack Lipo 3S 2200 mAh HotLips (# 09122003S1P40)
- 1 XPower FOLDING PROP 10 x 6 (# 099FB1006)
- 1 Porte pales XPower Ø4,0/20mm +5° (# 099H200805)
● Radio set
- 1 Tx with at least 6 channels. (suggested: JETI DC-16
# 007TDC16NRM1 ou # 007TDC16NRM2)
- 1 receiver (Suggested : Jeti Duplex R6 # 007R6)
- 3 servos TOPMODEL 1816 (# 0201816)
- 1 servo TOPMODEL 1516 (# 0201516)
- 1 servo extension 50 cm (0434054-50P)
- 2 servo extensions 10 cm (0434054-10Y & 0434054-10P)
- 2 servo extensions 70 cm (0434054-70Y & 0434054-70P)
● Power system
- 1 XPower brushless motor XC2813/18 LS (# 099C281318LS)
- 1 ESC XPower XReg 30 (# 099REG30)
- 1 Lipo Pack 3S 2200 mAh HotLips (# 09122003S1P40)
- 1 XPower FOLDING PROP 10 x 6 (# 099FB1006)
- 1 XPower H PROP HUB Ø4.0/20mm +5° (# 099H200805)

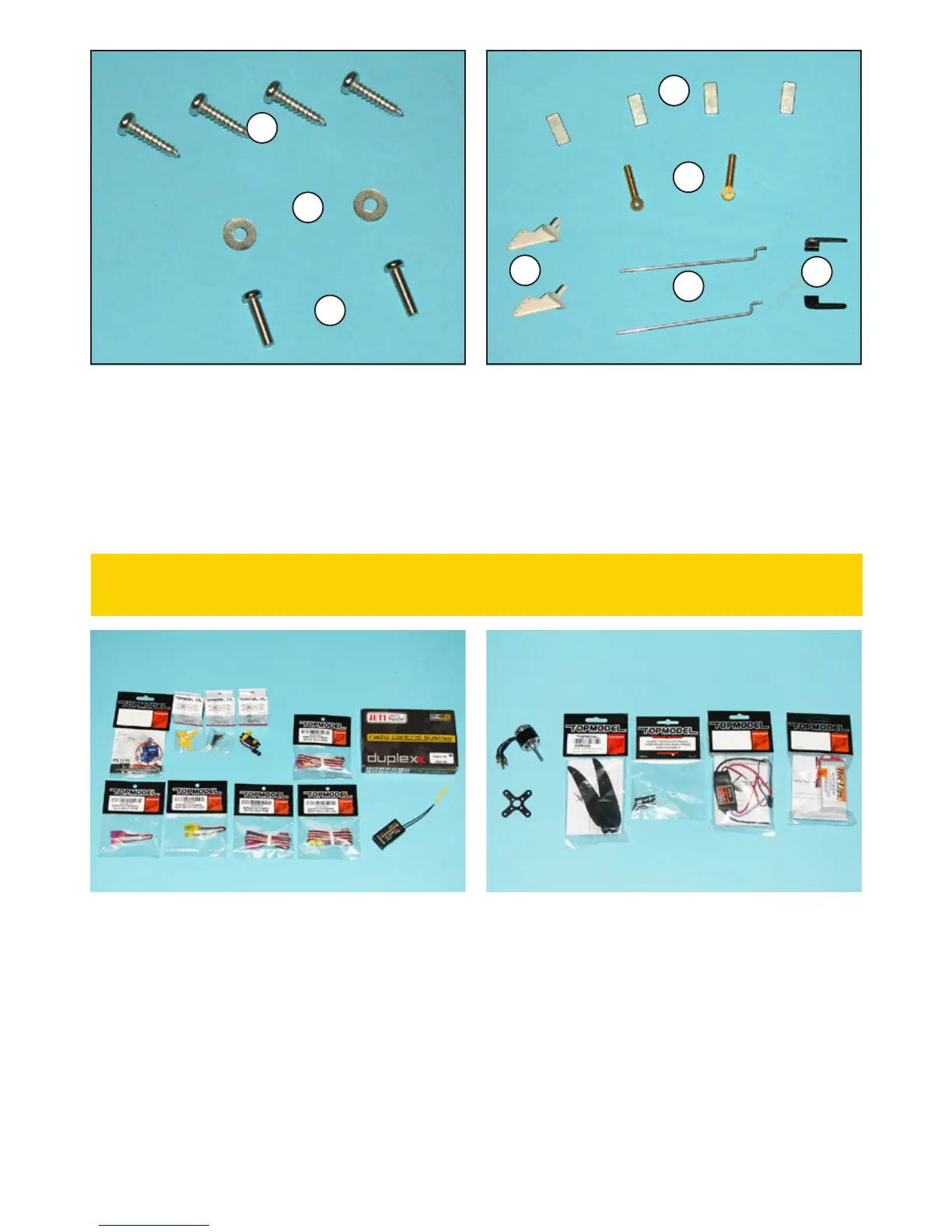

CONTENU DES SACHETS "B"
(B1) Vis autotaraudeuse de 3 mm ............................................. 4
(B2) Rondelle plate de 3 mm ........................................................ 2
(B3) Vis M3 x 12 mm ....................................................................... 2
(B4) Aimant ........................................................................................ 4
(B5) Guignol de profondeur et direction ................................ 2
(B6) Guignol d'aileron .................................................................... 2
(B7) Commande d'aileron .............................................................. 2
(B8) Verrou rapide plastique ...................................................... 2
"B" BAGS CONTENT
(B1) 3 mm self tapping screw ...................................................... 4
(B2) 3 mm flat washer ................................................................... 2
(B3) M3 x 12 mm screw .................................................................. 2
(B4) Magnet ........................................................................................ 4
(B5) Elevator and rudder control horn ................................... 2
(B6) Aileron control horn ............................................................. 2
(B7) Aileron linkage ....................................................................... 2
(B8) Quick snap lock ....................................................................... 2
B1
B2
B4
B5
B6
B7
B8
B3
