Topper Topaz 16C - Page 10

SPINNAKER HALYARD continued

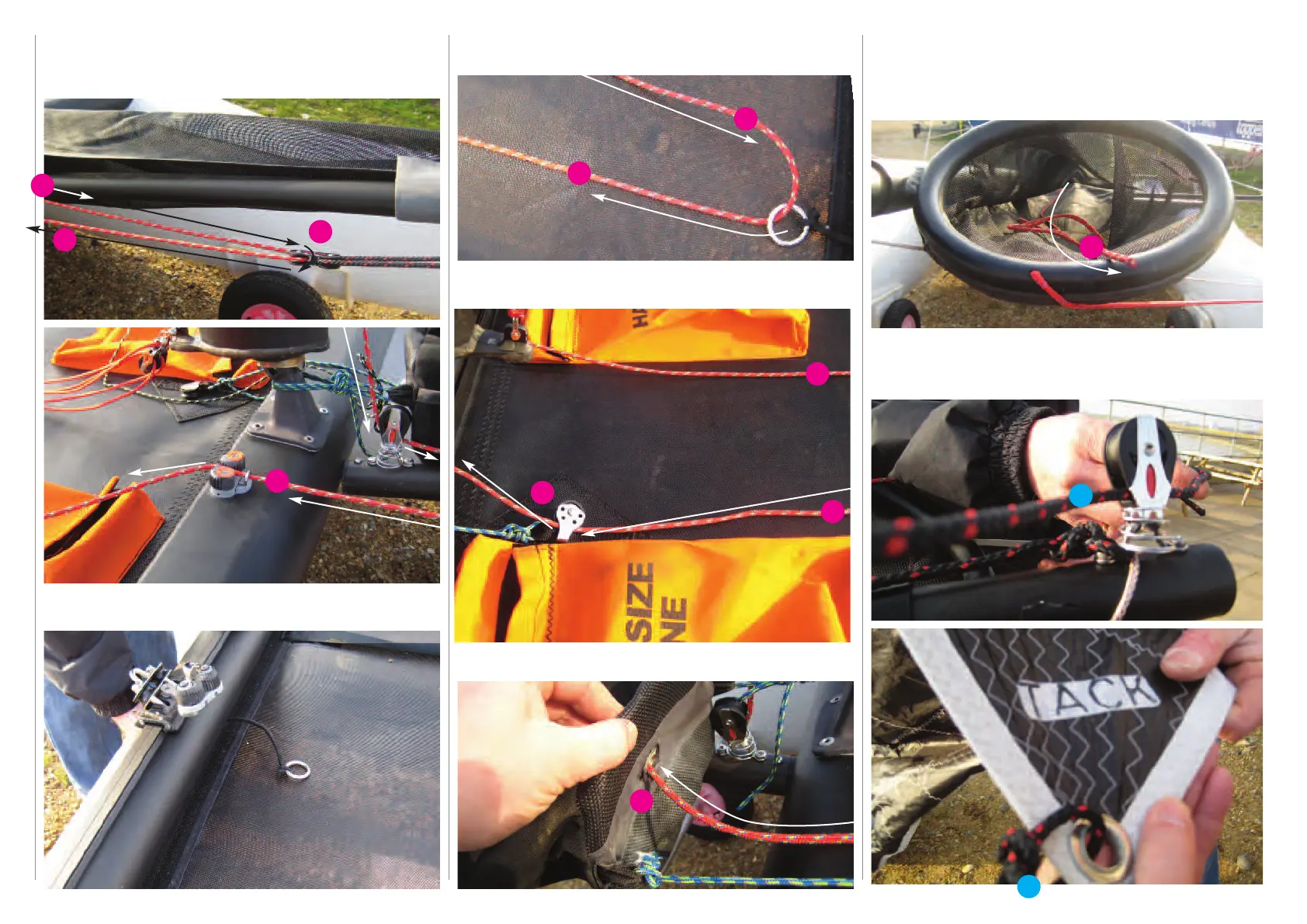

C. (1) Feed spinnaker halyard forward and (2) through double
block and then (3) back to double cleat on front crossbeam aside
mast foot.
D. Attach ring on shockcord through back/ centre of trampoline
and tie off on eyelet on back of rear crossbeam/ centre.
E. Feed spinnaker halyard (4) back along trampoline, through
steel ring.
F. Then forward (5) to the guide pulley (6) on trampoline front
(by capsize line pocket).
G. (7) Then feed spinnaker halyard into back of spinnaker sock.
H. (8) Feed end of spinnaker halyard through the spinnaker chute
until the tail comes out the front of the chute. (Tip; it is easier to
do this by fishing the spinnaker halyard out of the chute with a
tiller arm or similar long object in order to feed it from the back of
the chute to the front).
SPINNAKER SAIL
A. To attach spinnaker, tie (T) tack line (attached to spinnaker
pole block) to ‘Tack’ of spinnaker sail with a bowline.
1
2
3
3
4
5
5
4
6
7
8
T
T
10
