TOPAZ16
TOPAZ 16
RIGGING INSTRUCTIONS
BEAMS

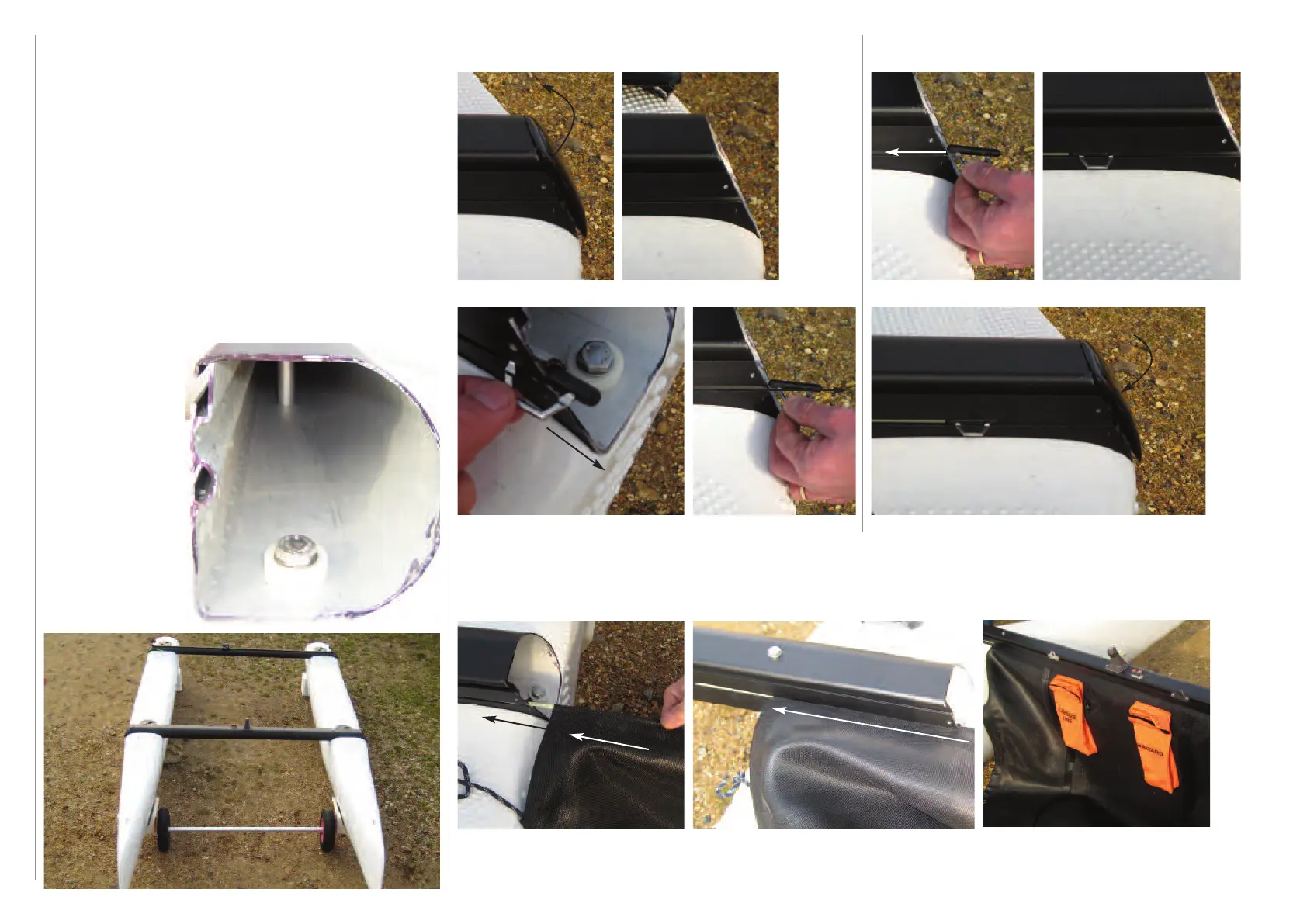

Lay the two hulls into the launching trolley cups bow first. This
will hold the hulls in the correct position to connect to the main
and rear beam.
8x lock nuts, washers and 8mm x 15mm s/s bolts are supplied.
You wll require assisstance to bolt the beams into the hulls. The
main beam has a ball deck step and is shaped to fit snugly into
the front socket of the hulls. The rear beam is smaller with a
traveller attached and a row of small plastic wheels along it’s
length. Again this is shaped to fit perfectly into the rear beam
sockets with the white plastic wheels facing aft.
Feed the bolts into
the holes in the hulls
going through the
washer and then
attach lock nut and
tighten.
Attach the main beam
first followed by the
rear beam.
TRAMPOLINE
A. Remove the beam end cap from the main beam.
B. Remove slugs from front beam.
C. Ensure that the 5mm glass tube is inserted into the sleeve
that runs along the front of the trampoline.
Insert 5mm glass tube and trampoline into the main beam.
Then slide across the length of the beam until the trampoline is
positioned centrally.
D. Re-insert slugs to the right and left of the trampoline
to hold it in position.
E. Re-affix beam end caps to secure trampoline in position.
