TOPTEK TOPVERT L1 Series User Manual

TOPVERT L1 Series

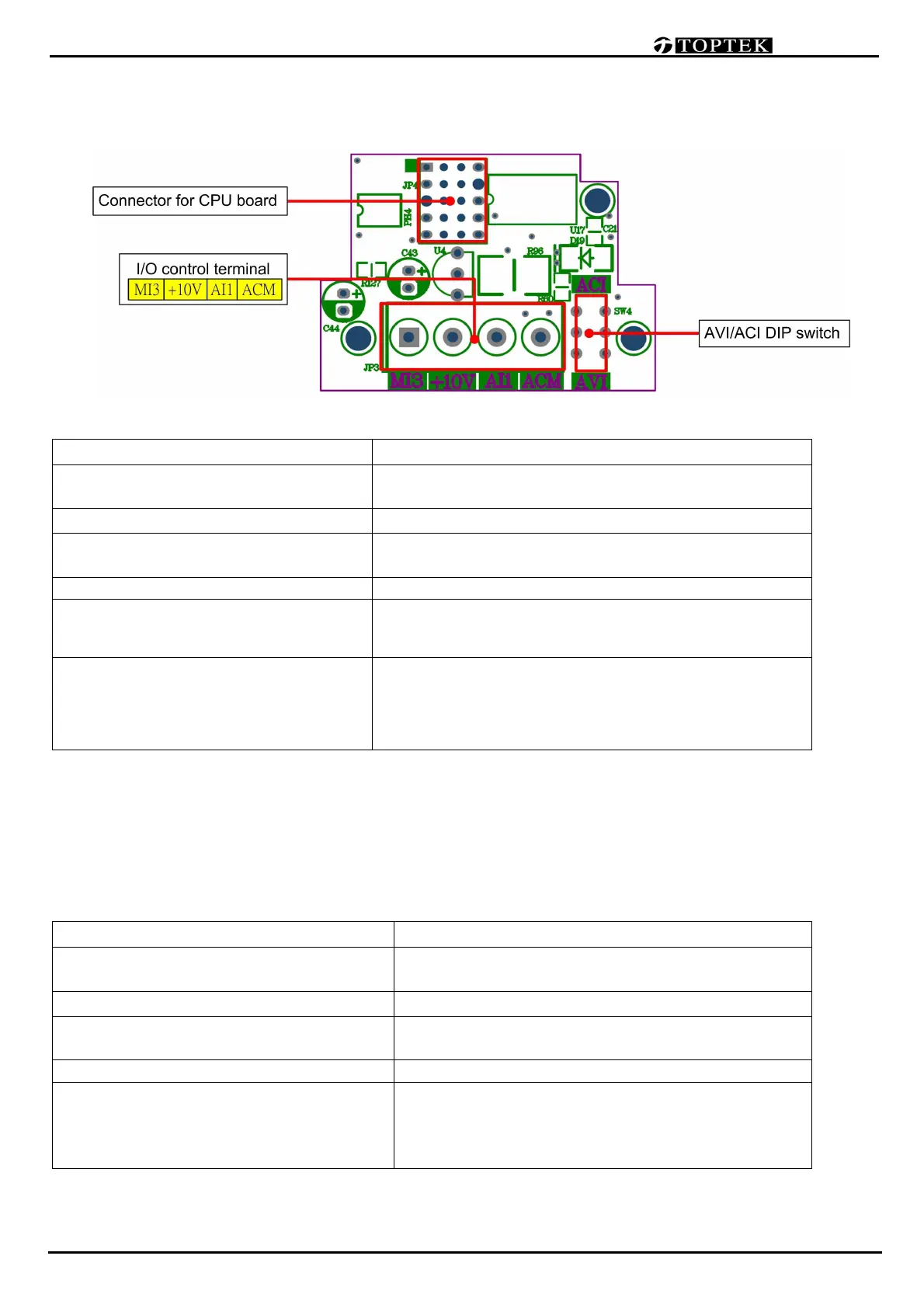

E- 9
Option parts 2:
AI/DI Expansion Card
Multi-Function Operating Explanations
ITEM Function
Multi-Function input (MI1、MI2、MI3)
Multi-Function setting:
1.Factory default 2.Customer assign
Running command (FWD、REV) Forward/Stop、Reverse/Stop
Relay I/O(R1A、R1B、R1C)
Multi-Function setting:
1.Factory default 2.Customer assign
PU port(Key pad input) Connecting with key pad (PU-01 AND PU-05)
External Analog Input(AI)
AI1 Multi-Function terminal
Multi-Function setting:
1.Factory default 2.Customer assign
AI/DI Expansion Card
Selected circuit control or voltage control with DIP
switch
Set at ”AVI”,Input DC 0~10V to speed up/low。
Set at ”ACI”,Input DC 4(0)~20mA speed up & low。
Option parts 3:
RS-485 Serial port
Multi-Function Operating Explanations
ITEM Function
Multi-Function input (MI1、MI2)
Multi-Function setting:
1.Factory default 2.Customer assign
Running command (FWD、REV) Forward/Stop、Reverse/Stop
Relay I/O(R1A、R1B、R1C)
Multi-Function setting:
1.Factory default 2.Customer assign
PU port(Key pad input) Connecting with key pad (PU-01 AND PU-05)
RS-485 Serial port terminal (SG+、SG-)
RS-485 serial port,It is used Modbus networks
protocol, 2 pin easy plug in/out terminal. Also you
can buy the TB/RJ45 adaptor from us when you
need
