Option parts 4 :

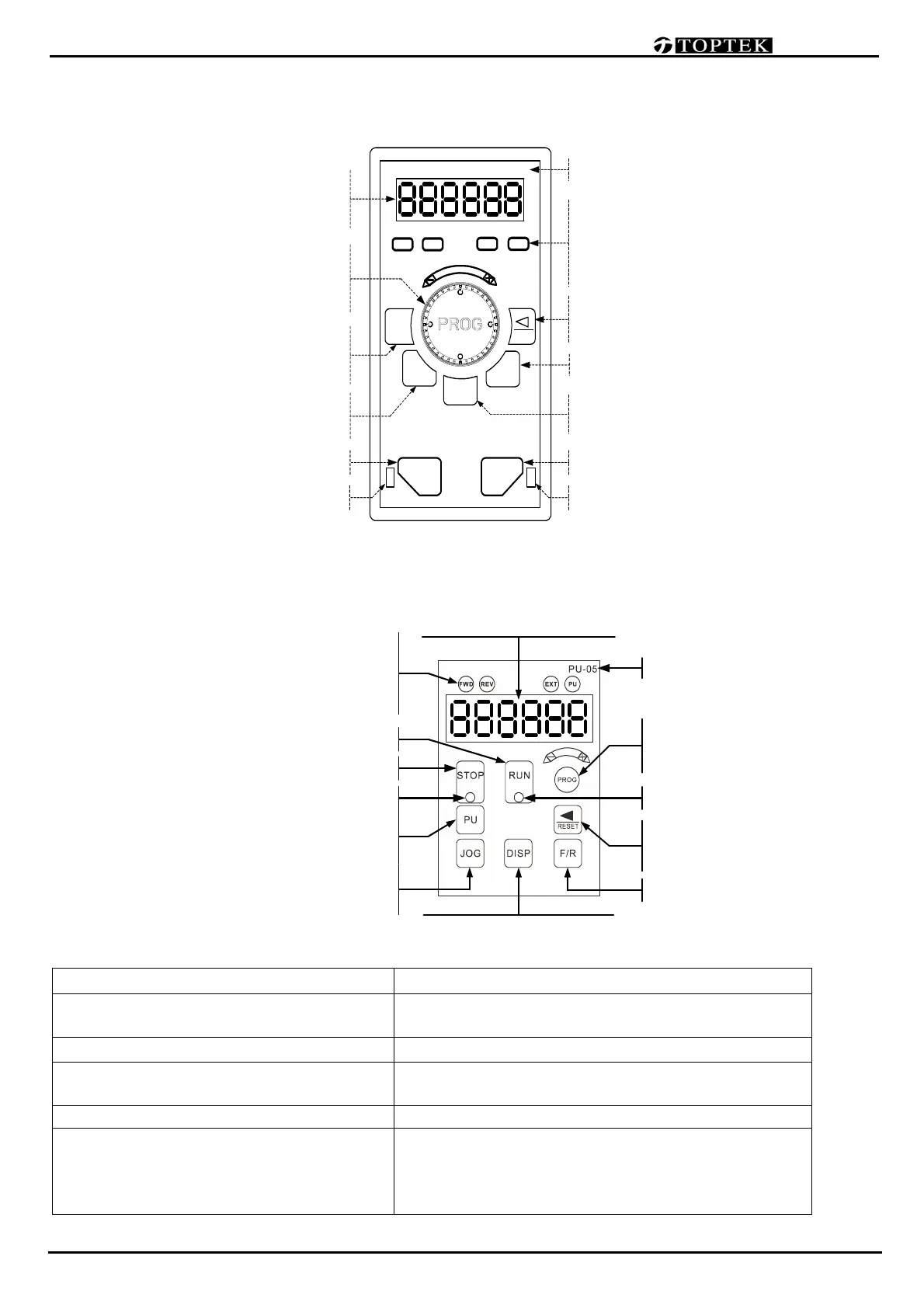

Digital Keypad PU-01
Digital Keypad PU-01 function descriptions
Digital Keypad PU-05
Digital Keypad PU-05 function descriptions
Multi-Function Operating Explanations
ITEM Function
Multi-Function input (MI1、MI2)
Multi-Function setting:
1.Factory default 2.Customer assign
Running command (FWD、REV) Forward/Stop、Reverse/Stop
Relay I/O(R1A、R1B、R1C)
Multi-Function setting:
1.Factory default 2.Customer assign
PU port(Key pad input) Connecting with key pad (PU-01 AND PU-05)
Key pad-- PU-01/PU-05
Advence used 360 degree encoder switch. Easy
and fast to adjustment the parameters. Our
resolution minimum is 0.01Hz. resolved the
resolution problem of VR.
FWD REV
EXT PU
Part number
Status Display……
…………
…… Display the driver's current status
When "PU" lights, RUN/STOP is controlled by PU-01.
When "PU" is dark, RUN/STOP is set by Pr0-19.
When "EXT" lights, frequency command is set by Pr0-18.
When "EXT" is dark,frequency command is controlled by PU-01
When "REV" lights, Drive is in reverse operation.
When "FWD" lights, Drive is in forward operation.
Left /Reset key
Moves cursor to the left.
Reset errors.
FWD/REV Direction key
Display Selection key
Changes between different display mode.
STOP key
Programming Unit key
Enable the keypad.
It can determine the source of RUNSTOP
RUN key
PU-01
PU
JOG
DISP
F/R
RUN
STOP
RUN indication STOP indication
RESET
Main Display
Display the drive status such as frequency,
current, voltage, parameter setting valueand
alarm contents.
Data modification/Program Dial
Rotate to modification for settings, parameters
and output frequency adjustment.
Press to Read or Enter datas
Jog Operation key
Press this key to execute JOG frequency opeation
Left /Reset key
Moves cursor to the left.
Reset errors.
FWD/REV Direction key
STOP key
Programming Unit key
Enable the keypad.
It can determine the source of RUN/STOP
Jog Operation key
Press this key to execute
JOG frequency opeation
RUN key
RUN indicationSTOP indication
Data modification/Program Dial
Rotate to modification for settings, parameters
and output frequency adjustment.
Press to Read or Enter datas
Part number
Status Display……
…………
…… Display the driver's current status
When "FWD" lights, Drive is in forward operation.
When "REV" lights, Drive is in reverse operation.
When "EXT" lights, frequency command is set by Pr0-18.
When "EXT" is dark,frequency command is controlled by PU-05
When "PU" lights, RUN/STOP is controlled by PU-05.
When "PU" is dark, RUN/STOP is set by Pr0-19.
Main Display
Display t he drive status such as frequency,
current, voltage, Parameter setting value and
alarm contents.
Display Selection key
Changes between different display mode.
