BRACKET SUB ASSEMBLY

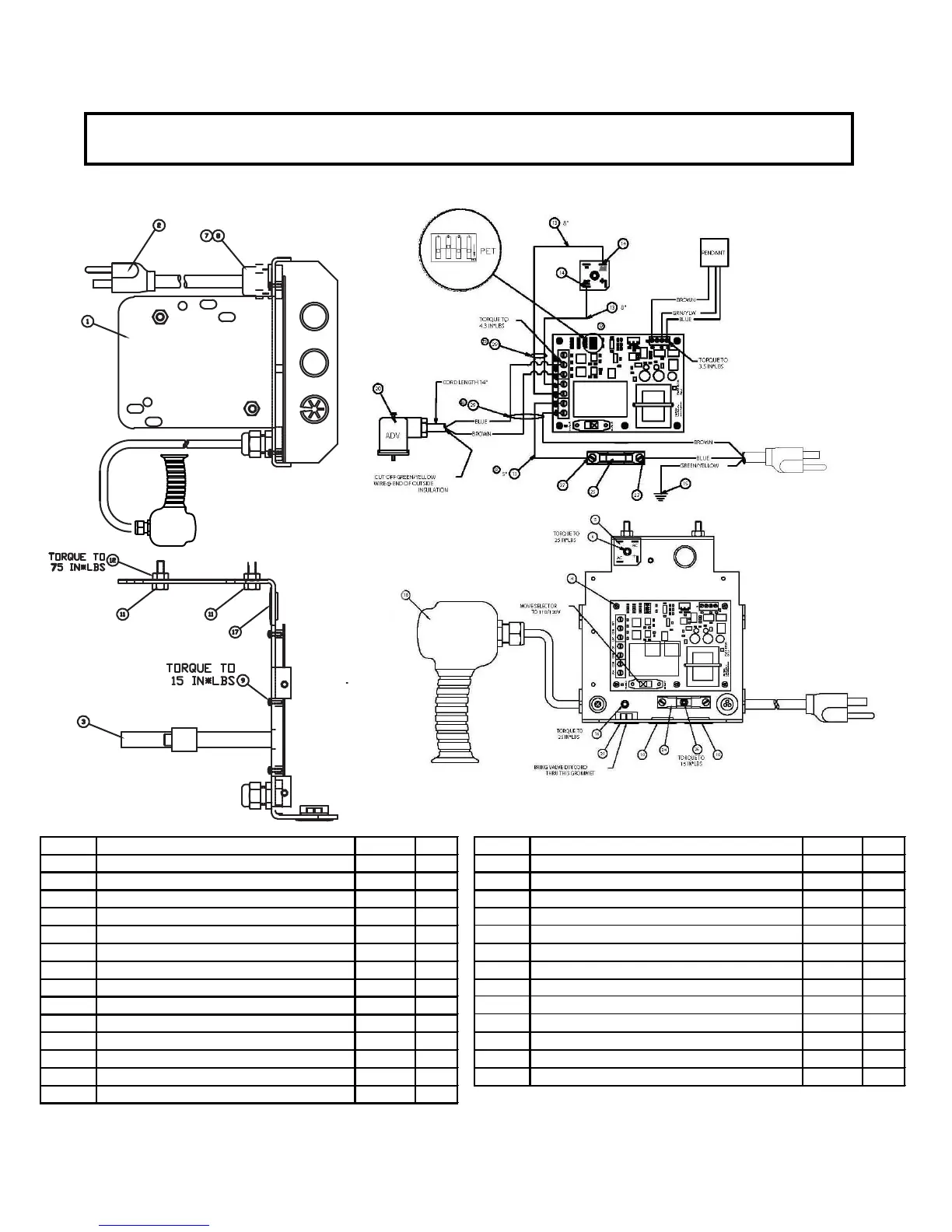

(46281) BRACKET SUB ASM. 115V.
Bracket Sub
Assemblies
EP1000 Torque Wrench
Power Pump
PENDANT DECAL KIT (* = COMPONENTS) -- PART # 54489
ITEM # DESCRIPTION PART # QTY. ITEM # DESCRIPTION PART # QTY.
01 MOUNTING BRACKET G3/G5 46233 1.00 15 RING TERMINAL 1/4" 69917 1.00
02 PLUG AND CORD ASSY 68595 1.00 16 SHCS #10-32X1/4" LG PLATED 45175 1.00
03 HOSE CLAMP 69235 1.00 17 GROMMET 7/8" HOLE 69855 1.00
04 CIRCUIT BOARD BASIC 46196 1.00 18 PART # S-DS1042900 * 1.00
05 BRIDGE RECTIFIER 25A 68623 1.00 1.00
06 SHCS #10-32 X 1/2 66805 1.00 20 MOLDED DIN CONNECTOR W/ CORD 46327 1.00
07 FITTING,CORD L-TIGHT 68375 1.0
0 21 PUSH THRU BUSHING 46420 1.00
08 LOCKNUT 1/2 INCH 85510 1.00 * 1.00
09 MACHINE SCREW W/ LOCK WASH 46248 5.00 * 1.00
10 HOLE PLUG 7/8" 69652 2.00 24 FUSE HOLDER 30 AMP 46481 1.00
11 HHCS 1/4-20 X .75 PLT 65891 2.00 25 FUSE 25 AMP 46482 1.00
12 HEX NUT 1/4-20 PLATD 93849 2.00 26 SHCS #6-32 x 1/4 LONG 46506 1.00
13 WIRE #14 BLACK 68261B 2.00 27 SPADE TERMINAL 68116 2.00
14 QUICK DISCON. FL
AG BLUE 44491 2.00
22
(46281) BRACKET SUB ASM. 115V.
EP1000
