12

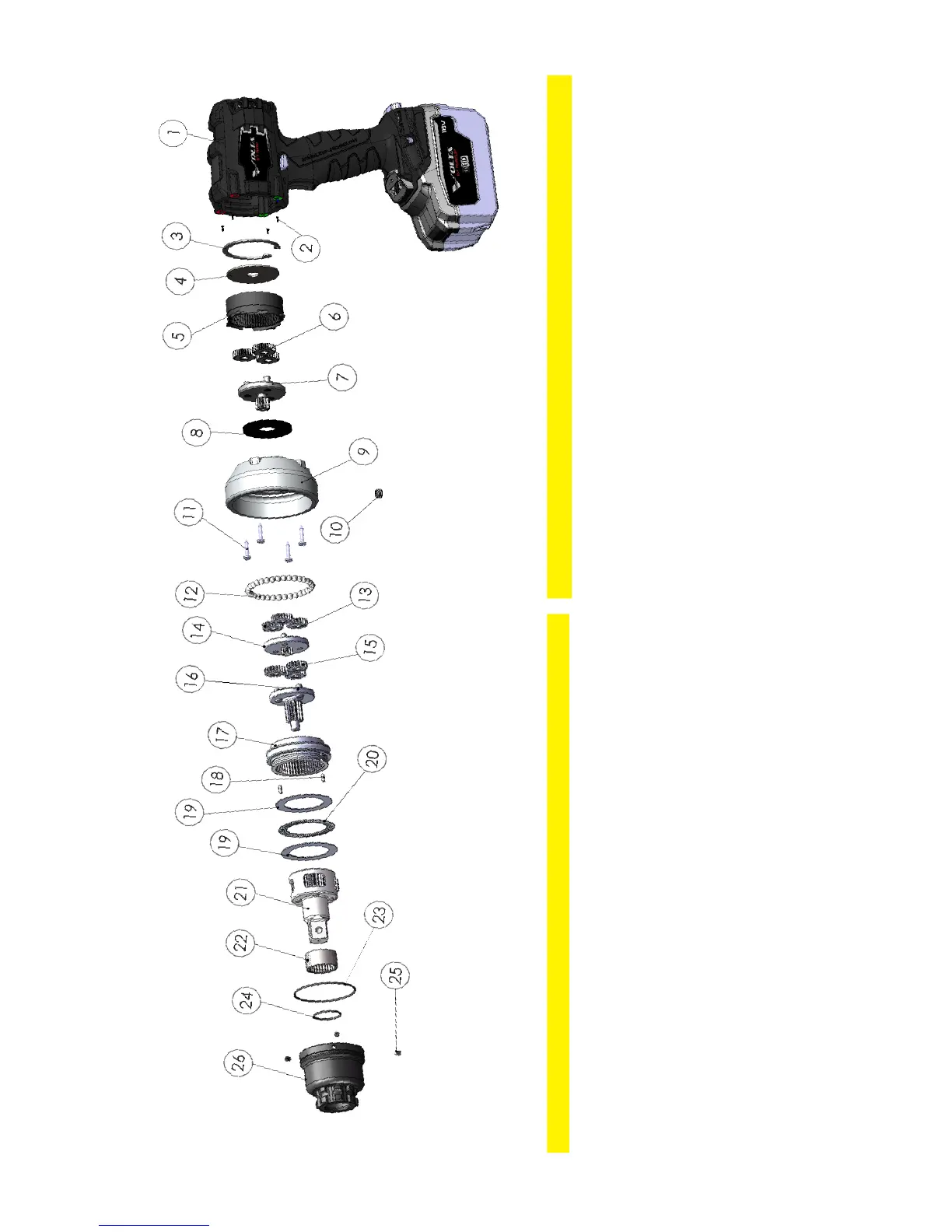

ITEM DESCRIPTION PART # QT Y.
1 VOLTA HANDLE VT-DRIVE HANDLE 1
2 BHCS VT-ADPTR-8 4
3 RETAINING RING VT-ADPTR-9 1
4 RETAINING PLATE VT-ADPTR-42 1
5 RING GEAR VT-ADPTR-32 1
6 PLANETARY GEARS VT-ADPTR-52 3
7 GEAR CARRIER VT-ADPTR-22 1
8 NYLON WASHER VT-ADPTR-11 1
9 GEARBOX ADAPTER VT-ADPTR-6 1
10 BALL RETAINER VT-ADPTR-13 1
11 HOUSING SCREWS VT-ADPTR-14 4
12 STEEL BALL RP-CM-BB 35
13 SPUR GEAR RP-05-ST-G 3
VT-500 Series Wrench
ITEM DESCRIPTION PART # QT Y.
14 1ST STAGE GEAR CAGE RP-05-ST1 1
15 SPUR GEAR RP-05-ST-G 3
16 2ND STAGE GEAR CAGE RP-05-ST2 1
17 HIGH SPEED ANNULUS RP-05-HSA 1
18 LONG HARDENED DOWEL RP-05-DOWEL 2
19 THRUST WASHER RP-05-TW 2
20 NEEDLE ROLLER THRUST BEARING RP-05-NRB 1
21 DRIVE STAGE ASSEMBLY RP-05-DSTA 1
22 MAIN BEARING RP-05-MB 1
23 MAIN ANNULUS O-RING RP-CM-OR-MA 1
24 DRIVE ANNULUS O-RING RP-05-OR-DA 1
25 DRIVE ANNULUS SET SCREW RP-CM-SS-DA 4
26 DRIVE ANNULUS RP-05-DA 1
