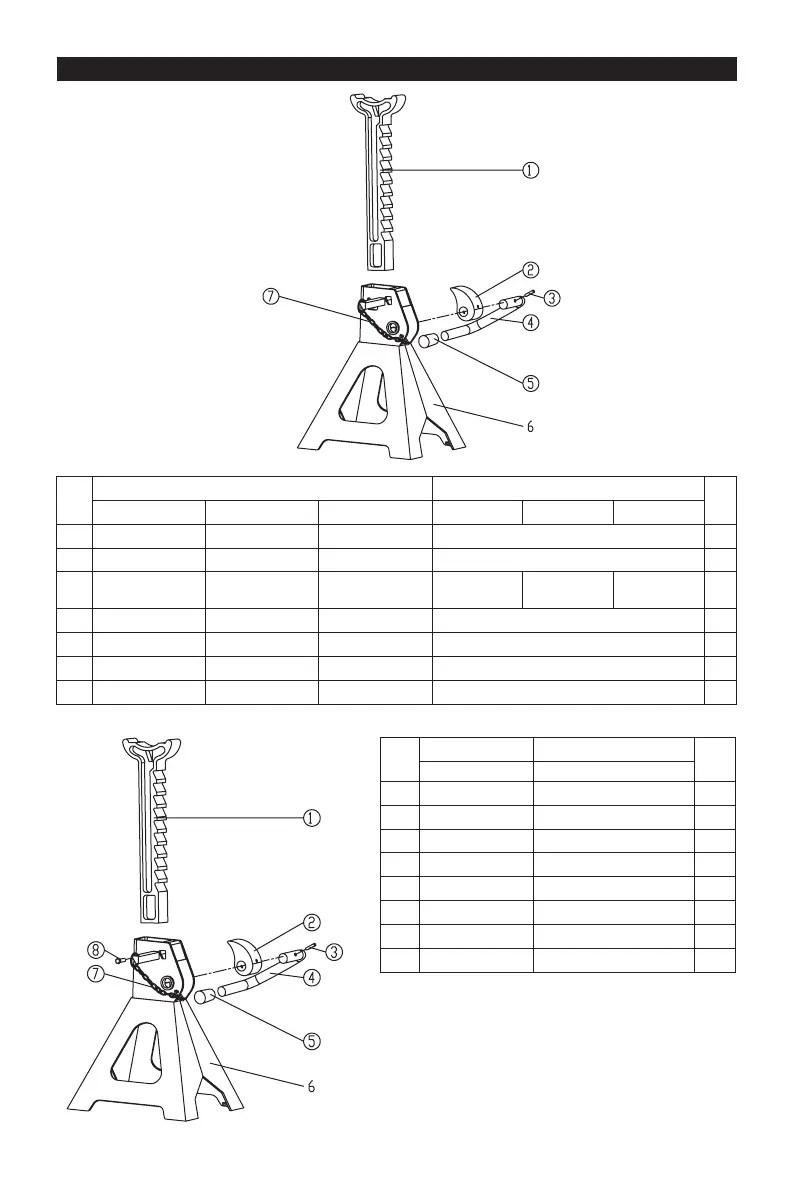

Torin BIG RED T42002A - ASSEMBLY DIAGRAM

88
Ref.
Part# Description
Qty
T42002A T43002A T46002A T42002A T43002A T46002A
1 T42002C-1 T43002C-1 T46002C-1 Ratchet bar 1
2 T42002-4 T43002-4 T46002-4 Locking pawl
3 GB879-4X25 GB879-4X30 GB879-4X30
Spring pin
Ø4x25mm
Spring pin
Ø4x30mm
Spring pin
Ø4x30mm
1
4 T42002-7 T42002-7 T46002-7 Locking handle 1
5 T42002-6 T42002-6 T46002(CQ)-6 Handle sleeve 1
6 Base frame 1
7 T42002C-4(ASM) T46002C-3(ASM) T46002C-3(ASM) Safety pin assembly
ASSEMBLY DIAGRAM
Safe Operating Temperature is between 40°F – 105°F
(4°C - 41°C)
Ref.
Part# Description
Qty
T412002A T412002A
1 T412002-1 Ratchet bar 1
2 T412002-4 Locking pawl 1
3 GB879-5X35 Spring pin Ø5x35mm 1
4 T412002-7 Locking handle 1
5 T412002-6 Handle sleeve 1
6 Base frame 1
7 T412002C-2(ASM) Safety pin assembly 1
8 GB5783-M8X16 Hex head bolt M8x16mm 1
