Torin T32052 - Equipment Use and Setup; Load Examples and Grade Limits; Winding the Cable

11
EQUIPMENT USE
WINDING THE CABLE
GENERAL SAFETY RULES
IMPORTANT SAFETY CONSIDERATIONS
These gures do not include a coefcient of friction. Loads that do not have wheels or some smooth means
of rolling, will require signicantly more power to pull, so loads will have to be much lighter than the 4,000 lb
example above.
1. Fish the rope through the conduit.
2. Set up the cable puller. Refer to Typical Setups
illustrations and instructions in this manual.
3. Set the rope ramp as follows:
a. Wind the rtohpee several times around th capstan.
b. Pull the ramp away from the mounting plate and
rotate it until Surface A contacts the rope.
c. Push the rope toward the mounting plate and
rotate it counterclockwise until it locks into place
tight.
d. Secure the the rope and connector fittings that
anchor the cable.

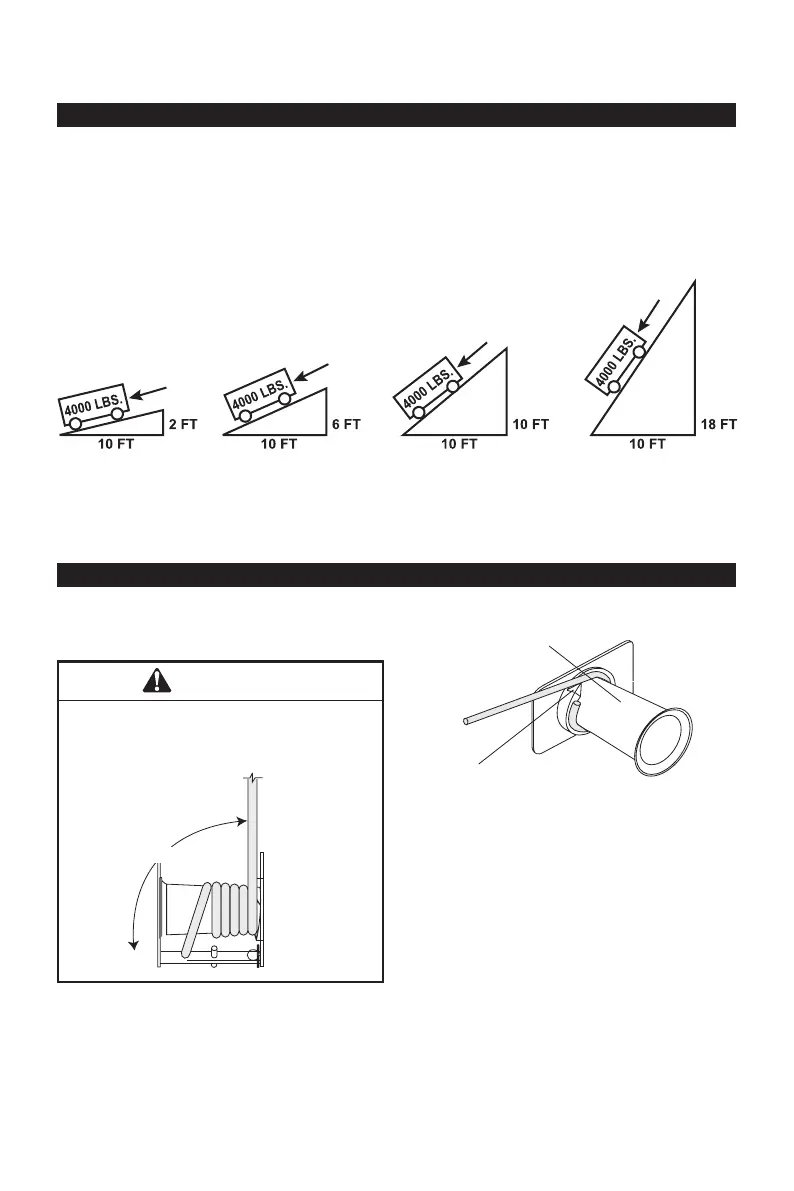

EXAMPLES OF LOAD
% GRADE = FT.RISE/100FT.
DO NOT EXCEED 180% GRADE WHEN PULLING ANY WEIGHT LOAD.
THIS PRODUCT IS NOT DESIGNED FOR LIFTING.
800 LBS
20% Grade 60% Grade 100% Grade 180% Grade
2140 LBS
2880 LBS
3540 LBS
Set up the cable puller so that the rope will
approach the capstan at an angle of 90° (±5°).
Angles outside of this range may cause the rope
to overlap.
WARNING
90°
(±5°)
Capstan
Surface A
