10
Cleaning the Filter
The post-motor HEPA lter is located in the Powerfoot of your vacuum clean-
er. It should be checked often, and cleaned when the post-motor HEPA lter
becomes dirty.
1. To clean post-motor HEPA lter, remove the screw with a Phillips head
screwdriver.
2. Lift out lter cover.
3. Remove post-motor HEPA lter and blow out with air.
4. Reinstall post-motor HEPA lter.
5. Replace lter cover by sliding in the two tabs at the top of the lter cover
and centering over the screw hole.
6. Replace screw.

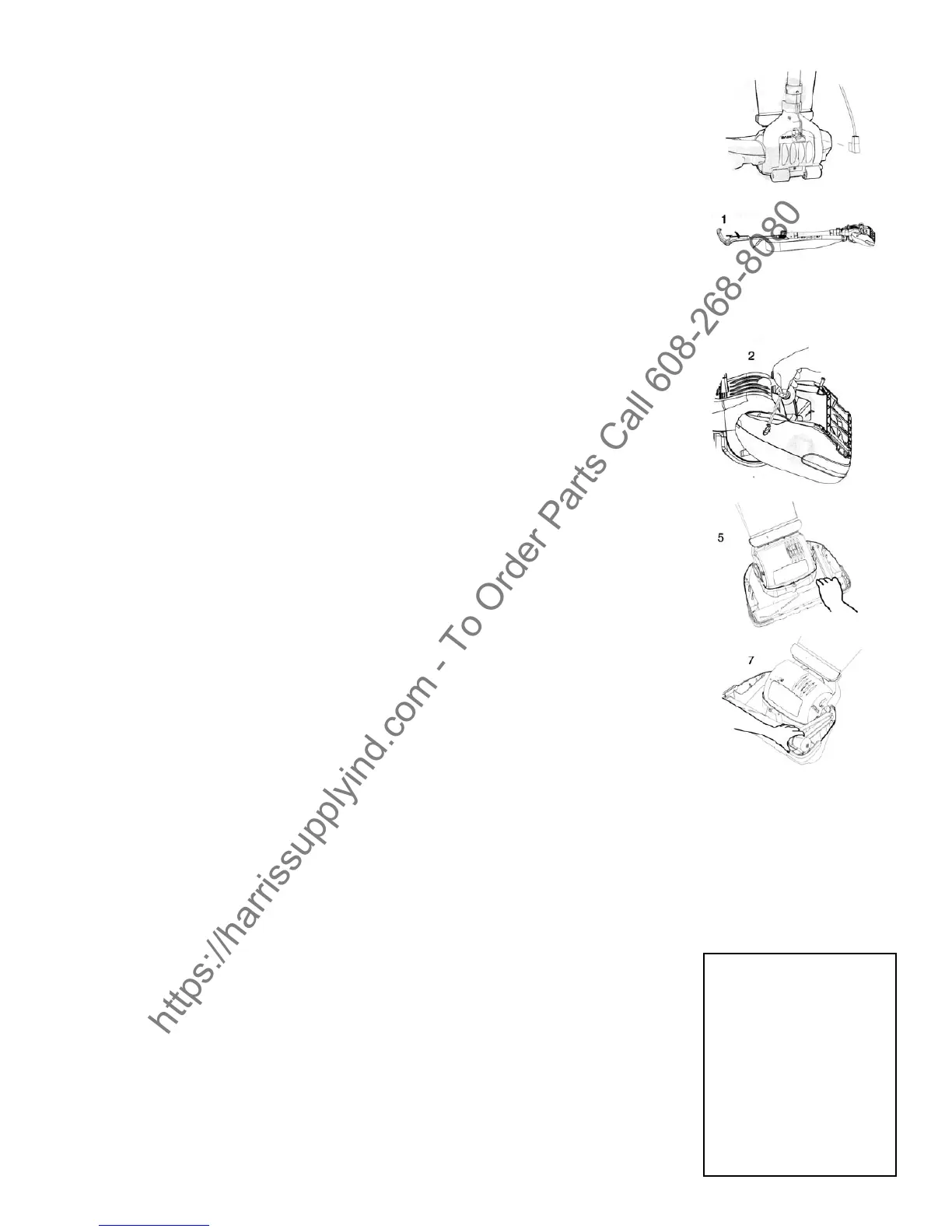

Cleaning the Rotating Cleaning
Brush/Replacing the Drive Belt
Check the Rotating Cleaning Brush and Drive Belt regularly for wear or dam-
age. Keep the Rotating Cleaning Brush ends free of string, hair, and carpet
bers. These can become entangled and reduce the vacuum’s cleaning ef-
fectiveness.
NOTE: The Rotating Cleaning Brush can most often be cleaned without
removal from the vacuum. If there is an excessive amount of hair and debris,
remove the Rotating Cleaning Brush for proper cleaning.
1. Unplug the vacuum and turn face down on a at surface.
2. Remove all 3 screws from the bottom of the Powerfoot.
3. Grip both the Top Cover and base while turning unit back over. Lift off Top
Cover.
4. Check Drive Belt. If it is broken or damaged, remove Rotating Cleaning
Brush and replace Drive Belt.
WARNING: To avoid electrical shock or injury from moving parts, always turn
OFF the Power Switch and unplug the Power Source Plug before perform-
ing maintenance or trouble shooting. Always unplug by grasping the Power
Source Plug; NEVER pulling on the Power Cord to unplug.
5. To remove the Rotating Cleaning Brush, pull the right side of the Rotating
Cleaning Brush toward the front of the Powerfoot as you lift slowly.
6. Clean off Rotating Cleaning Brush as necessary.
7. Place existing or new Drive Belt over Rotating Cleaning Brush and the
motor shaft. Insert the end cap pin on the left of the Rotating Cleaning Brush
into the slot on the Powerfoot and slide the end cap pin on the right end of
the Rotating Cleaning Brush in to the slot in the Powerfoot and lower until it
clicks into place.
8. Make sure the Furniture Protection Guard is still intact.
9. Align the 3 tabs on the Top Cover with the 3 slots in the Powerfoot. Press
into place, making sure the Furniture Protection Guard is on the outside.
10. Turn vacuum cleaner face down.
11. Reinstall the 3 screws beginning with the center screw.
WARNING: To avoid elec-
trical shock or injury from
moving parts, always turn
OFF the Power Switch
and unplug the Power
Source Plug before per-
forming maintenance or
trouble shooting. Always
unplug by grasping the
Power Source Plug;
NEVER pulling on the
Power Cord to unplug.
