7

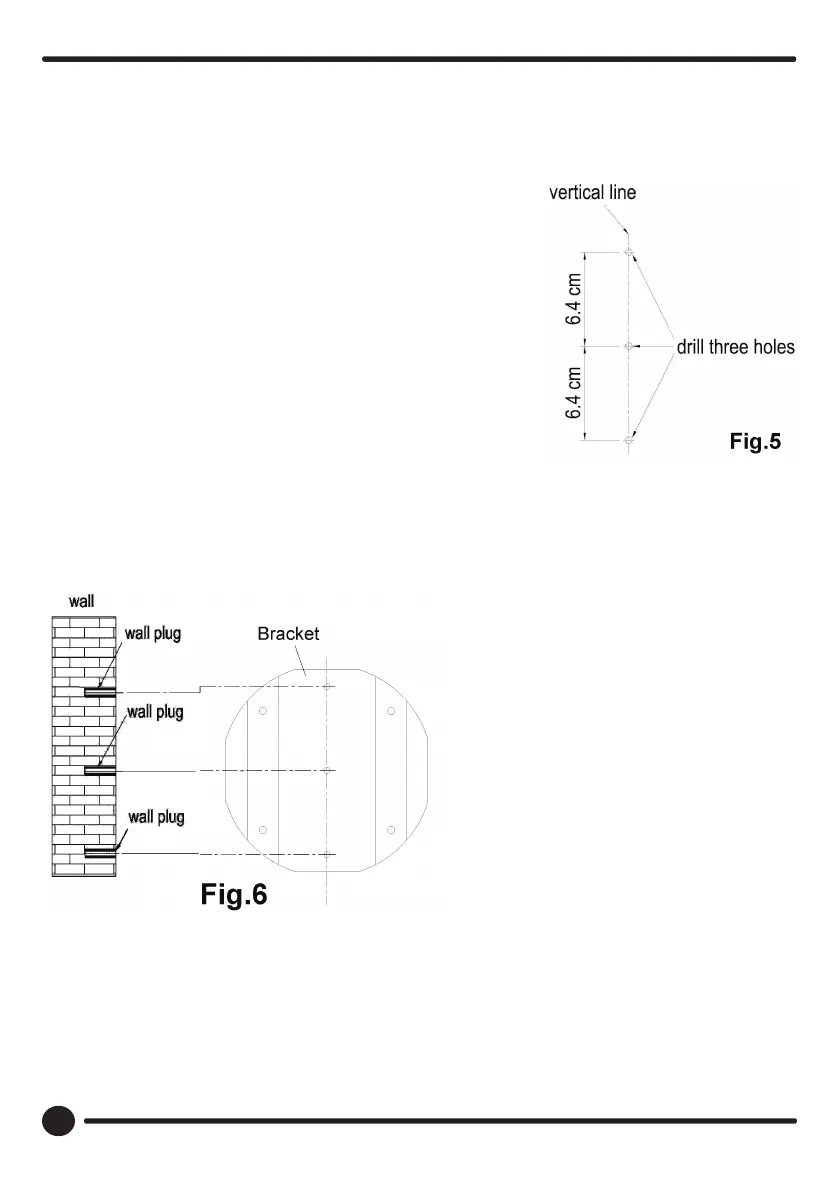

2. Drill three holes in the vertical line with a diameter as that of the wall plugs
provided. space between two holes is 6.4 cm. (Fig.5).
3. Insert each hole a wall plug . ( Fig.6)
4. Put bracket on wall, align its three holes at three wall plugs (Fig.6 )
5. Drive three tapping screws provided through the three holes of the bracket into
the wall plug and secured it firmly against the wall .(Fig.6)
6. Drive two screws provided ( M4 ) into two upper holes in the bracket, leaving a
gap of 5mm between the screw head and the bracket (Fig. 7)
7. Hang on wall the unit align its two key holes at two screws in bracket .(Fig.8)
8. Drive two screws provided ( M4 ) through the low two holes of the base into the
bracket and secured the unit firmly against the bracket.(Fig.8)
9. Tighten the two upper screws through the base upper hole also.(Fig.8)
