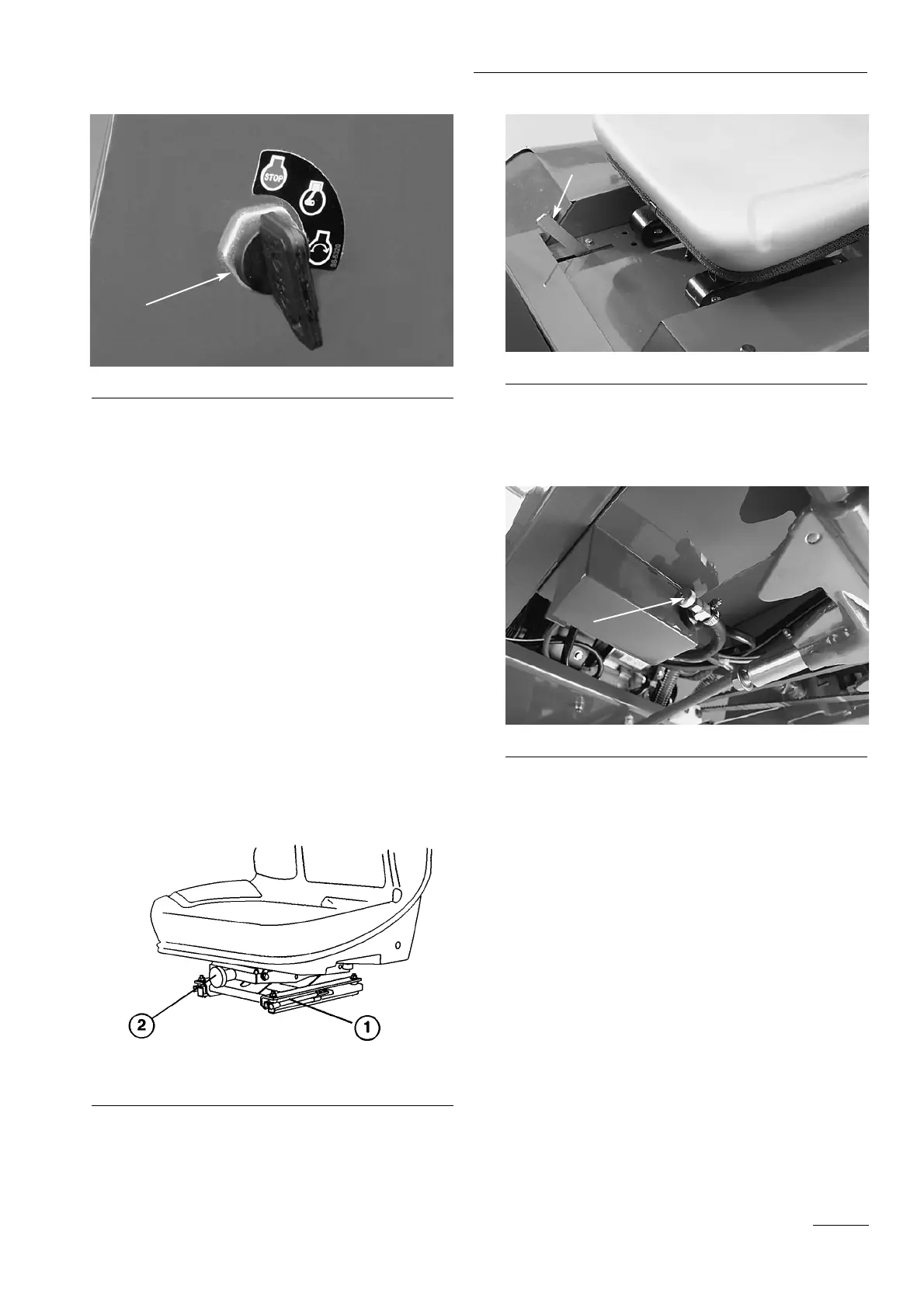

Figure 9
1. Ignition switch
Seat Adjustments
Fore and Aft Adjustment—Move the lever on the side
of the seat outward, slide the seat to the desired position
and release the lever to lock the seat into position.
Deluxe Seat Adjustments (Fig. 10)
Fore and Aft Adjustment—Pull the handle on the left
side of the seat assembly outward. Release the handle to
lock the seat position.
Operator Weight Adjustment—Turn the knob
clockwise to increase tension, counterclockwise to
decrease tension.
Figure 10
1. Fore and aft lever
2. Weight adjustment lever
Cutting Unit Lock-up Lever (Fig. 11)—Locks the rear
cutting unit in the raised position.
Figure 11
1. Cutting unit lock-up lever
Fuel Valve (Fig. 12)—Close the fuel valve (located
under the fuel tank) when storing the machine.
Figure 12
1. Fuel valve
Controls
15
1
1
1
