g206691

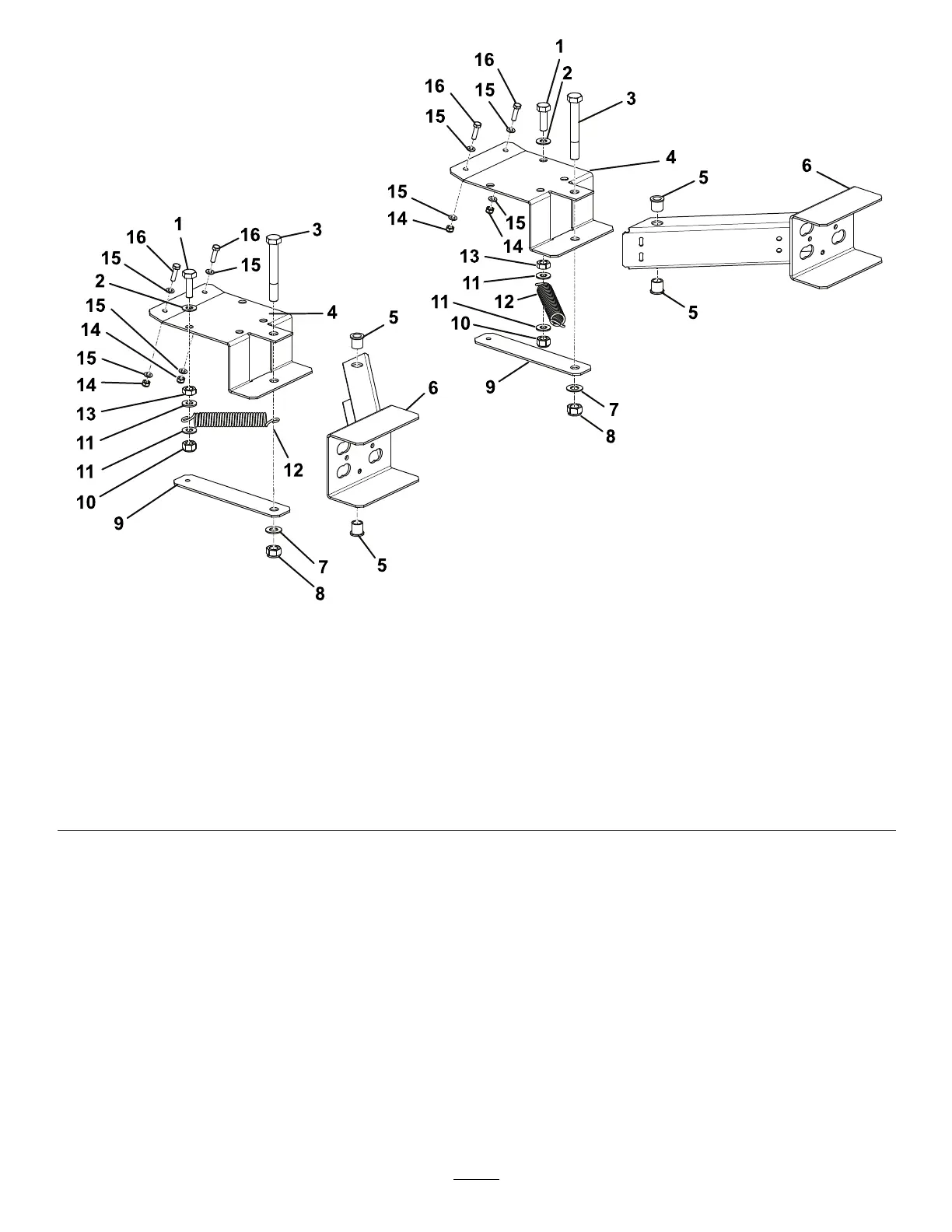

Figure7

1.Screw(10x35mm)

9.Brace

2.Washer(10mm)10.Locknut(10mm)

3.Bolt(12x100mm)11.Heavywasher(10mm)

4.Bracket

12.Spring

5.Flangebushing

13.Nut(10mm)

6.Lightarm

14.Locknut(6mm)

7.Washer(12mm)15.Washer(6mm)

8.Locknut(12mm)16.Screw(6x25mm)

CheckingtheOperationof

theLights

1.Withtheignitionon,rocktheindicatorswitchleftto

operatethefrontandrearleftorangeindicatorlights.

Theindicatorwarninglightontheswitchwillalsoash

(Figure5andFigure6).

2.Withtheignitionon,rocktheindicatorswitchrightto

operatethefrontandrearrightorangeindicatorlights.

Theindicatorwarninglightontheswitchwillalsoash.

3.Withtheignitionofforon,rockthelightswitch

backwardtoswitchonthe2rearredpositionlights,

the2frontwhitepositionlightsandnumberplatelight.

Thewarninglightontheswitchwillalsolightup.

4.Withtheignitionandlightswitchon,rocktheheadlight

switchforwardtodippedheadlights.

5.Rocktheheadlightswitchbackwardformain-beam

headlights.Themain-beamwarninglightontheswitch

willalsolightup.

6.Withtheignitionofforon,rockthehazardswitch

backwardtooperateandashall4orangeindicator

lightssimultaneously.Thehazardwarninglightson

theswitchwillalsoash.
