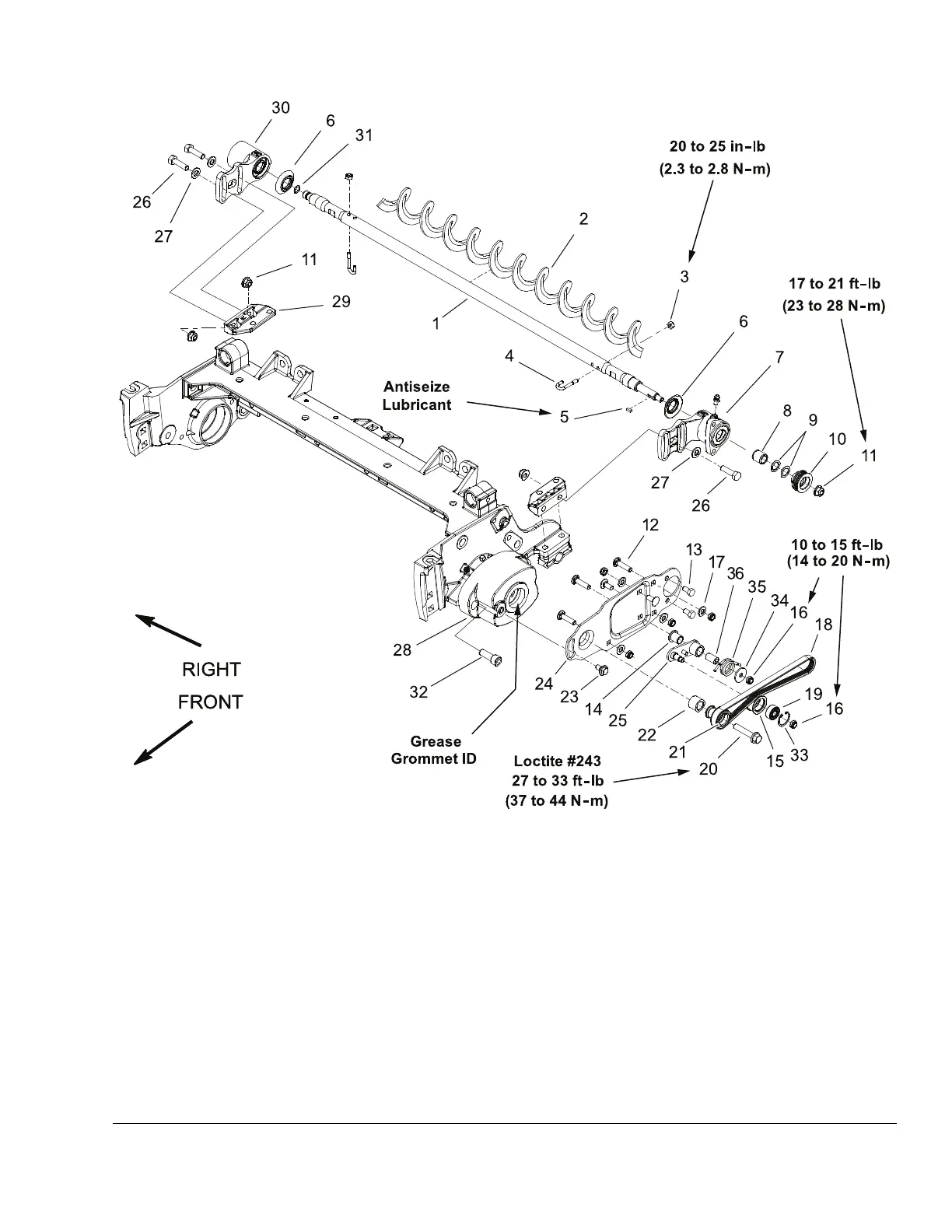

RearRollerBrush–Optional(cuttingunitswithpaintedside
plates)
g252751
Figure357
1.Rollerbrushshaft13.Capscrew(2each)
25.Idlerarm
2.Rollerbrush14.Flangebushing
26.Capscrew(4each)
3.Locknut(2each)
15.Idlerpulley
27.Flatwasher(4each)
4.J-bolt(2each)
16.Locknut28.Drivebearinghousing
5.Squarekey17.Flatwasher(2each)29.Mountingbracket(2each)
6.Excluderseal(2each)
18.Drivebelt
30.Brushbearinghousing(non-drive)
7.Brushbearinghousing(drive)
19.Bearing
31.O-ring
8.Spacer
20.Flangeheadscrew
32.Socketheadscrew(2each)
9.Flatwasher(asnecessary)
21.Drivepulley33.Retainingring
10.Drivenpulley
22.Spacer
34.Washer
11.Flangenut
23.Shoulderbolt
35.Idlerspring
12.Carriagescrew(2each)
24.Brushplate36.Idlerspacer
Reelmaster
®
5410/5510/5610Series
Page9–51
CuttingUnit:ServiceandRepairs
15216SLRevC
