ReplacingtheGroomerDriveBelt
Thegroomerdrivebeltshouldbeinspected/replacedannuallyorafter750hours
ofoperation.
1.Parkthemachineonalevelsurface,lowerthecuttingunitscompletelyto
theground,shutofftheengine,settheparkingbrake,andremovethekey
fromthekeyswitch.
Note:Ifthecuttingunitisequippedwiththepoweredrearrollerbrush,
removaloftherollerbrushcomponentswillbenecessarytoreplacethe
groomerdrivebelt;refertotheRearRollerBrush–Optional(cuttingunits
withpaintedsideplates)(page9–51).
Note:Whenremovingthegroomercover,thegroomerweightdoesnothave
toberemovedfromthecover.
g215600

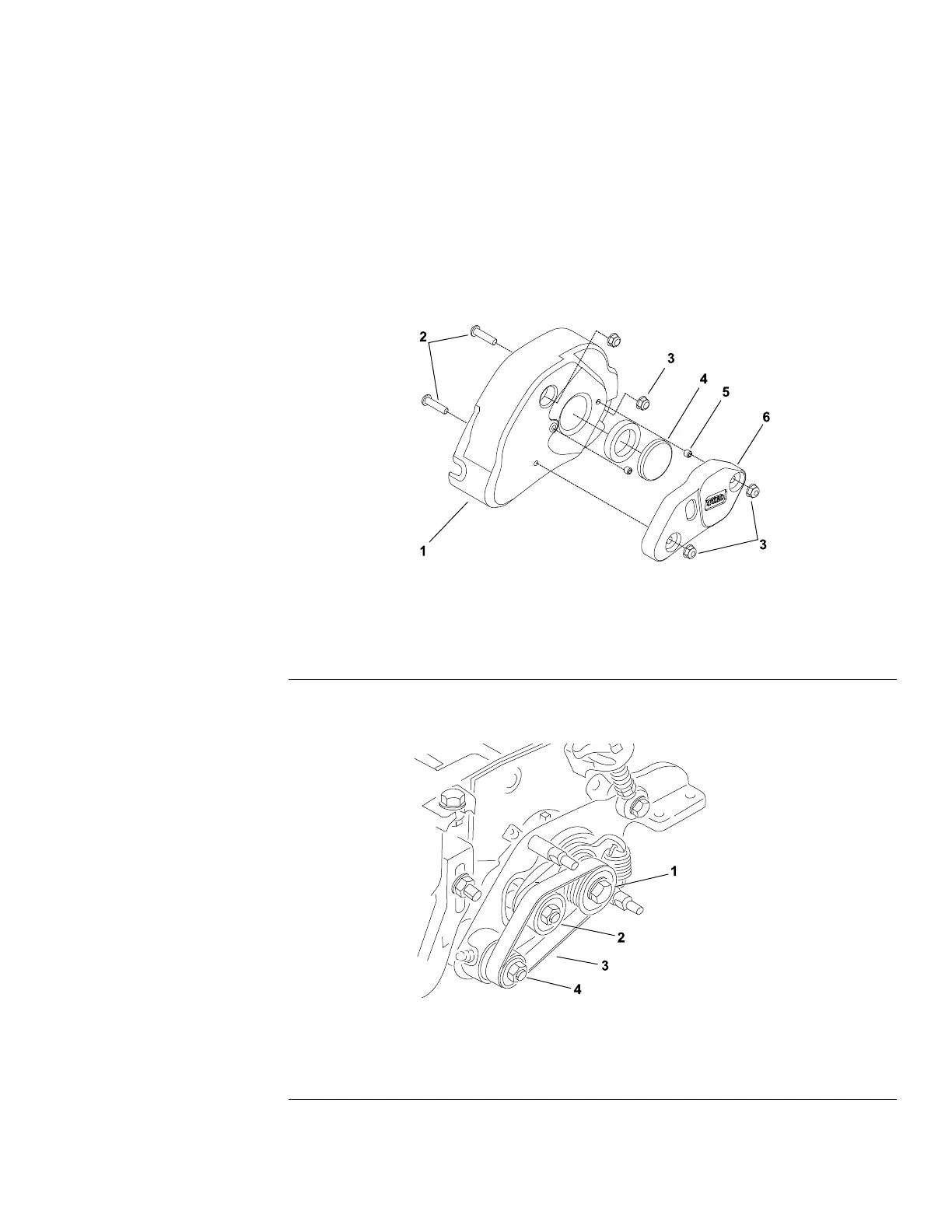

Figure374
1.Groomercover3.Flangenut(4each)5.Setscrew(2each)
2.Socket-headscrew(2
each)
4.Rubbergrommet
6.Groomerweight
2.Removethe2angenutsthatsecurethegroomercover,andremovethe
cover(Figure374).
g215601
Figure375
1.Drivepulley
3.Groomerdrivebelt
2.Idlerpulley4.Drivenpulley
Reelmaster
®
5410/5510/5610Series
Page10–7
BeltDrivenGroomer(Optional):ServiceandRepairs
15216SLRevC
