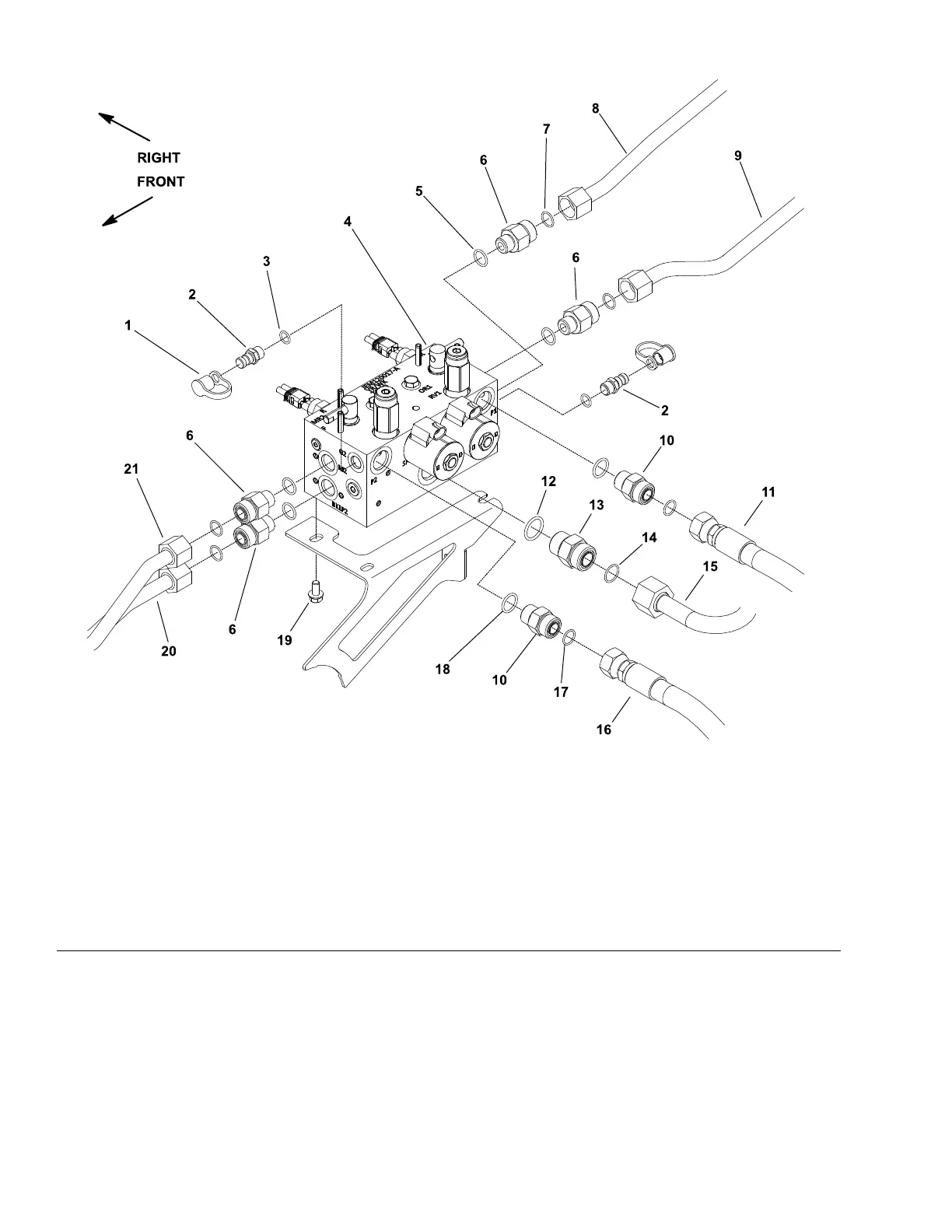

MowControlManifoldAssembly

g213706

Figure163

1.Dustcap(2each)

8.Hydraulictube15.Hydraulictube

2.Diagnostictting(2each)

9.Hydraulictube16.Hydraulichose

3.O-ring10.Hydraulictting(2each)17.O-ring(2each)

4.Mowcontrolmanifold

11.Hydraulichose

18.O-ring(2each)

5.O-ring(4each)12.O-ring19.Flange-headscrew(3each)

6.Hydraulictting(4each)13.Hydraulictting

20.Hydraulictube

7.O-ring(4each)14.O-ring

21.Hydraulictube

Note:Fortestingthesolenoidvalvecoils;refertoTestingtheHydraulicSolenoid

ValveCoils(page7–96).

HydraulicSystem:ServiceandRepairs

Page6–188

Reelmaster

5410/5510/5610Series

15216SLRevC
