Toro 03678 Service Manual

RearAxle
g215432

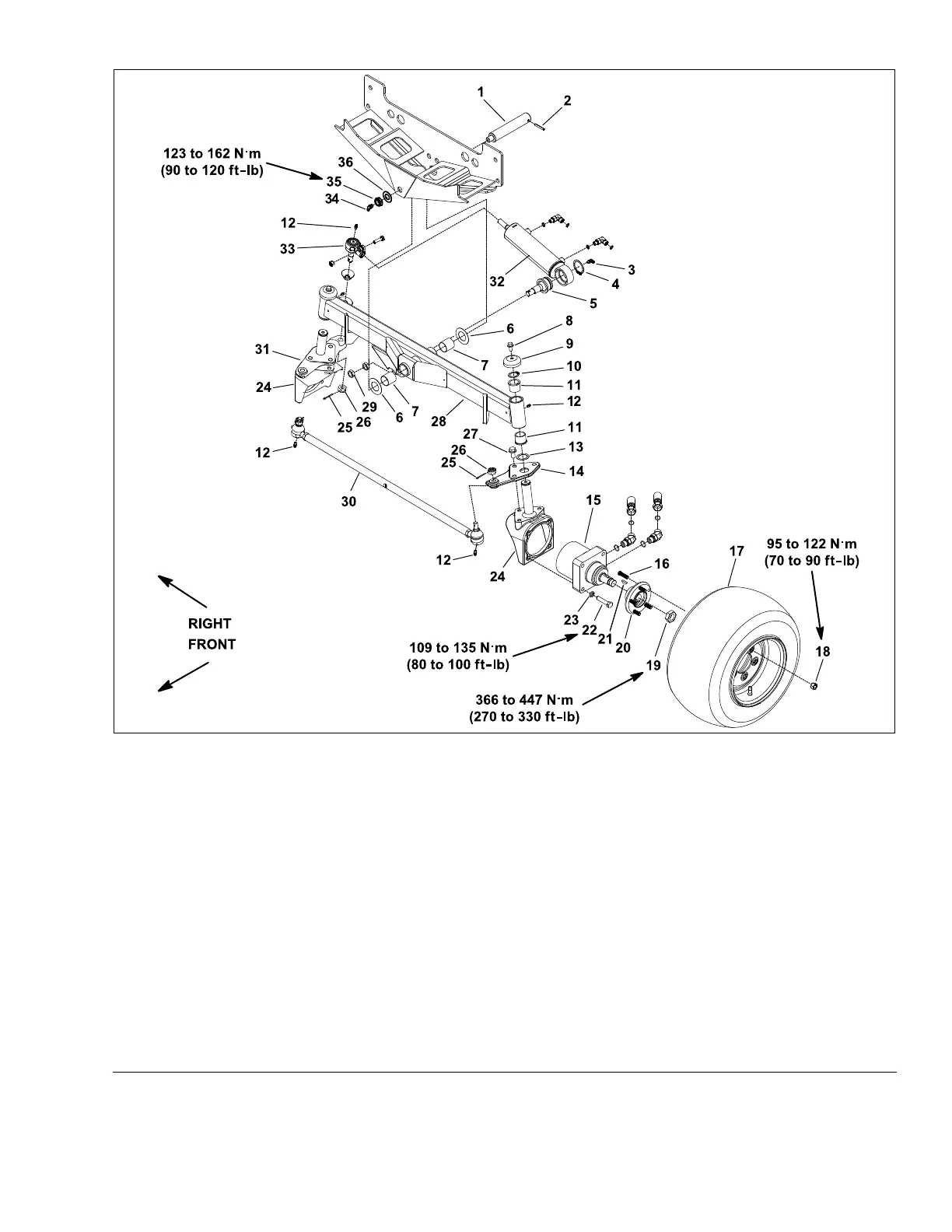

Figure300
MachineswithCrossTraxAWD
1.Axlepivotpin
10.Retainingring(2each)
19.Locknut28.Rearaxle
2.Rollpin
11.Flangebushing(4each)
20.Wheelhub
29.Jamnut(2each)
3.90°greasetting12.Greasetting(5each)21.Woodruffkey
30.Tierod
4.Retainingring
13.Thrustwasher(2each)22.Bolt(4eachpermotor)
31.Rightdraglink
5.Balljoint
14.Leftdraglink23.Lockwasher(4each
permotor)
32.Steeringcylinder
6.Thrustwasher(2each)15.Wheelmotor(left)24.Motorhousing(2each)
33.Balljoint
7.Axlebushing(2each)16.Wheelstud(5each
perhub)
25.Cotterpin(3each)34.90°greasetting
8.Flange-headscrew
(2each)
17.Rearwheelassembly
26.Slottedhexnut(3each)
35.Jamnut
9.Spindlecap(2each)18.Wheel-lugnut(5each
perwheel)
27.Flange-headscrew
(3eachperlink)
36.Thrustwasher
Reelmaster
®
5410/5510/5610Series
Page8–19
Chassis:ServiceandRepairs
15216SLRevC
