7.
T
ighten
the
nut
on
the
throttle
spring
until
the
spring
is
fully
compressed,
then
back
of
f
1/2
turn
(
Figure
12
).
Important:
When
operating
at
high
idle
the
throttle
lever
should
not
move;
if
it
moves,
tighten
the
nut
on
the
throttle
spring
slightly
.

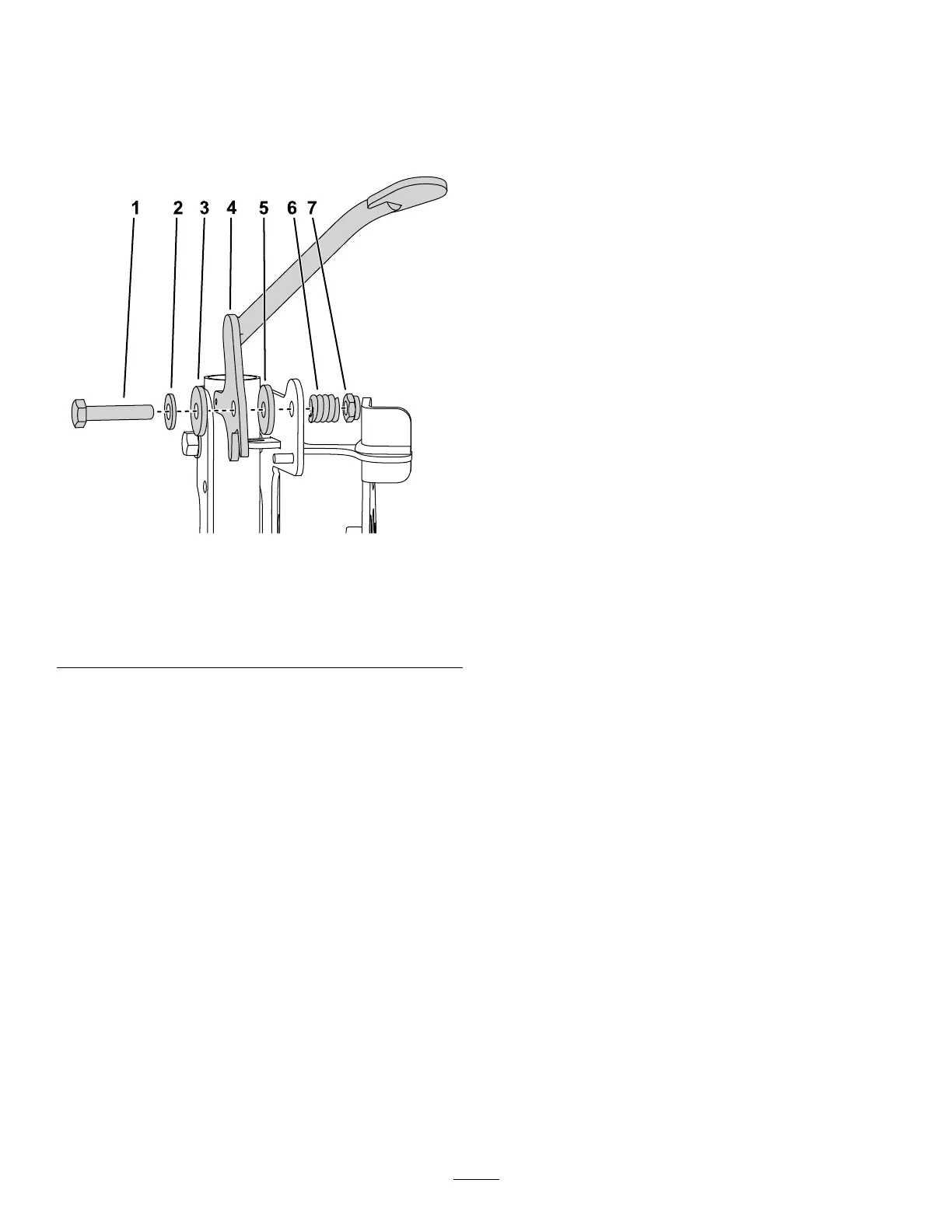

g274739
Figure
12
1.
Bolt
5.
Friction
washer
2.
Flat
washer
6.
Throttle
spring
3.
Friction
washer
7.
Nut
4.
Throttle
lever
8.
Attach
the
engine
to
the
gearbox
using
the
previously
removed
nuts
(
Figure
8
).
9.
T
ighten
all
of
the
engine
mounting
fasteners.
10
9
11
