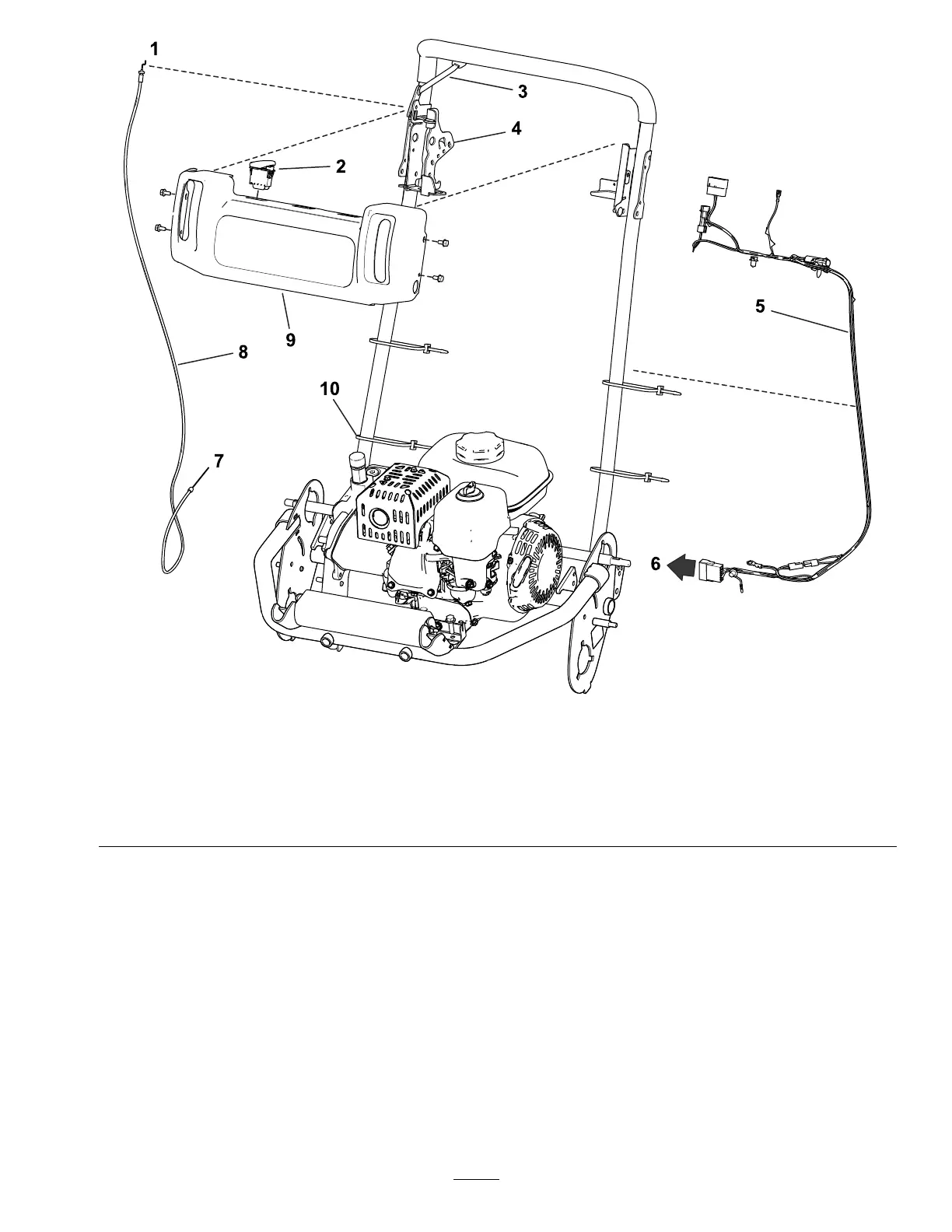

g262107
Figure
15
1.
Connect
to
the
throttle
lever
.
6.
Connect
to
the
interlock
module.
2.
Engine
switch
7.
Connect
to
the
throttle
on
the
engine.
3.
Throttle
lever
8.
Throttle
cable
4.
T
raction
bracket
9.
Console
cover
5.
Wire
harness
10.
Cable
tie
8.
Loosen
the
screw
on
top
of
the
cable
clamp.
9.
Install
the
straight
end
of
the
throttle
cable
housing
through
the
wide
clamp
and
the
throttle
cable
through
the
cable
clamp
(
Figure
16
).
12
11
13
