Toro 04202 Installation Instructions

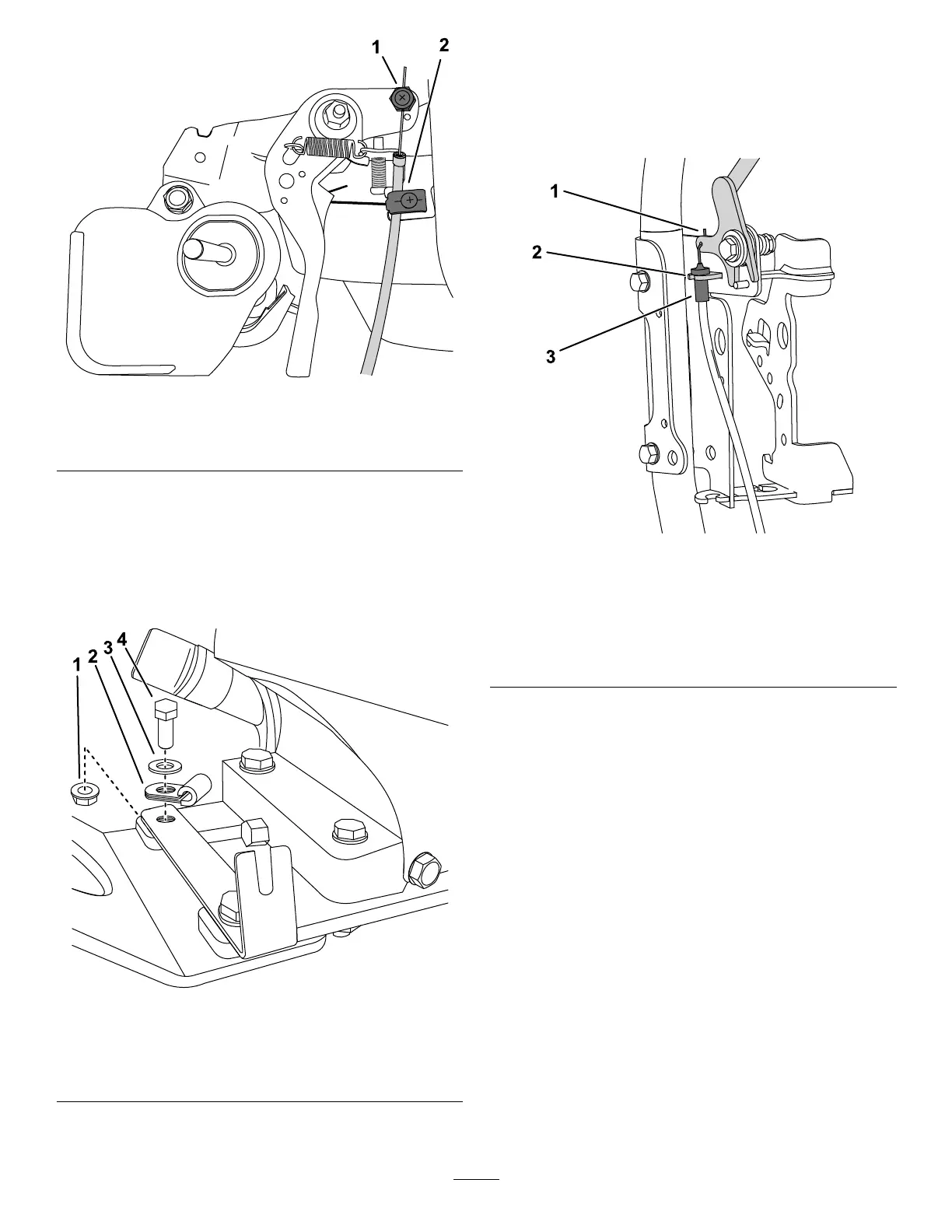

g274612
Figure16
1.Insertthecablethrough
thecableclamp.
2.Securethecablehousing
underthewideclamp.
10.Tightenthescrewontopofthecableclampto
securetheconnectiontothethrottlecontrol.
11.Routethecablebeneaththefrontoftheengine
andthroughthecableclip(Figure17).
12.Installthecableclipatthefront-rightenginebolt
(Figure17).
g274716
Figure17
1.Nut
3.Space
2.Cableclip
4.Front-rightengine
mountingbolt
13.Routethecableuptherightsideofthehandle
andconnectthethrottlecabletothetraction
bracketandleverasshowninFigure18.
Important:Routethecablesothatitdoes
notcontactanyhotormovingparts.
g274611
Figure18
Somepartsnotshownforclarity
1.Hooktheexposedcable
intothethrottlelever.
3.Mountthethrottlecable
housinghere.
2.Throttlecablehousing
mount
14.Movethethrottlelevertothemaxspeed
position;ifthelevercontactstheplasticconsole,
grindtheopeningtocreateclearanceforthe
levertomoveallthewayforward.
15.Installtheairlterandcover;refertoServicing
theAirCleaner(page19).
16.Installtheconsolecoverwiththe4
previously-removedscrewsandhandlegrips
(Figure15).
13
