C.Routethepowersupplywireharnessdown
theLHsideofthehandletowardstherear
oftheengine.
D.Connecttheharnesstothetwobullet
connectorscomingfromtheengineshroud.
•Onbatterymodels
A.Locatetheopenwireharnessconnectoron
theeFlexmainwireharness.
B.ConnecttheLEDlightwireharnesstothe
lightconnectorplugontheeFlexmainwire
harness.
C.InstalltheswitchconnectorplugontheeFlex
mainwireharnesstotheOn/Offswitch.
Theremainingwireharnesswillnotbeused
forthisapplication.

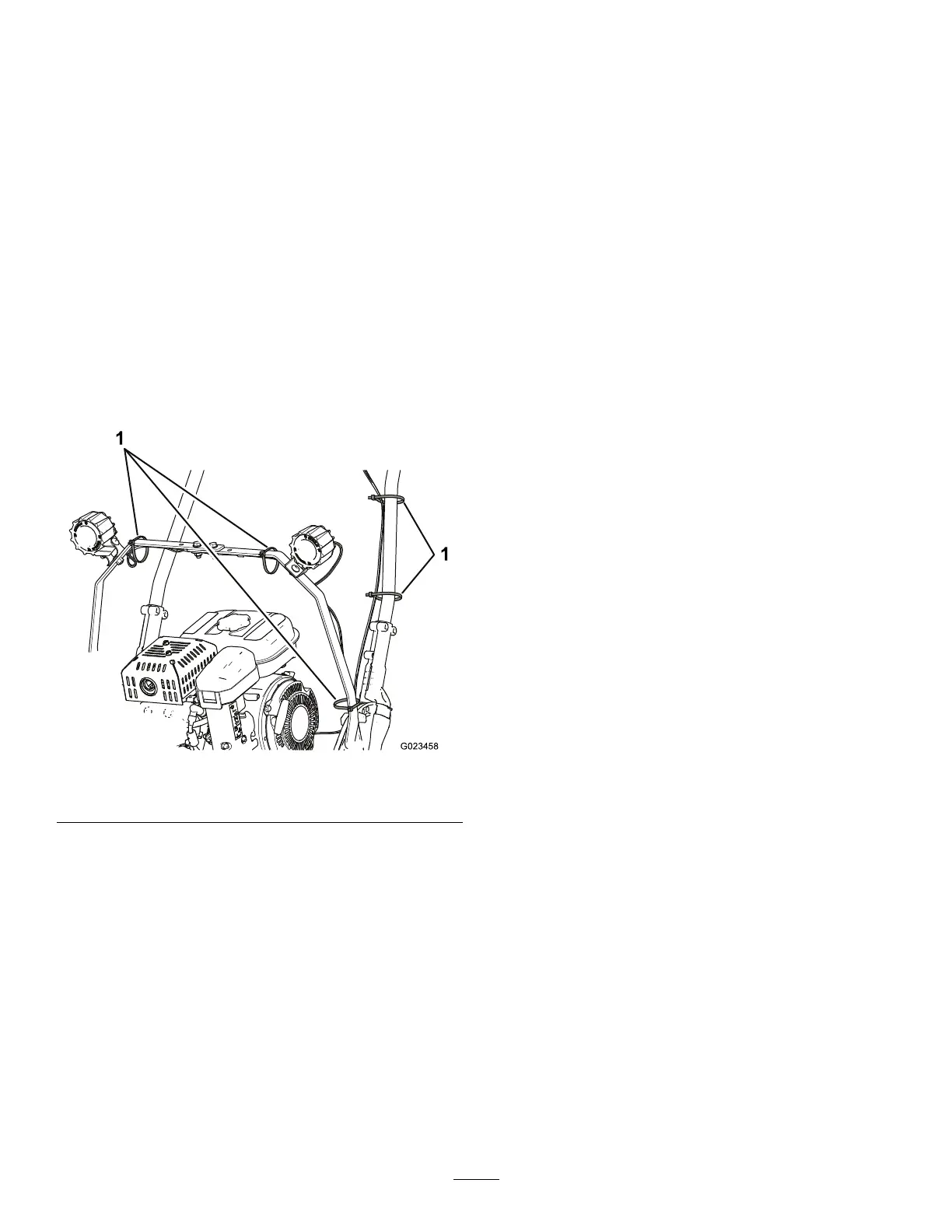

11.Looselyattachthewireharnesstothelightbarand
handlewith(5)cableties(
Figure5).
G023458
1
1
Figure5
1.Cabletie(5)
Note:Beforetighteningthecableties,makesure
theLEDlightsaredirectedslightlydownward
fromtheexpectednalposition.Thiscanprevent
damagingtheharnessconnectorswhen/ifthelights
arerotateddownward.
Important:Ifthehandleisnotfullyextended
out,makesurethereissufcientslackinthe
wireharness(approximately3inches)between
thelowestcabletieonthehandleandthe
connectingpointsontheengine(gasmodels
only)andthelightbar.
12.Installtheconsolecovertothehandlewiththe(4)
screwspreviouslyremoved.
13.Tightenthecableties.
4
