Workman 1100/1110/2100/2110Page 7 – 36Chassis, Wheels, and Brakes (Rev. B)

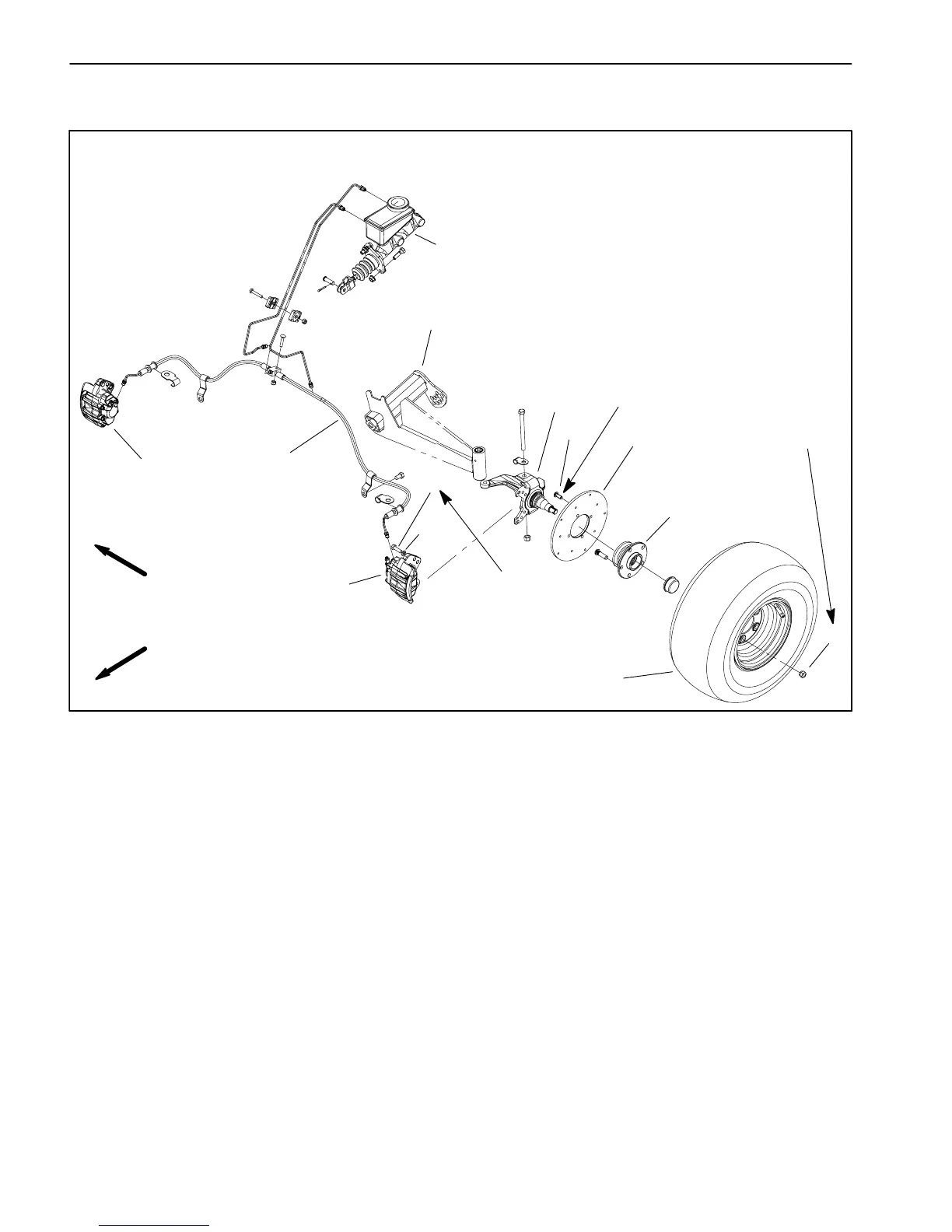

Front Brake Calipers (Workman 1110 and 2110)
1. LH brake caliper
2. RH brake caliper
3. Lock washer (2 per caliper used)
4. Cap screw (2 per caliper used)
5. Wheel hub assembly
6. Brake rotor
7. Socket head screw (4 per rotor used)
8. Spindle (LH shown)
9. A–arm (LH shown)
10. Brake master cylinder
11. Wheel assembly
12. Lug nut
13. Brake hose
Figure 24
8
7
5
6
9
FRONT
RIGHT
2
1
4
3
10
18 ft–lb
(24 N–m)
12
11
45 to 65 ft–lb
(61 to 88 N–m)
Thread locking
Compound
13
