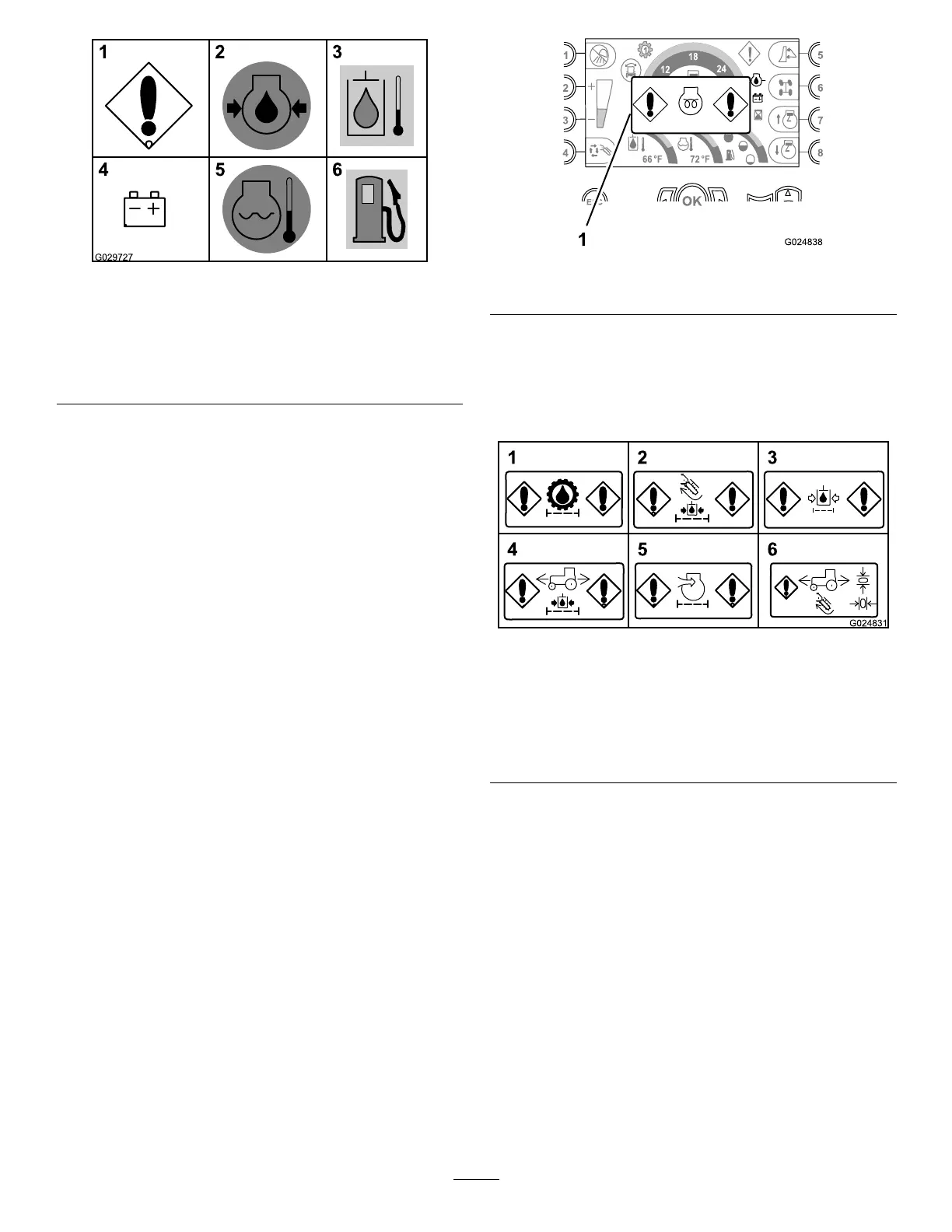

Figure33
1.Machineorengineerror
4.Checkalternatororbattery
2.Lowengine-oilpressure
(ashes)
5.Engineoverheated
(ashes)
3.Highhydraulic-oil
temperature(ashes)
6.Lowfuelquantity(ashes)
•Machineorengineerror—Thismessagedisplaysifthe
machineorengineexperiencesafault.Thecauseofthe
faultisgivenintheInstrumentPanelDiagnostics(Figure
33).
Important:
Do not runtheengineifthiswarning
messageappears.
•Lowengine-oilpressure—Thiswarningmessage
displaysiftheoilpressureoftheengineis90Kpa(13psi)
orlower(Figure31andFigure33).
Important:
Do not runtheengineifthiswarning
messageappears.
•Highhydraulic-oiltemperature—Thismessageashes
iftheoilinthehydraulicsystemis102°C(215°F)or
higher(Figure33)
Important:
Do not runtheengineifthiswarning
messageappears.
•Checkalternatororbattery—Thismessagedisplays
ifthealternatorandbatteryvoltageis12voltsorless
(Figure31andFigure33).
Note:Ifthismessageisappears,stoptheengine,repair
thechargingsystem,orreplacethebattery.
•Engineoverheated—Thismessageashesiftheengine
coolantis104°C(220°F)orhigher(Figure31andFigure
33).
Important:
Do not runtheengineifthiswarning
messageappears.
•Lowfuelquantity—Thismessagedisplayswhenthefuel
quantityinthetankislessthan18.2L(5.8USgal).
•Wait-to-start-engineindicator—Thisindicatordisplays
whenthekeyswitchisintheOnpositionandtheintake
airheaterfortheengineisenergized(Figure34).
Note:Waituntiltheindicatornolongerappearsbefore
attemptingtostarttheengine(Figure34).
Figure34
1.Wait-to-start-engineindicator
ReadingtheMachineorEngineErrorIndicatorsinthe
CommandDisplay
Note:Whenawarningindicatorisshowninthecommand
display,takecorrectivemeasuresimmediately.
Figure35
1.Hydraulic-chargelter
restriction(transmission)
4.Hydraulic-chargelter
restriction(tractionmotor)
2.Hydraulic-chargelter
restriction(accessories)
5.Air-lterrestriction
(engine)
3.Hydraulic-returnlter
restriction
6.Returnthejoystickto
neutralindicator
•Hydraulic-chargelterrestriction
(transmission)—Thismessageisdisplayedif
thehydraulic-chargelterforthetransmissionisrestricted
(Figure35).
Note:Ifthismessageisdisplayed,stoptheengineand
replacethehydraulic-chargelterforthetransmission.
•Hydraulic-chargelterrestriction
(accessories)—Thismessageisdisplayedifthe
chargelterforthehydrauliccircuitfortheaccessoriesis
restricted(Figure35).
Note:Ifthiswarningmessageisdisplayed,stopthe
engineandreplacethechargelterforthehydraulic
circuitfortheaccessories.
•Hydraulic-returnlterrestriction—Thismessageis
displayedifthehydraulic-returnlterisrestricted(Figure
35).
