Toro 30150 - Installing the Front Casters; Installing the Upper Handle and Wire Harness

14
DESCRIPTION USEQTY.
No parts needed – Installing the muffler
Operator’s Manual
Engine Operator’s Manual
Parts Catalog
Registration card
1
1
1
1
Read before operating machine
Fill out and return to Toro

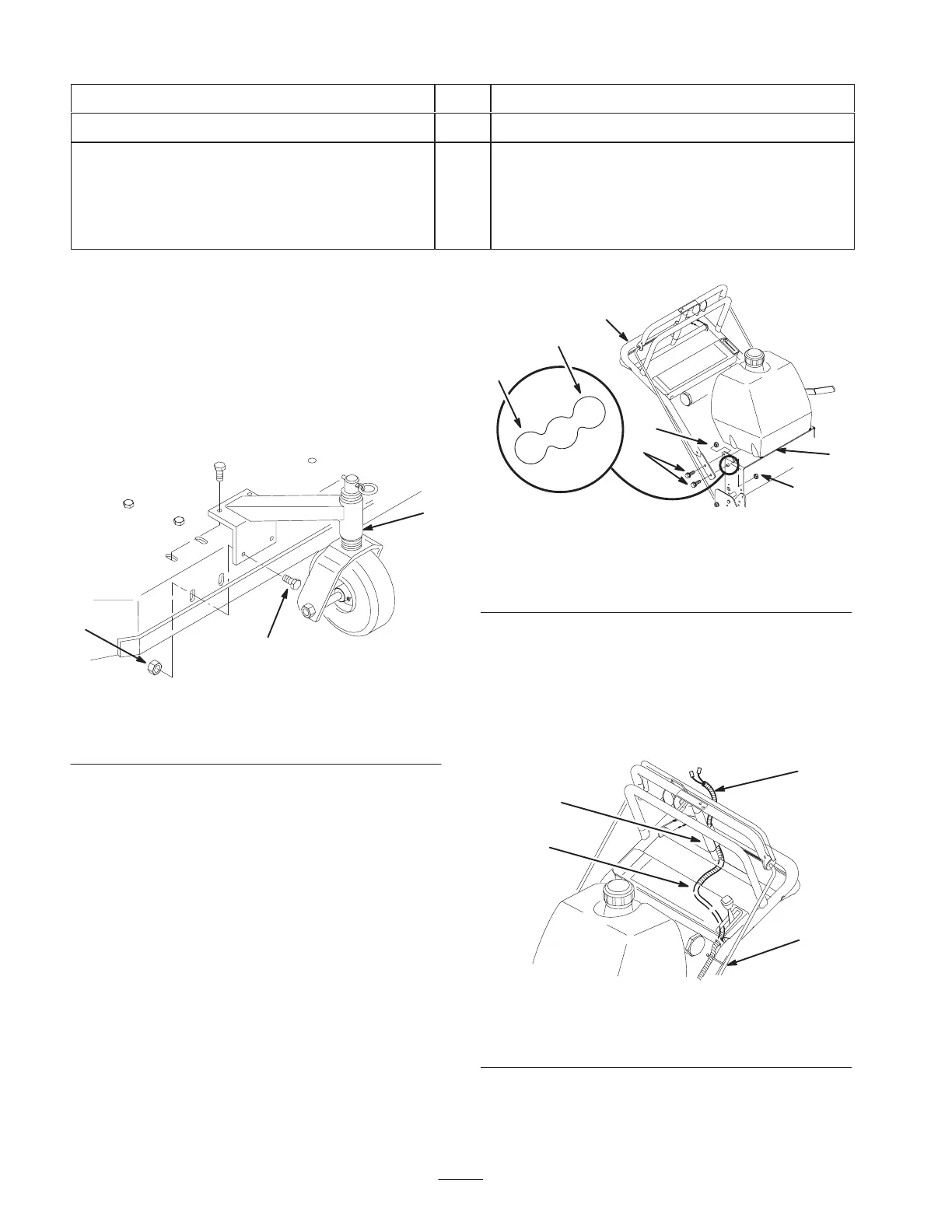

Installing the Front Casters
1. Align casters with holes on top and front of mower and
insert 8 bolts (3/8 x 3/4 inch) through mower. Secure
with 8 flange nuts (3/8 inch) below mower (Fig. 2).
Note: Tighten lower bolts first to pull caster against front,
then top bolts last.
2. Torque bolts to 30–35 ft–lb (40–47 Nm).
1
2
m–3777
3
Figure 2
1. Front caster
2. Bolt, 3/8 x 3/4 inch
3. Flange nut, 3/8 inch
Installing the Upper Handle and
Wire Harness
1. Position handle outside frame and align upper handle
mounting holes with desired mounting holes in rear
frame. Select high, medium or low according to
operators height (Fig. 3).
2. Secure each side with 2 bolts (3/8 x 1 inch) and
2 locknuts (3/8 inch) (Fig. 3).
3. Torque bolts to 25 ft–lb (34 Nm).
m–4213
1
2
3
4
6
5
4
Figure 3
1. Upper handle
2. Rear frame
3. Bolt, 3/8 x 1 inch
4. Locknut, 3/8 inch
5. Low
6. High
4. Route wire harness inside of frame, along left handle
and over throttle cable. Compress wire harness covering
and press into lower and upper holes in rear of control
panel (Fig. 4).
5. Thread harness up through rear tube of traction handle
(Fig. 4).
m–3774
1
2
3
4
Figure 4
1. Wire harness
2. Control panel
3. Rear tube
4. Wire tie
