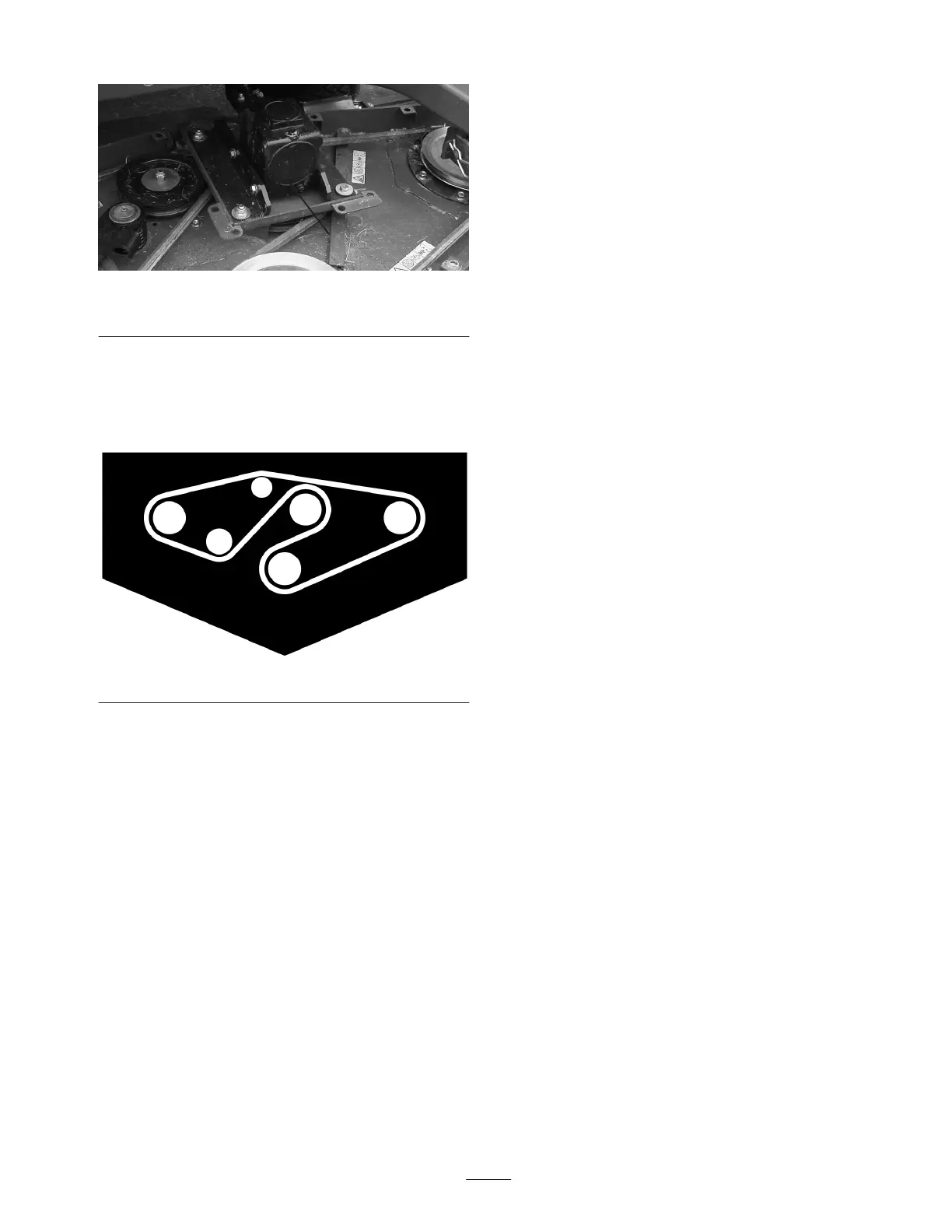

Figure 35
1. Gearbox
3. Remove the old belt from around the spindle pulleys
and idler pulley.
4. Route the new belt around the spindle pulleys and idler
pulley assembly as shown in figure 36.
Figure 36
5. Install the belt covers.
