Toro 38741 - Servicing the Spark Plug

ServicingtheSparkPlug
ServiceInterval:Yearly—Servicethesparkplugand
replaceitifnecessary.
UseaNGKBPR6ESorChampionRN9YCspark
plugorequivalent.
1.Shutofftheengineandwaitforallmovingparts
tostop.
2.Rotatethedischargechutesothatitfaces
forward.
3.Removethedischargechutebyremovingthe3
screwsholdingthechuteandthescrewsholding
thechuteseal(Figure28).

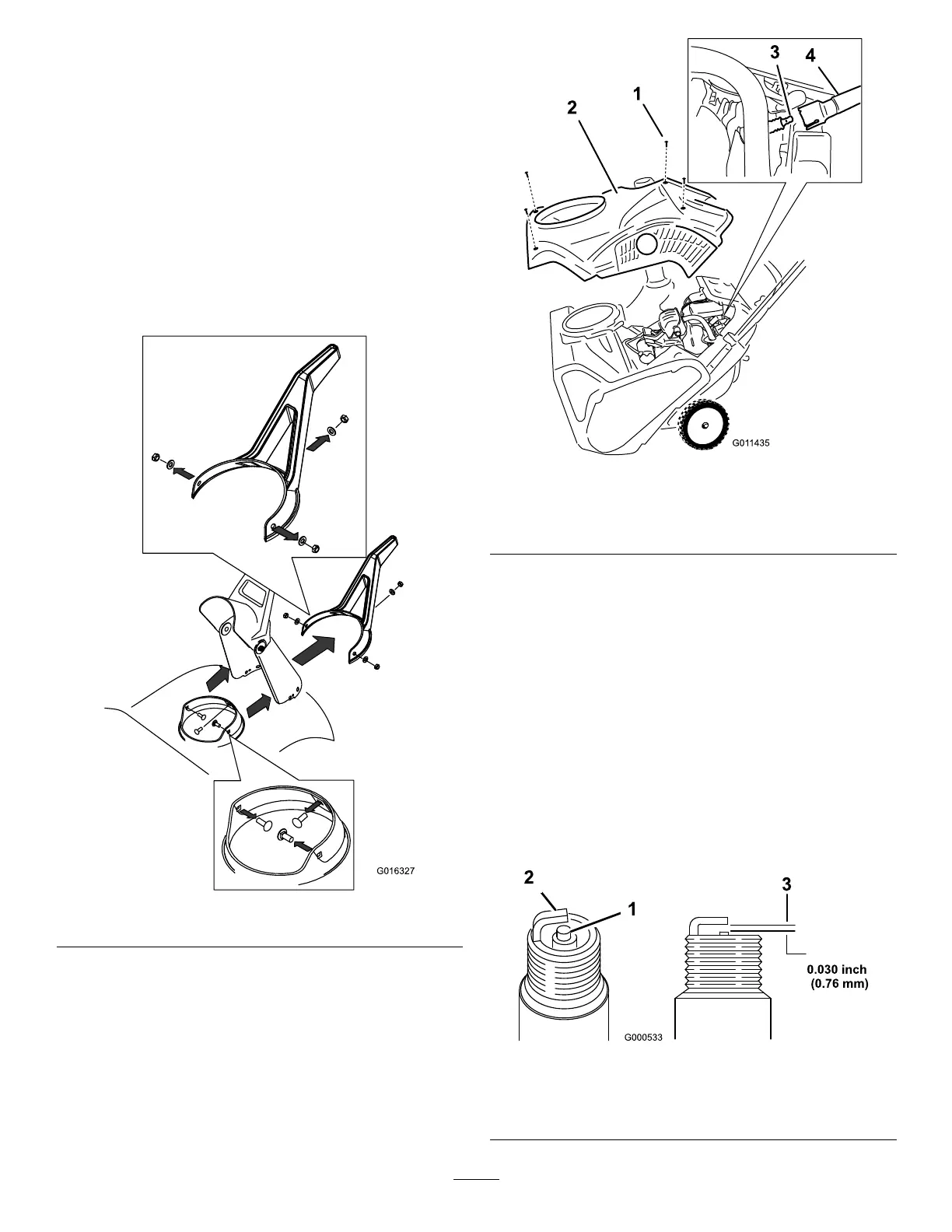

g016327
Figure28
4.Removethe4screwsthatsecuretheshroud
(Figure29).
g011435
Figure29
1.Screw(4)3.Sparkplug
2.Shroud4.Spark-plugwire
5.Removethefuel-tankcap.
6.Removetheshroud(Figure29).
7.Installthefuel-tankcap.
8.Disconnectthewirefromthesparkplug.
9.Cleanaroundthesparkplug.
10.Removethesparkplugfromthecylinderhead.
Important:Replaceacracked,fouled,or
dirtysparkplug.Donotcleantheelectrodes
becausegritenteringthecylindercan
damagetheengine.
11.Setthegapontheplugto0.030inch(0.76mm)
asshowninFigure30.
g000533
Figure30
1.Center-electrodeinsulator3.Airgap(nottoscale)
2.Sideelectrode
14
