IDLER
PULLEYS TOP STRAND
1
DRIVE- BOTTOM STRAND ENGINE
SHAFT
DRIVE
PULLEY PULLEY

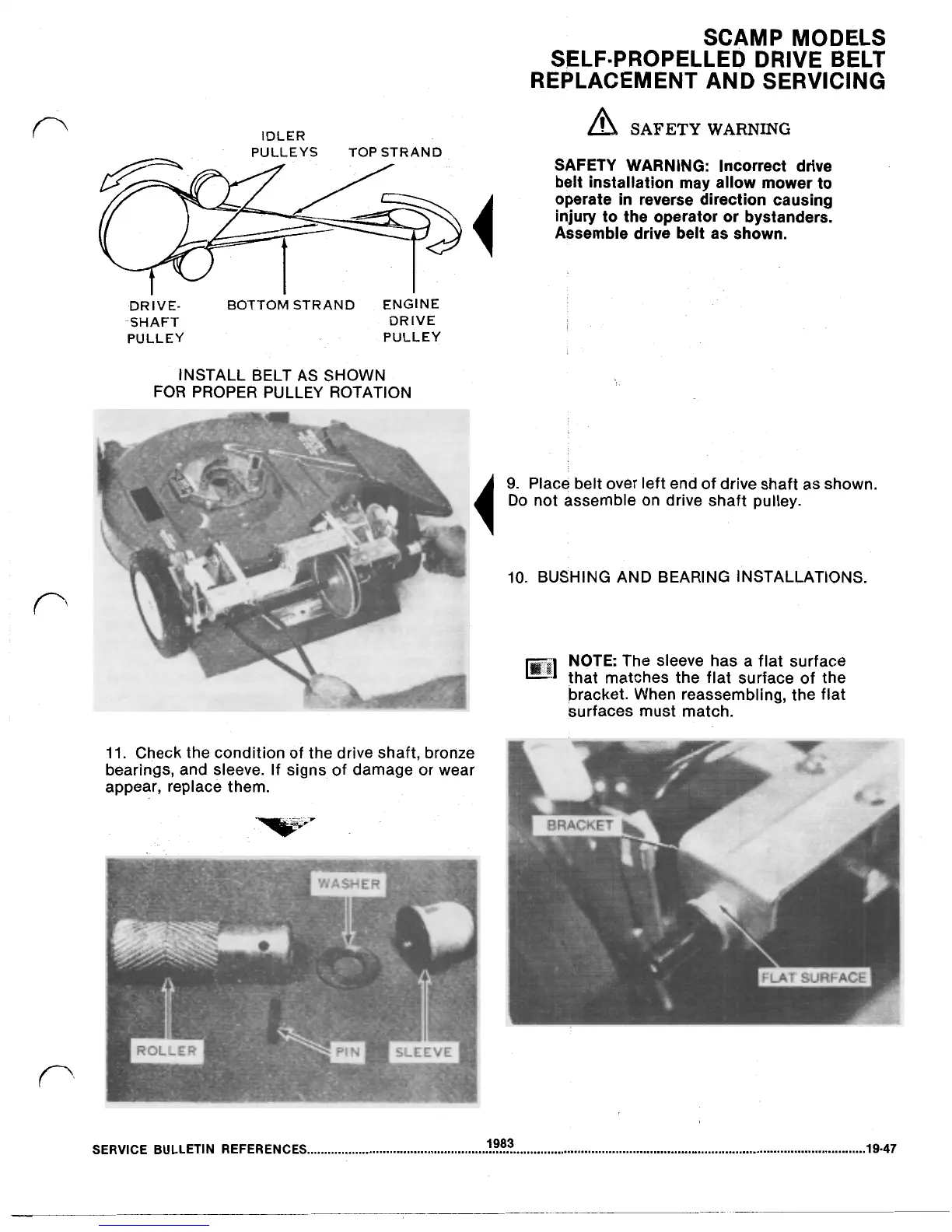

SCAMP MODELS
REPLACEMENT AND SERVICING
SELF-PROPELLED DRIVE BELT
SAFETY WARNING
SAFETY
WARNING:
Incorrect drive
belt installation may allow mower to
operate in reverse direction causing
injury to the operator or bystanders.
Assemble drive belt as shown.
INSTALL BELT AS SHOWN
FOR
PROPER PULLEY ROTATION
11.
Check the condition
of
the drive shaft, bronze
bearings, and sleeve.
If
signs
of
damage or wear
appear, replace them.
SERVICE BULLETIN REFERENCES
...................................................................................................................................................................
19.47
1983
