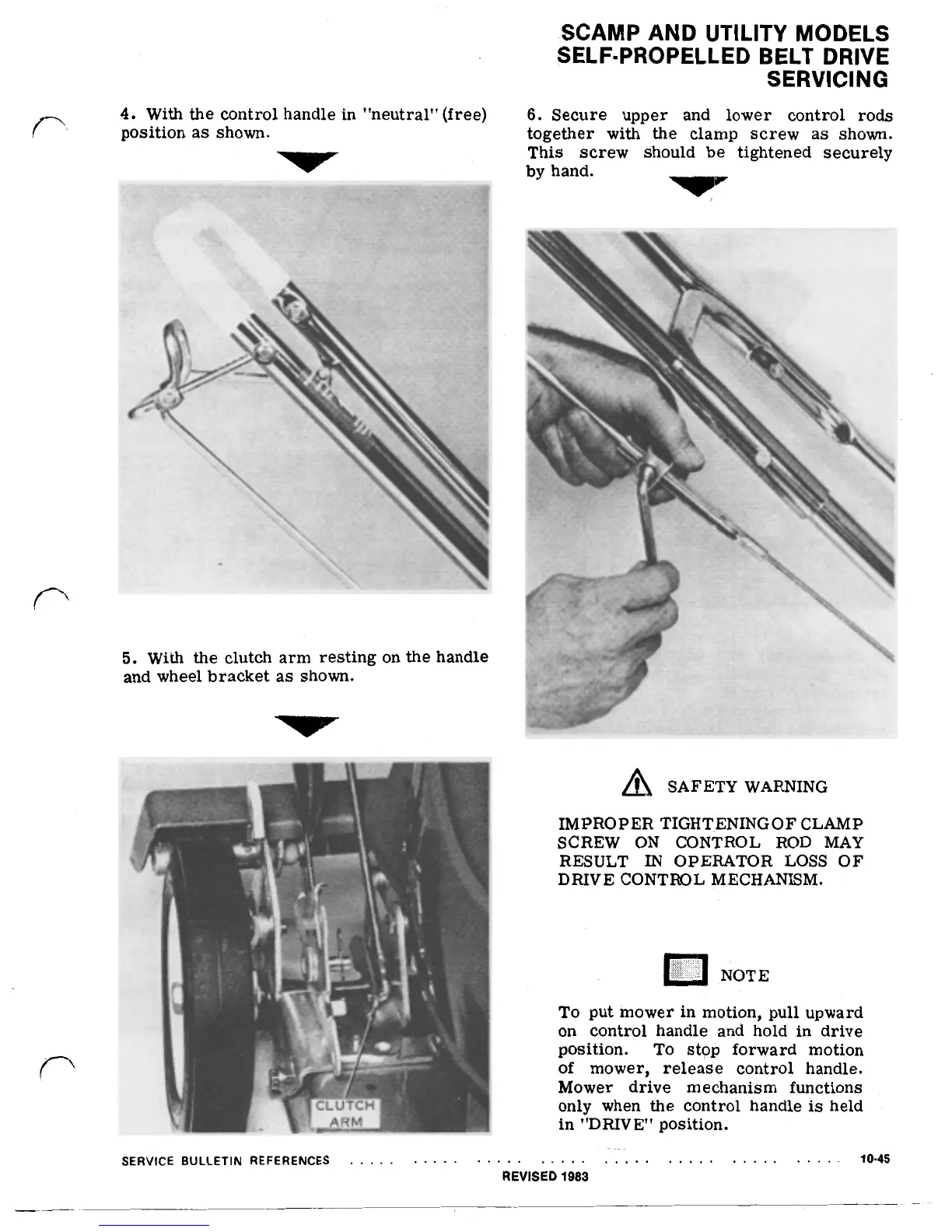

4.
With
the control handle in "neutral" (free)
position as shown.
SCAMP AND UTILITY MODELS
SERVICING
6.
Secure upper and lower control rods
together with the clamp screw as shown.
This screw should be tightened securely
SELF=PROPELLED BELT DRIVE
by hand.
5.
With
the clutch arm resting on the handle
and wheel bracket as shown.
SAFETY WARNING
IMPROPER TIGHT.ENING OF CLAMP
SCREW ON CONTROL ROD MAY
RESULT
IN
OPERATOR LOSS OF
DRIVE CONTROL MECHANISM.
NOTE
To
put mower in motion, pull upward
on control handle and hold in drive
position. To stop forward motion
of
mower, release control handle.
Mower drive mechanism functions
only when the control handle
is
held
in "DRIVE" position.
