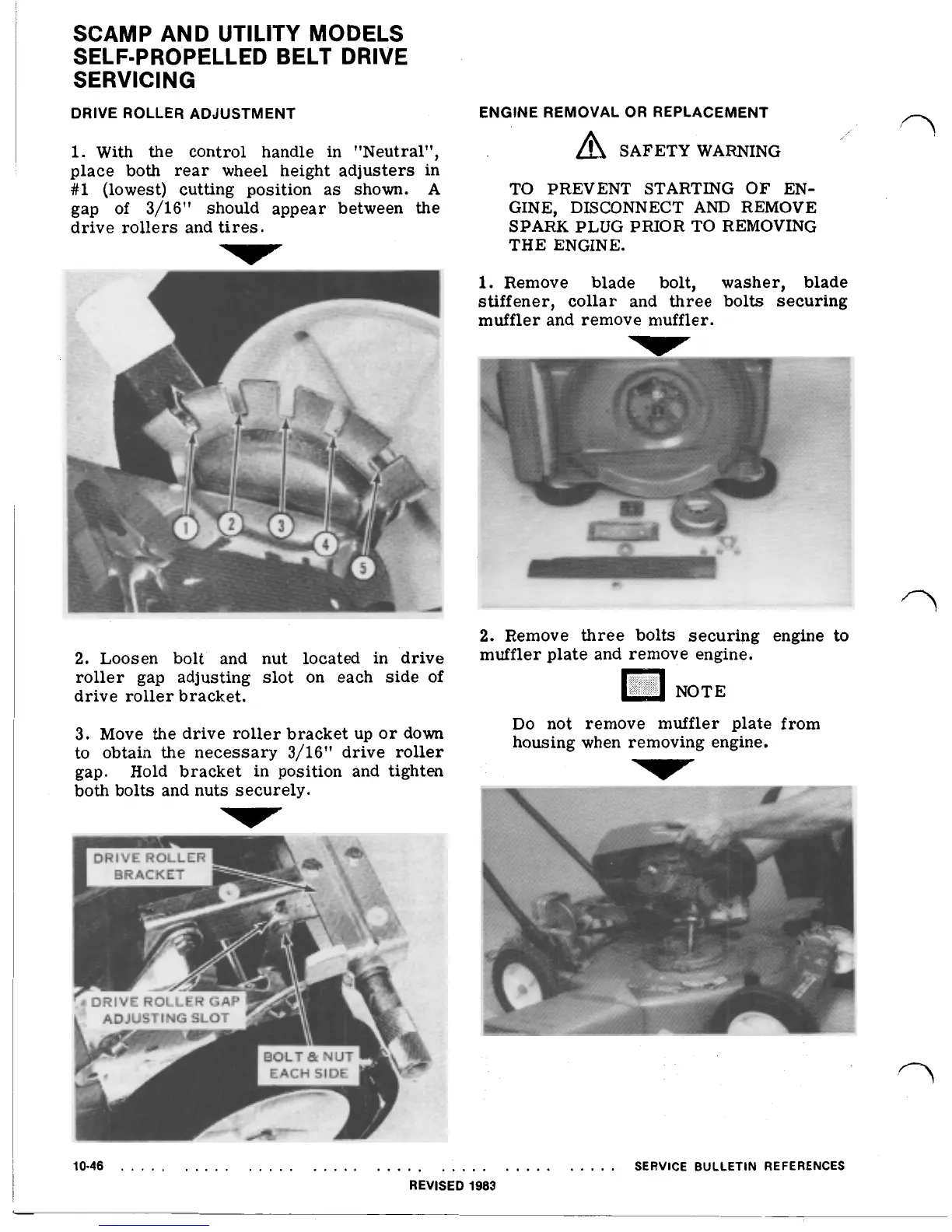

SCAMP AND UTILITY MODELS
SERVICING
SELF-PROPELLED BELT DRIVE
DRIVE ROLLER ADJUSTMENT
1.
With the control handle in "Neutral",
place both rear wheel height adjusters in
#1
(lowest) cutting position as shown.
A
gap of 3/16" should appear between the
drive rollers and tires.
2.
Loosen bolt and nut located in drive
roller gap adjusting slot on each side of
drive roller bracket.
3. Move the drive roller bracket up or down
to obtain the necessary 3/16'' drive roller
gap. Hold bracket
in
position and tighten
both bolts and nuts securely.
ENGINE REMOVAL
OR
REPLACEMENT
SAFETY WARNING
TO PREVENT STARTING OF EN-
GINE, DISCONNECT
AND
REMOVE
SPARK PLUG PRIOR TO REMOVING
THE ENGINE.
1.
Remove blade bolt, washer, blade
stiffener, collar and three bolts securing
muffler and remove muffler.
n
2.
Remove
three
bolts securing engine to
muffler plate and remove engine.
Do not remove muffler plate from
housing when removing engine.
10-46
