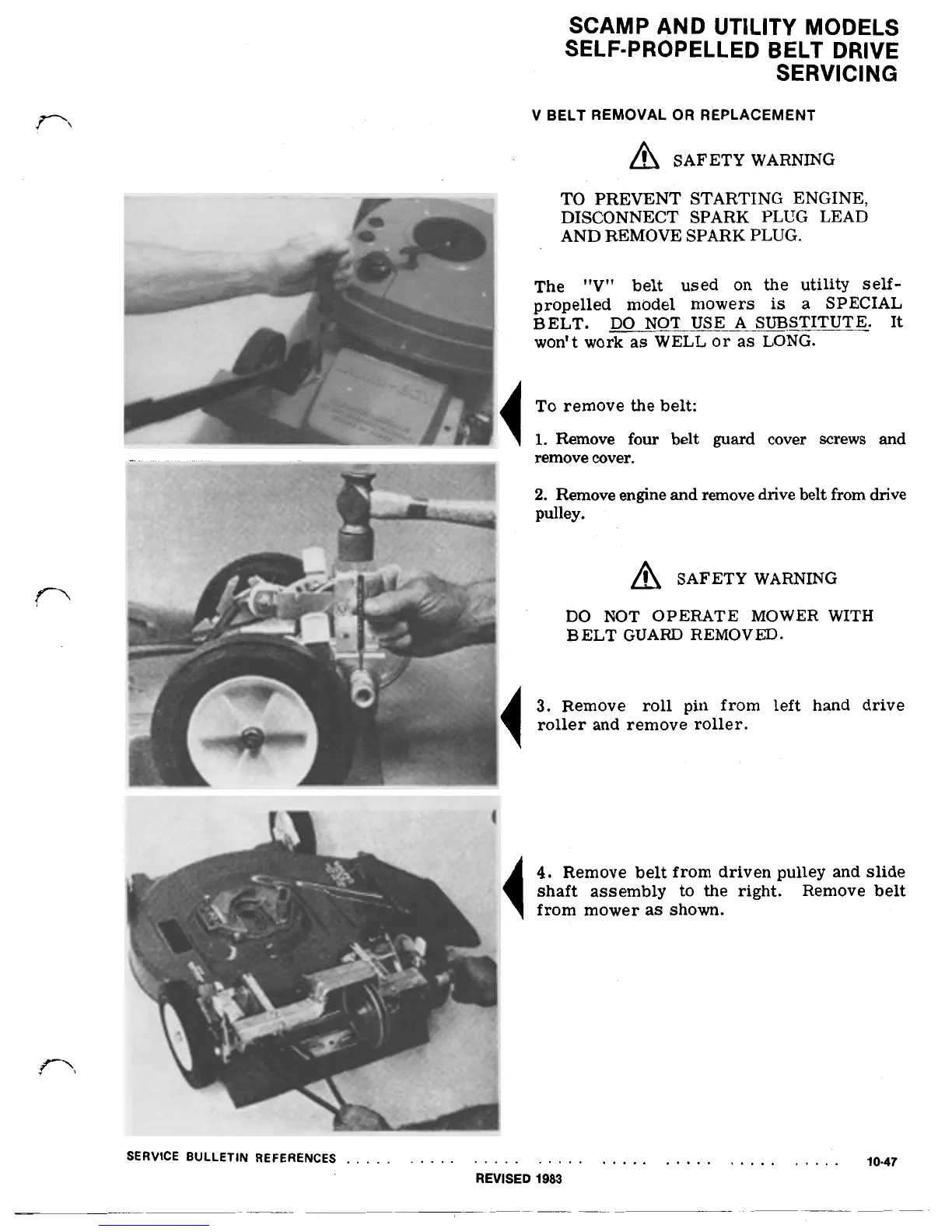

SCAMP AND UTILITY MODELS
SERVICING
SELF-PROPELLED BELT DRIVE
V
BELT REMOVAL
OR
REPLACEMENT
SAFETY WARNING
TO PREVENT STARTING ENGINE,
DISCONNECT SPARK PLUG LEAD
AND REMOVE SPARK PLUG.
The
"V"
belt used on the utility self-
propelled model mowers
is
a SPECIAL
BELT.
DO
NOT USE
A
SUBSTITUTE. It
won't work as WELL or as LONG.
To
remove the belt:
1.
Remove
four
belt guard cover screws and
remove cover.
2.
Remove engine
and
remove drive belt from drive
pulley.
SAFETY WARNING
DO
NOT OPERATE MOWER WITH
BELT GUARD REMOVED.
3.
Remove roll pin from left hand drive
roller and remove roller.
4.
Remove belt from driven pulley and slide
shaft assembly to the right. Remove belt
from mower as shown.
SERVICE BULLETIN REFERENCES
10-47
REVISED
1983
