Servicing the Spark Plug
Check the spark plug(s) after every 200 operating hours.
Make sure that the air gap between the center and side
electrodes is correct before installing the spark plug. Use a
spark plug wrench for removing and installing the spark
plug(s) and a gapping tool/feeler gauge to check and
adjust the air gap. Install a new spark plug(s) if necessary.
Type: Champion RC12YC (or equivalent)
Air Gap: 0.030 inch (0.76 mm)
Removing the Spark Plug(s)
1. Disengage the PTO, set the parking brake, stop the
engine, and remove the key.
2. Open the hood.
3. Pull the wire(s) off the spark plug(s) (Fig. 21). Clean
around the spark plug(s) to prevent dirt from falling
into the engine and potentially causing damage.
4. Remove the spark plug(s) and metal washer.
2
1
1218

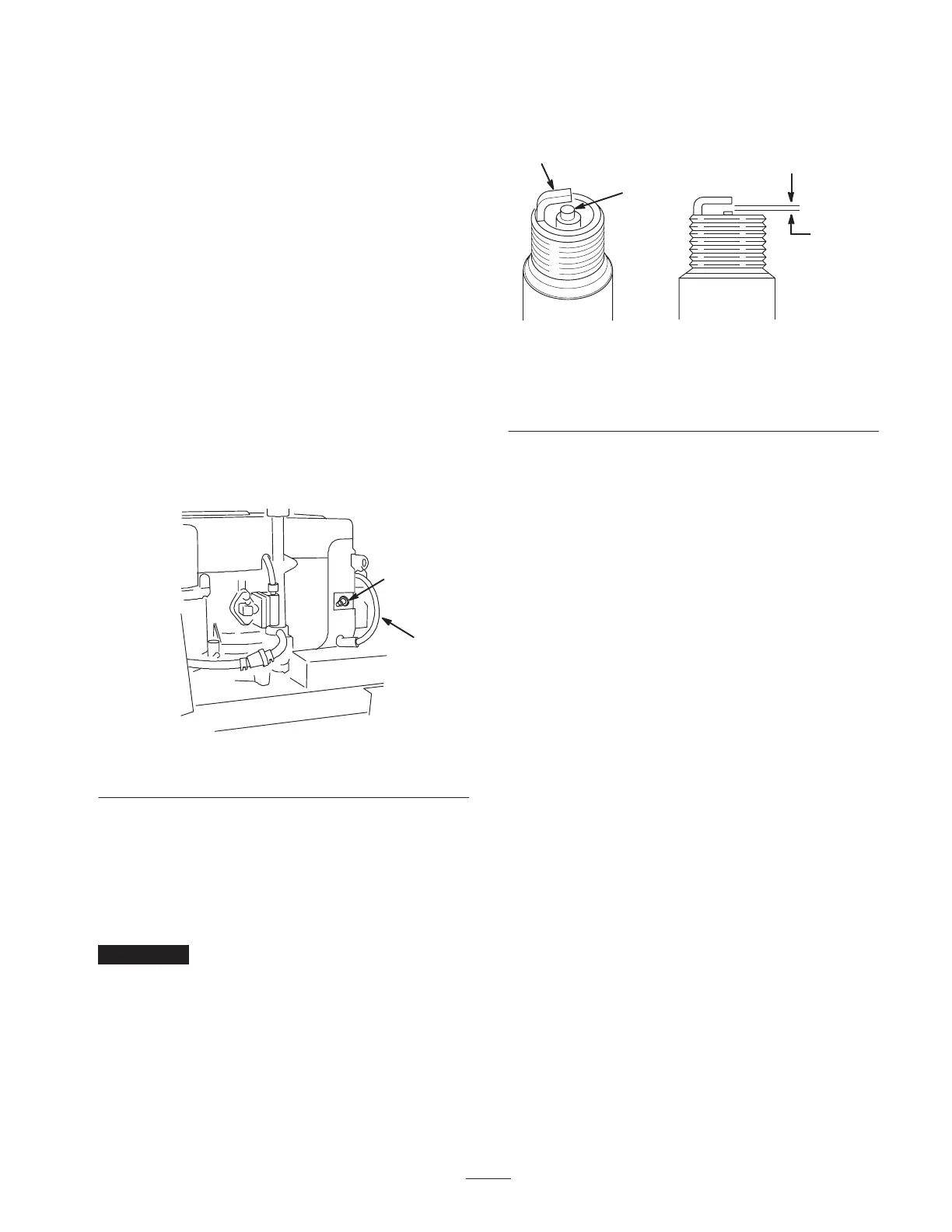

Figure 21
1. Spark plug wire 2. Spark plug
Checking the Spark Plug
1. Look at the center of the spark plug(s) (Fig. 22). If you
see light brown or gray on the insulator, the engine is
operating properly. A black coating on the insulator
usually means the air cleaner is dirty.
Important Never clean the spark plug(s). Always
replace the spark plug(s) when it has a black coating,
worn electrodes, an oily film, or cracks.
2. Check the gap between the center and side electrodes
(Fig. 22). Bend the side electrode (Fig. 22) if the gap is
not correct.
0.030 in.
(0.76 mm)
2
3
1
m–3215
Figure 22
1. Center electrode insulator
2. Side electrode
3. Air gap (not to scale)
Installing the Spark Plug(s)
1. Install the spark plug(s). Make sure that the air gap is
set correctly.
2. Tighten the spark plug(s) to 30 ft-lb (41 N⋅m).
3. Push the wire(s) onto the spark plug(s) (Fig. 21).
Greasing and Lubrication
Grease the machine after every 50 operating hours or
yearly, whichever occurs first. Grease more frequently
when operating conditions are extremely dusty or sandy.
Grease Type: General-purpose grease.
How to Grease
1. Disengage the power take off (PTO), set the parking
brake, and turn the ignition key to off. Remove the
ignition key.
2. Clean the grease fittings with a rag. Make sure to
scrape any paint off the front of the fitting(s).
3. Connect a grease gun to the fitting. Pump grease into
the fittings until grease begins to ooze out of the
bearings.
4. Wipe up any excess grease.
